Descrição
Why ESPLUS360 — The Technology Behind Real Results
Every detail is engineered to give your brand a competitive edge in the light therapy market.
6 Comprimentos de onda. One Panel. Unmatched Spectral Coverage.
Most panels on the market offer only 2–4 wavelengths.
ESPLUS360 delivers 6 — 630nm, 660nm, 810nm, 830nm, 850nm, and 1060nm — covering the full therapeutic window from superficial skin layers to deep tissue.
The inclusion of 1060nm sets ESPLUS360 apart:
it penetrates deeper than 850nm, reaching bone, joint, and visceral tissue that standard NIR panels simply cannot access.
For your brand, this means a product story no competitor can replicate.
Dual-Chip Architecture. Twice the Wavelengths, Compromisso Zero.
Cada um dos 72 LEDs contains 2 independent chips, with each chip emitting a different wavelength simultaneously.
This dual-chip dual-wave design means:
→ 6 wavelengths delivered from just 72 LEDs — no oversized board needed.
→ Higher optical density per square centimeter.
→ More uniform beam coverage across the treatment area.
It’s not about adding more LEDs. It’s about smarter LEDs.
110+ mW/cm² — Power That Delivers, Not Just Promises.
Irradiance is the single most important performance metric
in light therapy — and the one most often exaggerated.
ESPLUS360 delivers over 180mW/cm² at the panel surface,
verified by testing under standard conditions.
What this means for your customers:
→ Shorter treatment sessions (10–20 min vs. 30–45 min on weaker panels).
→ Deeper photon penetration for visible results.
→ A premium product that justifies a premium price point.
Your Brand. Your Interface. From Screen to Smartphone.
ESPLUS360 features a built-in 4.3-inch full-color
touchscreen for intuitive, on-device control — no remote needed.
Pair it with the companion APP (iOS & Android), and your customers get guided treatment programs right on their phones.
For OEM / White Label partners:
→ Custom boot logo & UI skin on the touchscreen.
→ APP branding with your logo, color scheme, and content.
→ Create exclusive treatment protocols unique to your brand.
Your product. Your ecosystem. We build it, you own it.
5 Channels. Unlimited Treatment Possibilities.
Unlike single-switch panels, ESPLUS360 gives independent
intensity control over 5 separate wavelength channels.
This means:
→ Skin rejuvenation mode: boost 630nm + 660nm, dim NIR.
→ Deep recovery mode: maximize 850nm + 1060nm.
→ Full spectrum mode: all channels at 100%.
→ Custom mode: any combination your brand wants to define.
You’re not selling a light panel.
You’re selling a programmable treatment platform.
Wireless Daisy Chain. No Limits. Scale as Big as Your Space.
One master panel syncs all connected units — same wavelength, same intensity, same timer.
Ideal for:
→ Spa & clinic installations of any size.
→ Sports recovery and physical therapy studios.
→ Setups that scale with your client’s business.
Start with one. Expand without limits.
See ESPLUS360 in Action
One Panel. Six Wavelengths. Endless Possibilities .
Projeto & Feature Overview
Unboxing | Conteúdo do pacote & Feature Overview
Built for Every Treatment Scenario
Help your clients see where ESPLUS360 fits.
At-Home Skin Rejuvenation
Boost 630nm + 660nm for collagen stimulation and skin tone improvement. Compact enough for daily home use.
Spa & Wellness Studios
Add red light therapy to your service menu. Touchscreen + APP makes staff training effortless.
Aesthetic Clinics
6 wavelengths including 1060nm for deeper tissue reach. FDA 510(K) cleared — ready for clinical environments.
Gym & Sports Recovery
Maximize 850nm + 1060nm for muscle and joint recovery. Wireless daisy chain to scale full-body setups.
From living rooms to medical clinics — ESPLUS360 adapts to every market your brand serves.
Full Specifications — ESPLUS360
All the numbers your team needs to make a decision.
| Modelo | ESPLUS360 |
|---|---|
| Poder nominal | 360C |
| Quantidade LED | 72 PCs (Dual-Chip Dual-Wave), 5W each |
| Comprimentos de onda | 630nm / 660nm / 810nm / 830nm / 850nm / 1060nm |
| Wavelength Channels | 5 independently dimmable channels for 6 comprimentos de onda |
| NIR profundo | 1060nm for deeper tissue penetration |
| Ângulo do feixe | 30° |
| Irradiância | ≥110 mW/cm² at 9 inches |
| Controlar | 4.3″ LCD HD Touch Screen |
| Pre-set Modes | 2 modos |
| APP Control | iOS & Android, free download |
| Resfriamento | Active fan cooling system |
| Housing Material | Aluminum alloy |
| Tensão de entrada | AC 100–240V, 50/60Hz |
| Dimensões do produto | L350.00*W230.00*H66.00mm |
| Package Dimensions | 260*480*300mm |
| Garantia | 5 Anos |
| Certificações | FDA 510(K) K250830 · FCC · CE · TGA · MDL · UKCA |

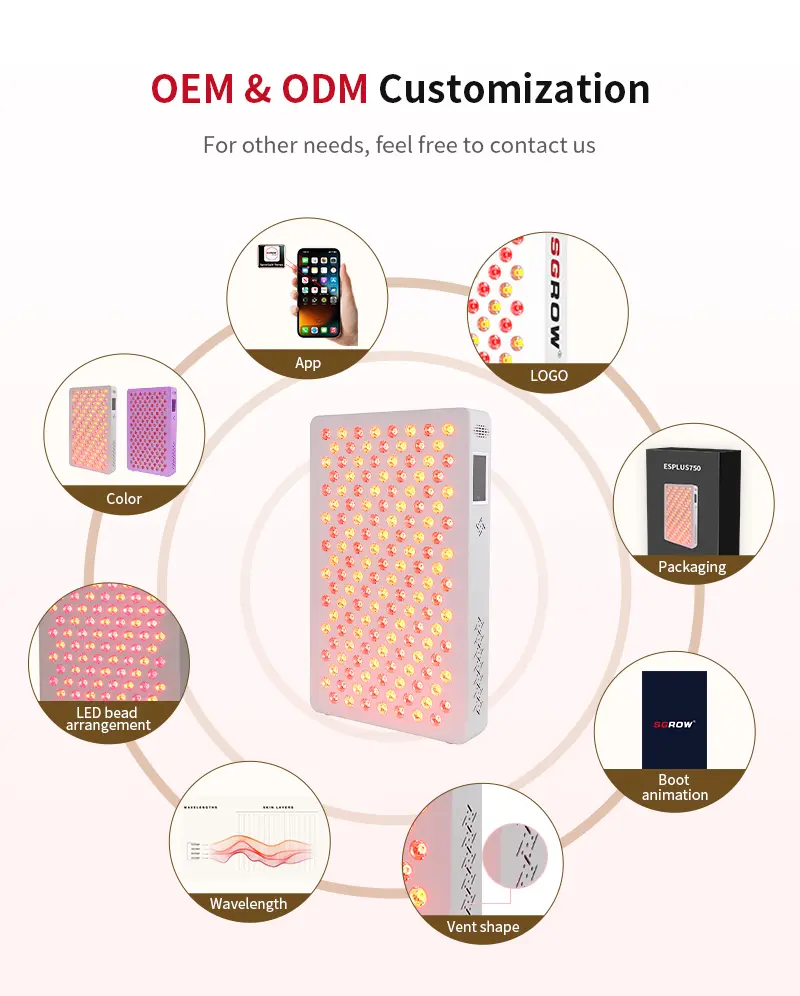

OEM & ODM Solutions Backed by Factory, R&D, and Quality Control
Logotipo
Your brand logo printed or engraved on the product surface.
Full visual identity alignment from panel to packaging.
App
White-label APP on iOS & Android.
Your brand name, icon, and color scheme — your clients never see ours.
Cor
Custom housing color and surface finish to match your brand identity and market positioning.
LED Bead Arrangement
Flexible LED layout configuration
to optimize irradiance distribution for different treatment areas.
Comprimento de onda
Adjust wavelength combinations across 6 bands (630/660/810/830/850/1060nm)
to suit your target therapy protocols.
Boot Animation
Branded startup screen animation displayed on the 4.3″ touchscreen at power-on. First impression, fully yours.
Embalagem
Custom retail or bulk packaging
with your artwork, inserts, and product documentation.
Shelf-ready for your sales channel.
Vent Shape
Customizable vent design on the housing — adjust shape and pattern for differentiated product appearance while maintaining airflow performance.
From Concept to Shelf-Ready Product
Etapa 1 → Consultation & Requirement Review
Etapa 2 → Proposal & Offer with Timeline and Costs
Etapa 3 → Concept to Visualization (ID Renderings)
Etapa 4 → Prototyping & Confirmation
Etapa 5 → Trial Production & Quality Validation
Etapa 6 → Mass Production & On-Schedule Delivery
- Factory Strength
20,000㎡ facility · 12 lines · 180,000+ units/month - R&D Capability
50+ engineers · APP/UI customization · optical & firmware support - Garantia de qualidade
ISO 13485 system · aging test · final inspection
Ready to Build Your Own Brand?
Why Source From Us — Not Just a Supplier, a Certified Manufacturing Partner
FDA 510K clearance certificate badge for Wakelife red light therapy panel K250830
FCC certified — meets U.S. electromagnetic interference standards.
CE marked — approved for distribution across the European Economic Area.
TGA listed — authorized for sale as a therapeutic device in Australia.
MDL obtained — meets medical device regulatory requirements.
UKCA marked — compliant with UK product safety regulations.
All certifications obtained under our own submissions — not borrowed, not shared, not expired.
OEM/ODM clients can leverage our existing compliance framework to accelerate your market entry.
Frequently Asked Questions — ESPLUS360
Key questions B2B buyers ask about this model before sampling.
What makes the ESPLUS360 different from standard red light panels?
3 core differentiators:
1. 6 Wavelengths with 1060nm as Standard
— 630nm, 660nm, 810nm, 830nm, 850nm, and 1060nm are all built in — not optional, not upgraded.
1060nm deep NIR penetrates further than 850nm for bone, deep muscle, and joint-level protocols.
Few manufacturers include this at panel level.
2. 5-Channel Independent Dimming
— Each wavelength group can be activated and intensity-adjusted independently.
Most competitors offer only full-spectrum on/off.
3. 4.3″ HD Touchscreen + APP Dual Control
— On-device touchscreen plus Bluetooth APP.
Both support white-label customization — your end customer sees only your brand.
These features position the ESPLUS360 as a clinical-grade device that justifies premium retail pricing.
What are the exact specifications?
– Modelo: ESPLUS360
– Quantidade LED: 72 PCs (dual-chip dual-wave, 5W each)
– Comprimentos de onda: 630nm, 660nm, 810nm, 830nm, 850nm, 1060nm
– Irradiância: ≥110 mW/cm² at 9 inches
– Ângulo do feixe: 30°
– Controlar: 4.3″ HD touchscreen + Bluetooth APP
– Escurecimento: 5-channel independent
– Tensão de entrada: AC100–240V
– Garantia: 5 years standard
Full spec sheet with irradiance-at-distance data available upon request.
Can the ESPLUS360 be white-labeled for my brand?
Sim. Customizable dimensions include:
– Logotipo: gravação a laser / silk printing / UV printing
– APLICATIVO: white-label with your brand name, icon, color scheme
– Boot animation: your brand intro on the 4.3″ touchscreen
– Wavelength mix: adjust the 6-wavelength configuration
– Preset treatment modes: create branded protocols
– Housing color: Pantone / RAL matching
– Embalagem: retail-ready box with your design
The touchscreen and APP are key white-label assets —
your end customer sees only your brand, never ours.
Which certifications does the ESPLUS360 hold?
Covered under:
FDA 510(K) K250830 · FCC · CE · TGA · MDL · UKCA
All certifications obtained under our own submissions.
OEM clients can leverage our existing compliance framework to accelerate your market entry
— especially for FDA and TGA pathways where documentation is extensive and time-consuming.
Who should sell the ESPLUS360 — and to whom?
Ideal B2B buyers:
– Brand owners building a premium red light therapy line
– Distributors seeking differentiated product with touchscreen + APLICATIVO + 1060nm deep NIR
– Clinics and wellness centers needing
multi-wavelength protocols per patient
End-user applications:
– Skin rejuvenation & antienvelhecimento (630nm + 660nm)
– Deep tissue & recuperação muscular (810nm + 830nm + 850nm)
– Bone & joint-level protocols (1060nm)
– Combined wavelength programs via touchscreen presets
The 5-channel system lets practitioners create individualized treatment plans
—a real differentiator for clinic operators and a strong upsell point for retail brands.
