Descrizione
What Makes the L03 Suitable for Full-Body Light Therapy?
The L03 combines a large 2085 × 800 superficie trattata mm, 2,680 LEDs and a flexible mat construction to support broad full-body light exposure in one setup.

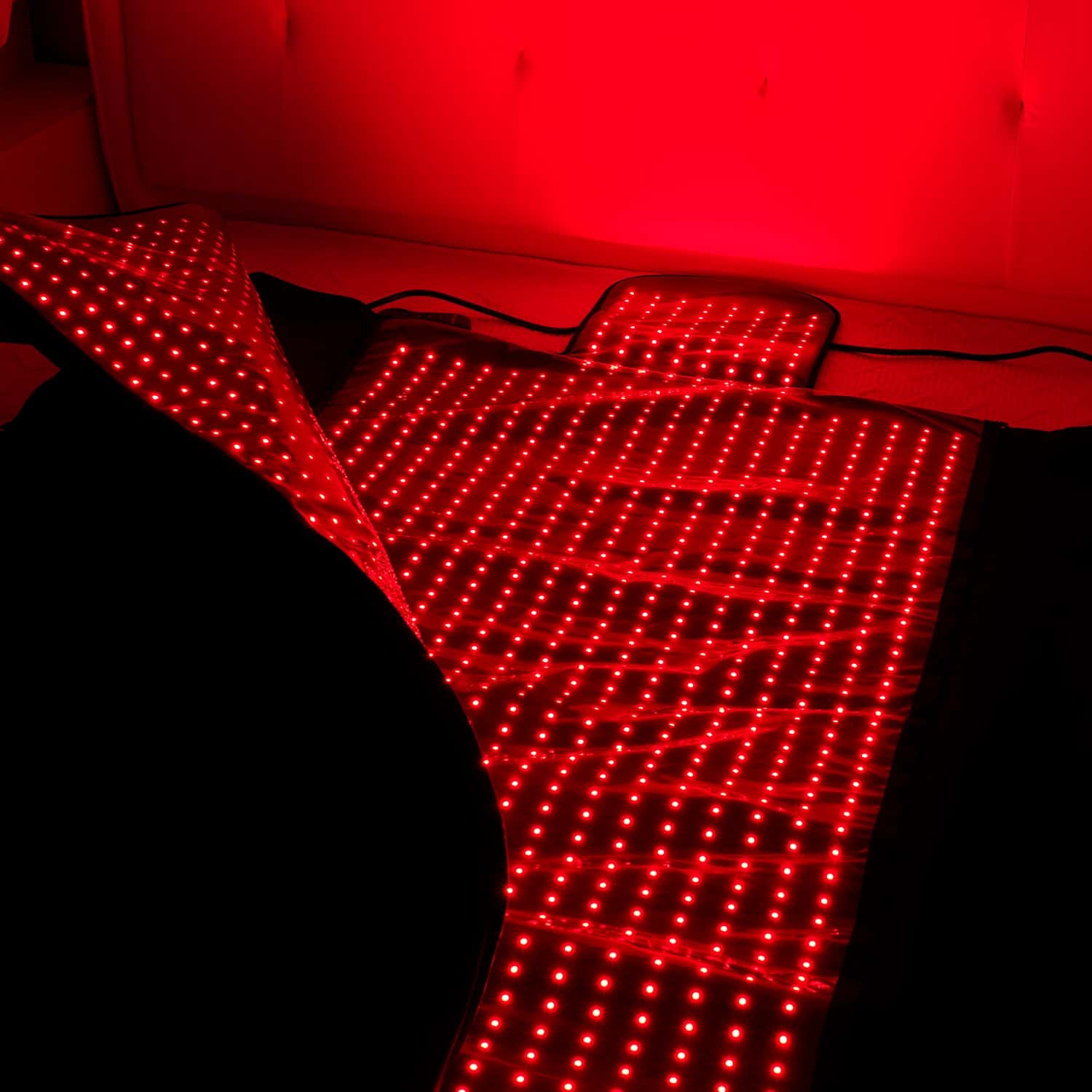

2,680 High-Density LEDs
A densely arranged LED array provides broad light coverage across the full-body surface.
2085 × 800 mm Full-Body Size
The extended mat format covers multiple body areas from the upper body through the legs.
80 mW/cm² Average Irradiance
Average irradiance reaches 80 mW/cm² at direct-contact distance under standard test conditions.

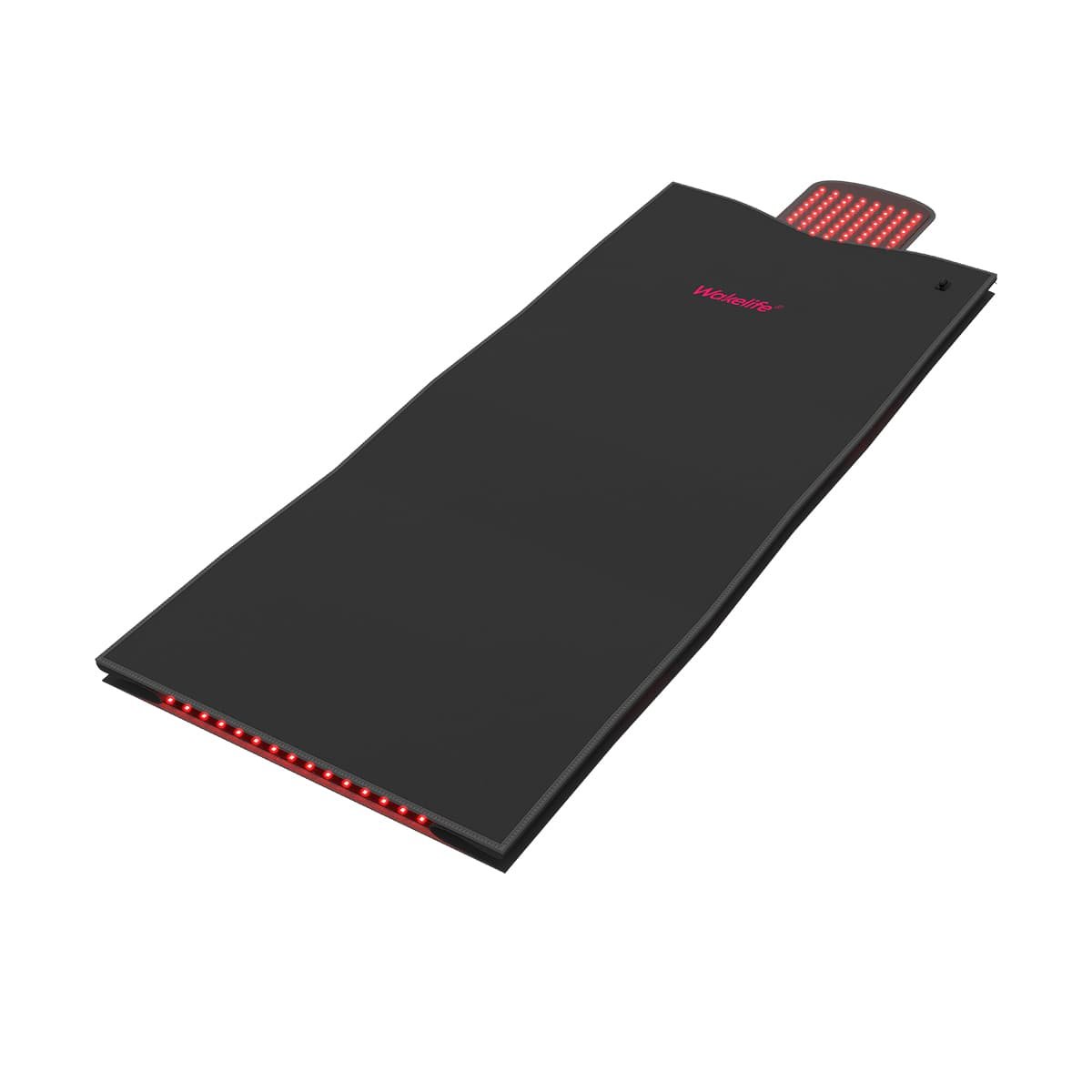

Flexible Mat Construction
OK fabric, SBR and TPU create a soft, flexible structure designed for comfortable flat-use sessions.
How Much of the Body Can the L03 Cover?
Con a 2085 × 800 mm treatment area, the L03 is designed to provide large-area light exposure across multiple body zones during a single session.
Coverage Areas
Collo Indietro Waist Hips Cosce Legs
Unlike smaller belts, wraps or targeted pads, the L03 provides a larger treatment platform for brands looking to expand into full-body red light therapy products.
Dimensioni del prodotto
Length: 2085 mm Larghezza: 800 mm Thickness: 8 mm Peso: Ca.. 8 kg
What Wavelengths Does the L03 Use?
The standard L03 combines 660nm red light and 850nm near-infrared light at a 1:2 Rapporto di lunghezza d'onda.
660nm Luce rossa
Visible red light for red light therapy and wellness applications.
850NM Luce vicina a infrarossi
Invisible near-infrared light for deeper light exposure applications.
Standard Wavelength Ratio
660nm : 850nm = 1 : 2
3 Selectable Light Modes
M1 — Red + Nir 660nm + 850nm
M2 — Red 660nm
M3 — NIR 850nm
Different wavelength configurations can be evaluated for OEM/ODM projects according to brand positioning and product requirements.
L03 Full-Body Red Light Therapy Mat Specifications
| Specifiche | L03 |
|---|---|
| Modello di prodotto | L03 |
| Tipo di prodotto | Full-Body Red Light Therapy Mat |
| Materiale | OK Fabric + SBR + TPU |
| Dimensione del prodotto | L2085 × W800 × H8 mm |
| Potenza nominale | 240W |
| Tensione di lavoro | DC 48V |
| Power Adapter | Incluso |
| Plug Type | Configured According to Destination Market |
| Quantità a LED | 2,680 LED |
| Tipo LED | 5050 Triple-Chip SMD LEDs |
| Lunghezze d'onda | 660nm + 850nm |
| Rapporto lunghezza d'onda | 660nm : 850nm = 1 : 2 |
| Modalità luce | Rosso + Nir / Rosso / Nir |
| Angolo trave | 120° |
| Irraggiamento | 80 mW/cm² Average at 0 Inch |
| Irradiance Test Mode | Rosso + Nir |
| Irradiance Test Brightness | 100% |
| Livelli di luminosità | 20% / 40% / 60% / 80% / 100% |
| Timer | 10 / 15 / 20 / 25 min |
| Display | Digital Display |
| Controllo della temperatura | ≤46°C Passive Limit; NTC Active Control Optional |
| Impulso | NO |
| Batteria | NO |
| Massage | NO |
| Heating | NO |
| Use Method | Lay Flat |
| Peso del prodotto | Ca.. 8 kg |
| Protection Rating | IP40 |
| Product Certifications | Ce / FCC / Rohs |
| Moq | 100 PC |
| Campione | Disponibile |
| Tempi di consegna del campione | Ca.. 5 Giorni |
| Tempi di consegna in blocco | 25–35 Days |
| Garanzia | 1 Anno |
Why Source the L03 from Wakelife?
Iso 13485 Quality Management
Manufacturing operates under a structured quality management system suitable for long-term product programs.
MDSAP Quality System
Supports a more systematic quality-management approach for customers operating across regulated international markets.
OEM / ODM Manufacturing
From private labeling to deeper optical and control-system customization.
Optical Product Development
Support for wavelength, Quantità a LED, LED layout and related light-source configuration development.
Brand-Ready Manufacturing
Logo, confezione, manual and controller-display customization support faster product-line development.
Repeat Production Support
Manufacturing and quality systems are designed to support repeat orders and long-term OEM programs.
L03 — Frequently Asked Questions
What is the irradiance of the L03?
The L03 provides an average irradiance of 80 mW/cm² measured at 0 inch in Red + NIR mode at 100% luminosità. Actual readings may vary depending on measurement position and test conditions.
How many LEDs does the L03 have?
The L03 uses 2,680 5050 triple-chip SMD LEDs distributed across its 2085 × 800 mm full-body surface.
Does the L03 have temperature control?
The standard L03 is designed with a passive temperature ceiling of ≤46°C under normal operating conditions. It does not include active temperature regulation as standard. NTC-based active temperature control can be added as an OEM/ODM option for customers who require real-time thermal monitoring and dynamic management.
What can be customized?
SÌ. Lunghezze d'onda, Configurazione LED, logo, confezione, user manual and controller display can all be customized. Scope and MOQ depend on the level of modification required.
