Why ESPLUS5400 Is the Right Flagship for Your Brand
Full 6-Wavelength Spectrum Including 1060nm Deep NIR
ESPLUS5400 combines six clinically-referenced wavelengths in one flagship panel: 630nm + 660nm red light for skin and collagen, 810nm + 830nm + 850nm near-infrared for deep tissue, plus the premium 1060nm infrared for the deepest penetration. This six-wavelength configuration covers surface to hypodermis — far beyond the 660nm/850nm dual-wavelength panels still dominating the market.
B2B Positioning Advantage: With six wavelengths including the rare 1060nm, ESPLUS5400 lets your brand claim the “true full-spectrum flagship” position — justifying premium retail pricing and outperforming 90% of competitor panels in spec-sheet comparisons across Amazon listings, distributor catalogs, and retail buyer pitches.

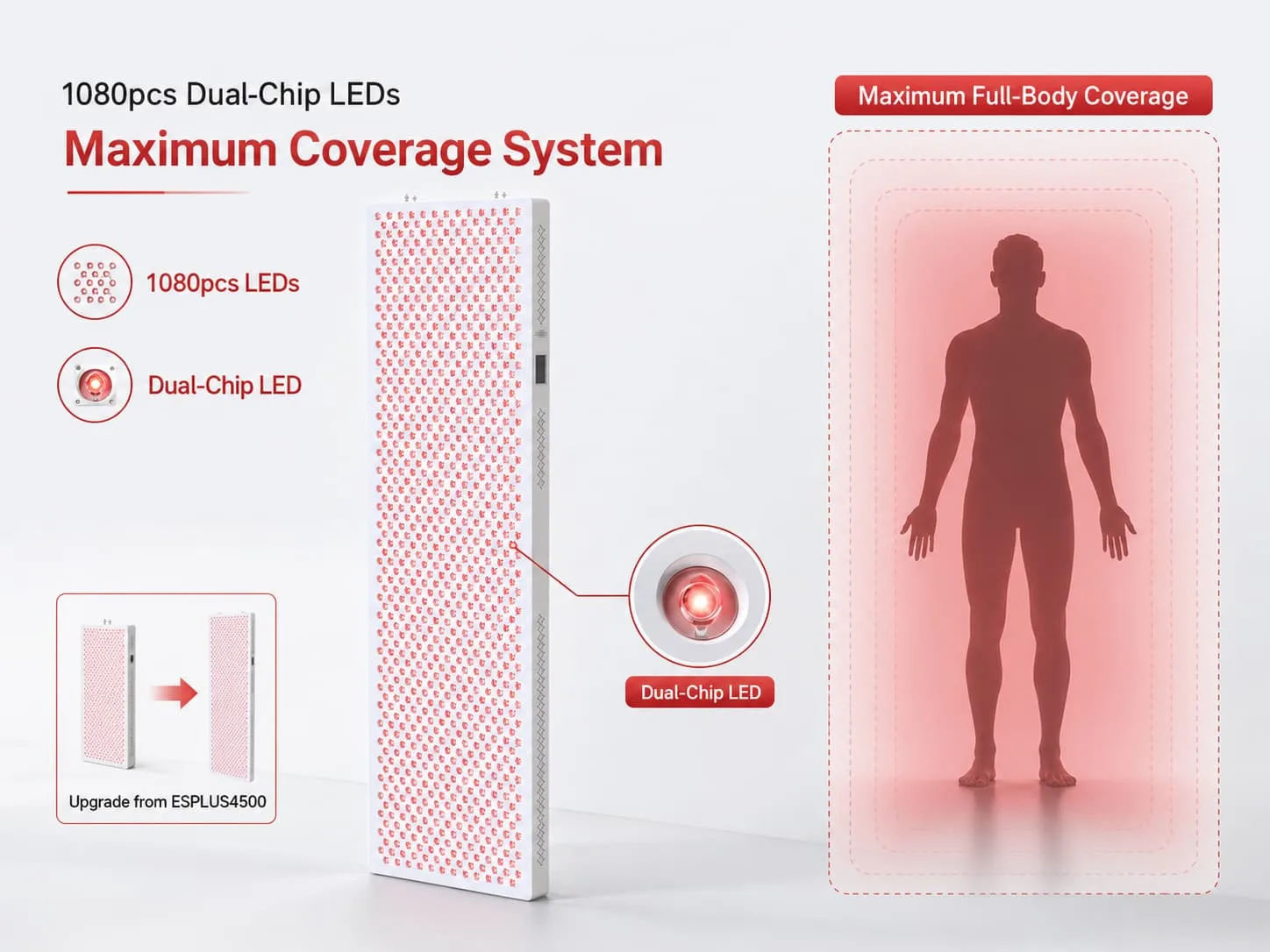

1,080pcs Dual-Chip LEDs — Largest in the ESPLUS Lineup
ESPLUS5400 is built with 1,080 Dual-Color + Dual-Chip LEDs in a 1850×540×65mm body — the largest panel across the entire ESPLUS family. Compared with ESPLUS4500 (900PC), ESPLUS1500 (300PC), ESPLUS750 (150PC), and ESPLUS360 (72PC), IL 5400 anchors the very top of the product line, designed for true full-body coverage in a single session.
B2B Positioning Advantage: This gives your catalog a clean “Bene / Meglio / Best / Flagship” ladder. ESPLUS5400 sits at the top tier, lifts average order value, and gives end-customers an aspirational upgrade target from the smaller models — pulling revenue up across your entire panel range.
Industry-Leading 260 mW/cm² Irradiance at 3-Inch Distance

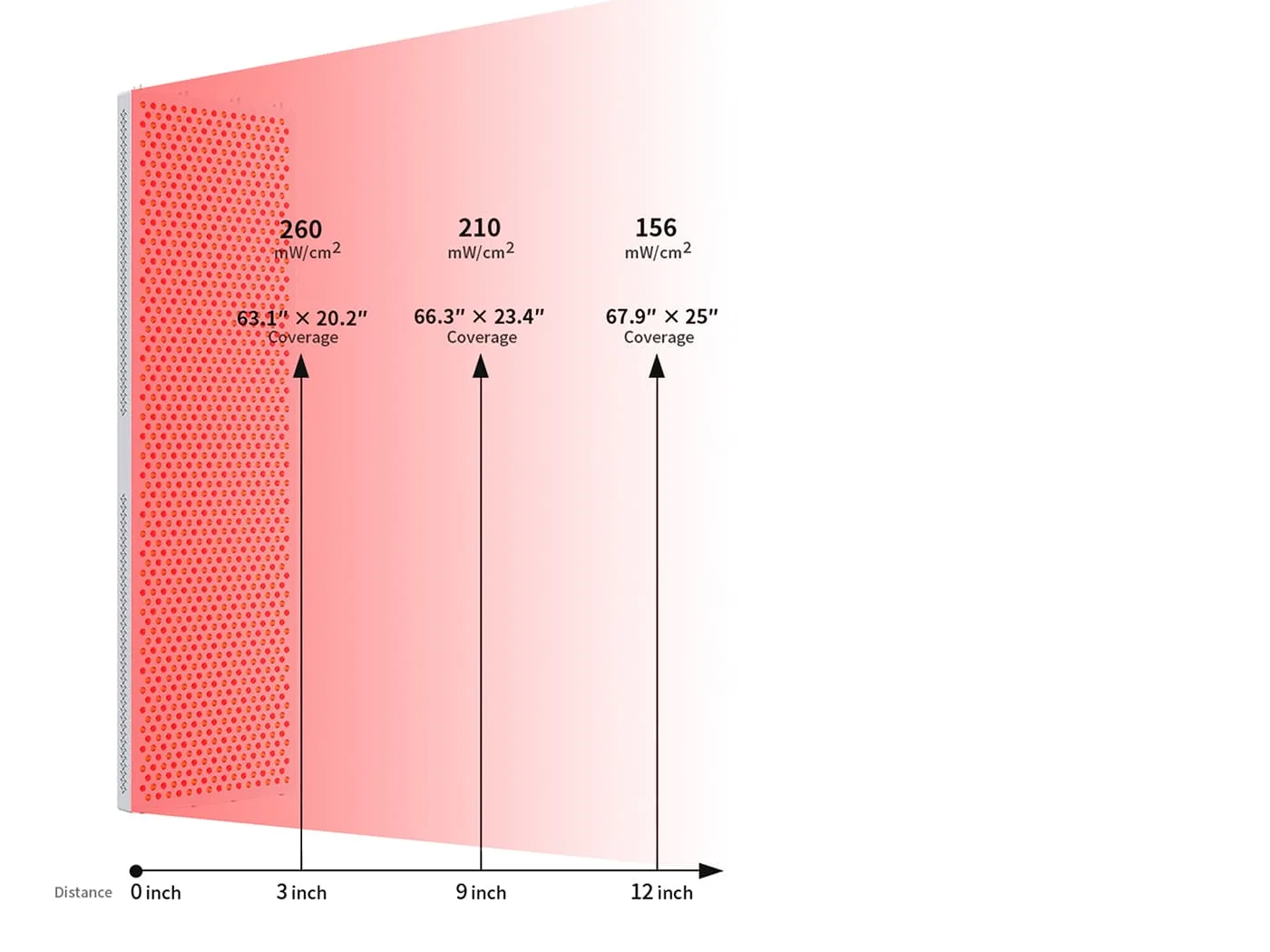

Per the official irradiance & coverage chart, ESPLUS5400 delivers 260 mW/cm² @ 3-inch, 210 mW/cm² @ 9-inch, E 156 mW/cm² @ 12-inch, with full-body coverage expanding to 67.9″ × 25″ at the farthest distance. These figures place ESPLUS5400 at the very top of the full-spectrum LED panel category for both close-range intensity and full-body reach.
B2B Positioning Advantage: Hard data wins spec-sheet comparison battles. When buyers compare mW/cm² on Amazon, distributor catalogs, or RFP procurement, ESPLUS5400 consistently ranks in the top tier — a decisive advantage when targeting premium home wellness, high-end SPA rooms, recovery clinics, and professional procurement channels.
Triple Smart Control: App + Touch Screen + Remote
ESPLUS5400 offers three control methods in one device: a built-in LCD touch screen for direct on-panel operation, a wireless telecomando for hands-free use during sessions, e il Wakelife Light Therapy mobile app (iOS/Android) for advanced presets, custom mode saving, E daisy-chain control of multiple panels simultaneously — covering every user scenario from quick start to professional multi-unit setups.
B2B Positioning Advantage: Triple control = zero learning curve for any user demographic. Tech-savvy buyers love the app, older users prefer the remote, professional clinics use the touch screen. One product satisfies three buyer personas — dramatically expanding your addressable market without splitting SKUs or inventory.
5-Channel Independent Dimming with Adjustable Pulse Frequency
ESPLUS5400 supports 5-oscuramento del canale (633 / 660 / 830 / 850 / 810+1060) combined with pulse frequency adjustable from 1Hz to 1000Hz. Users can run 4 modalità preimpostate — Full Body, Sollievo dal dolore, Sonno, Skin Care — or save 2 modalità personalizzate via the Wakelife Light Therapy app, enabling fully tailored protocols for any treatment goal in a single device.
B2B Positioning Advantage: 5-channel dimming transforms one SKU into multiple marketing stories — beauty (red-dominant), recupero (NIR-dominant), benessere (sonno), and contouring (1060nm-featured). One product → four marketing angles → broader channel reach for your distributors and brand partners.
Industry-Leading 5-Year Warranty Backed by Full Brand Support
ESPLUS5400 ships with an official 5-year warranty covering all parts within the warranty period — significantly exceeding the typical 1–3 year warranty offered by competitor home-use panels. The warranty is backed by Wakelife’s manufacturer-direct support, ensuring long-term reliability for both home and commercial buyers.
B2B Positioning Advantage: A 5-year warranty is a direct sales-closing tool at the $3,500+ fascia di prezzo. It eliminates buyer hesitation, justifies premium pricing, and dramatically reduces post-sale support load on your distribution channel — converting more leads into paid orders without lowering your margin.
Technical Specifications for Import & Compliance Review
| Specifiche | ESPLUS5400 |
|---|---|
| Quantità a LED | 1,080 PC (Dual Color + Dual Chip Architecture) |
| Lunghezze d'onda | 630nm · 660nm · 810nm · 830nm · 850nm · 1060nm |
| Peak Irradiance @ 3″ | 260 MW/cm² |
| Irradiance @ 9″ | 210 MW/cm² |
| Irradiance @ 12″ | 156 MW/cm² |
| Coverage @ 3″ / 9″ / 12″ | 63.1″×20.2″ / 66.3″×23.4″ / 67.9″×25.0″ |
| Angolo trave | 30° |
| Tensione di lavoro | 100–240v AC (Universal Compatible) |

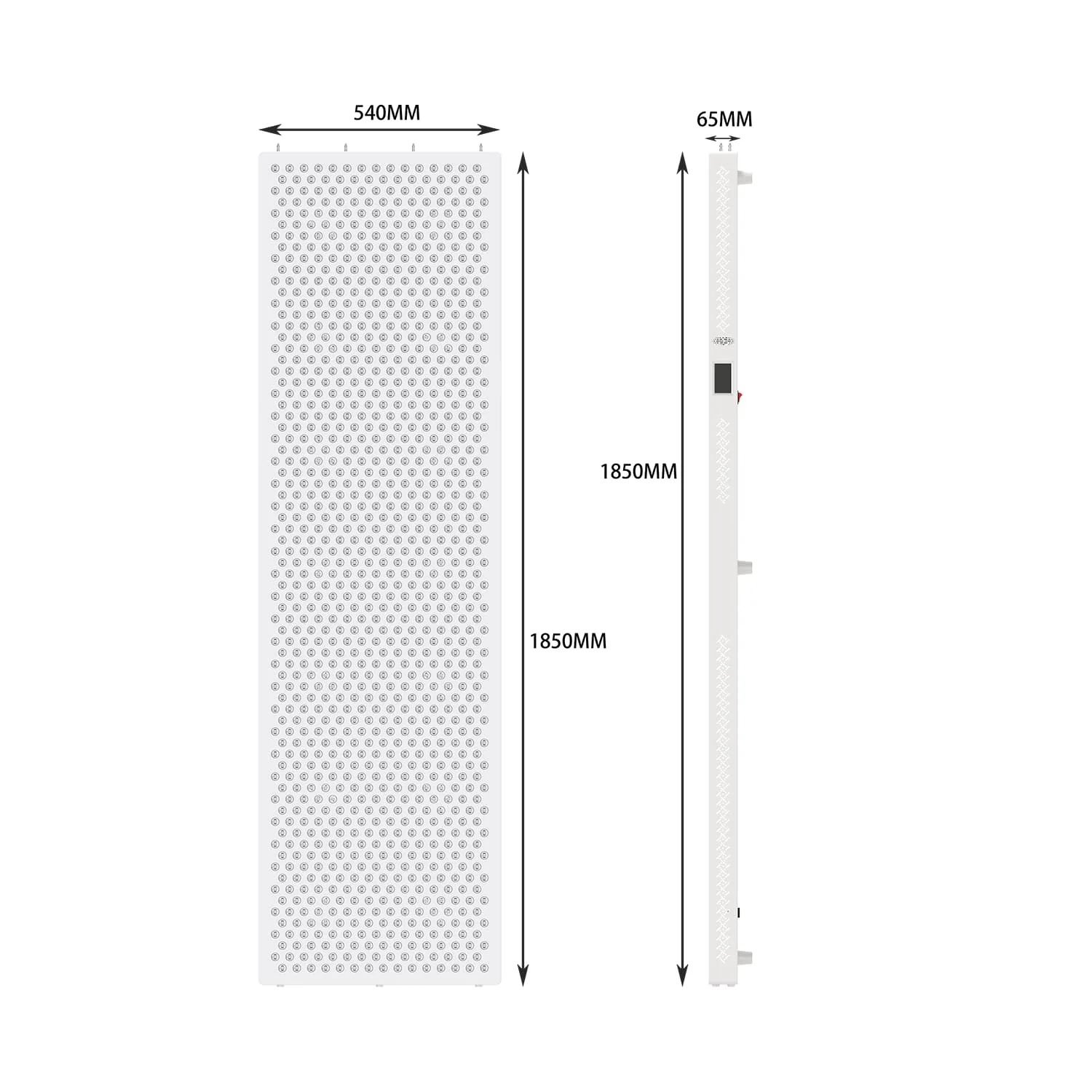

| Dimensioni | L1850 × W540 × H65 mm |
| Peso | 32 kg / 70.5 lbs |
| Sistema di controllo | Touchscreen + Bluetooth App + Remote Control |
| Mobile App | WAKELIFE Light Therapy (iOS / Androide) |
| Preset Treatment Modes | Full Body · Pain Relief · Sleep · Skin Care |
| Modalità personalizzate | 2 user-defined (wavelength · brightness · pulse · timer) |
| Pulse Frequency | 1–1000Hz (custom mode) |
| Timer Range | 5–30 minuti (custom mode) |
| Daisy-Chain Function | Multi-Unit Synchronized Connection |
| Certificazioni | FDA 510(K) K250830 · CE · FCC · RoHS · ISO 13485 |
| Garanzia | 5 Anni (commercial use covered) |
| Best Application | Full-Body Treatment · Premium Wellness Centers · Medical Spas |
ESPLUS5400 Standard Package & Accessori
For wholesale buyers, distributori, e proprietari di marchi, shipping cost is an important part of product evaluation. We provide complete packaging and logistics information to help you estimate air freight, trasporto marittimo, warehousing, and fulfillment costs more efficiently.
The standard ESPLUS5400 package includes the flagship full-spectrum device and all essential accessories required for setup, daily operation, E multi-panel daisy-chain installation.
Standard Package Includes
- ESPLUS5400 LED Therapy Light (Flagship · 1,080pcs Dual-Chip LEDs)
- Power Cord
- Connecting Power Cord
- Eye Goggles
- Door Hanger
- Adjust Pulley System
- Hanging Cable with Setscrew
- Remote Control
- Manuale dell'utente

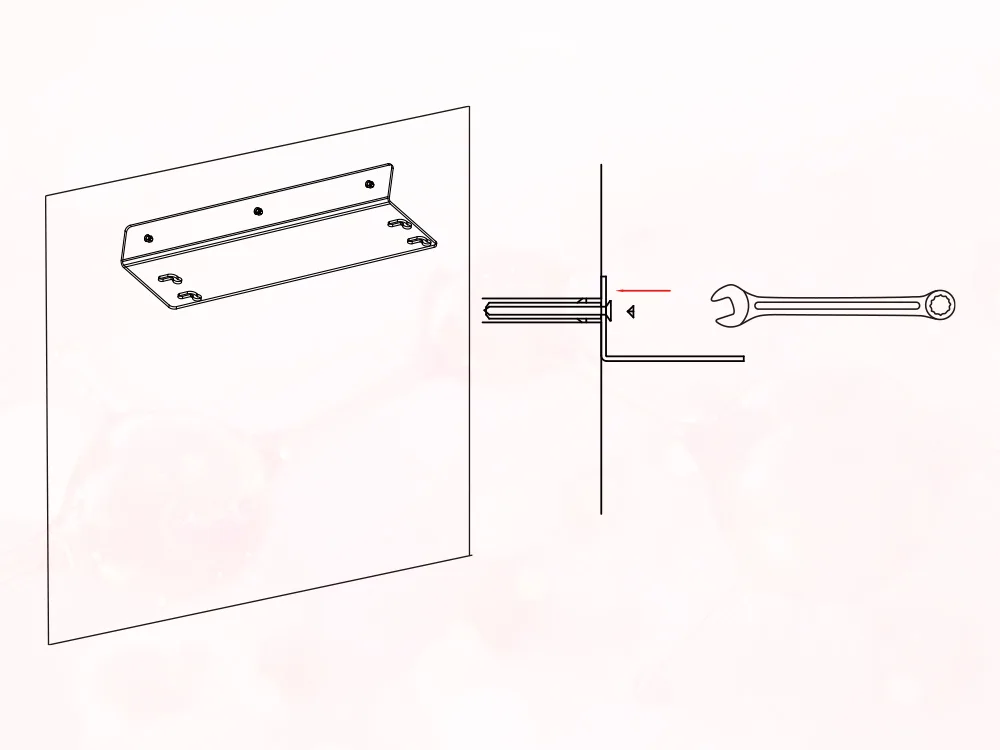

ESPLUS5400 Wall Mounting Bracket Instruction
Please make sure your wall load capacity: over 30KG / 66LBS before installatio
1.Drill holes in the wall as the size
2.Drive the gray plastic case into the hole, twist the screw in and leave 4mm away from the wall
3.Hang up the wall bracketand tighten the screws

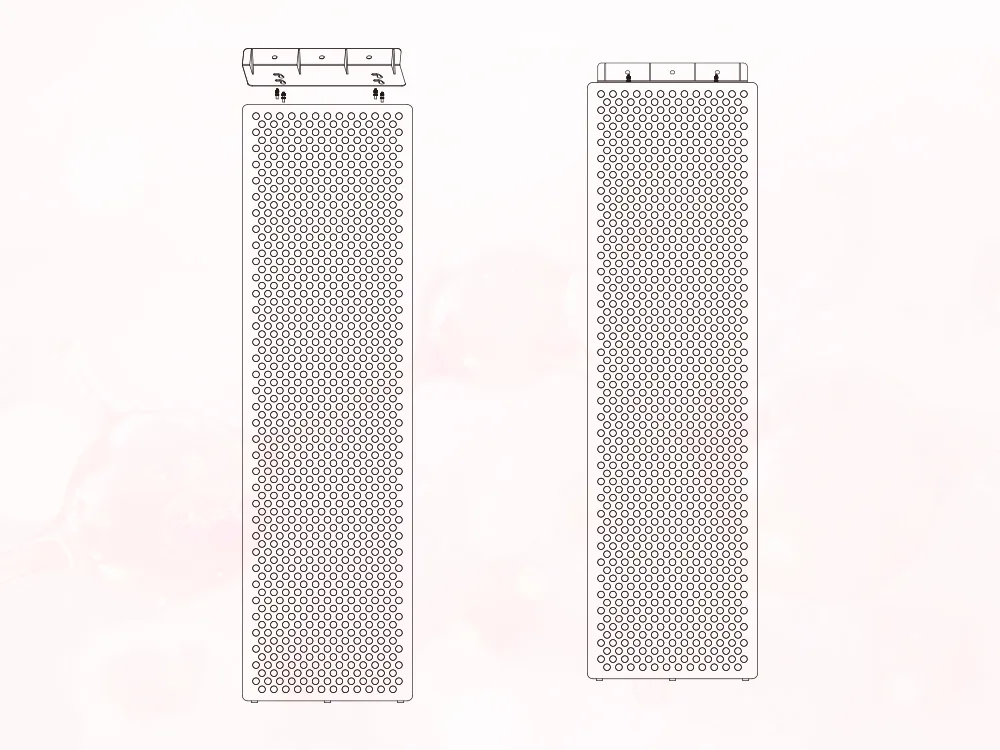

4.Hang the light on the bracket:
Build Your Own Brand on the ESPLUS5400 Platform (OEM / ODM)
For brands that want more than a standard wholesale relationship, ESPLUS5400 was engineered from the ground up as an OEM-ready platform. Whether you are looking to add a simple logo to a proven device, develop branded packaging that elevates your retail presence, or co-develop a fully customized flagship with proprietary wavelength configurations and a branded mobile app — Wakelife operates as your end-to-end manufacturing and R&D partner under one roof.
Our customization capability is supported by 50+ interno R&Ingegneri D. spanning optical design, embedded firmware development, mobile app development, mechanical engineering, and regulatory affairs. Every customization request is evaluated by a structured engineering review process — not handled through trial-and-error — which means timelines are predictable, costs are transparent, and the final product performs as specified the first time.
Customization starts at MOQ 10 for private label and MOQ 50 for full OEM development, giving brands at every stage a realistic path forward without prohibitive minimum commitments.
Branding Layer
Make it unmistakably yours
- Custom logo (laser-engraved, silk-print, or metal badge)
- Custom retail packaging (full-color printed gift box)
- Custom user manual & quick-start guide
- Custom warranty card & branded inserts
- Branded protective eyewear & power cord sleeves
- Multi-language manuals
Hardware Layer
Engineered around your design vision
- Custom housing color & Pantone matching
- Custom faceplate finish (matte / glossy / textured)
- Custom vent pattern & bracket design
- Custom control panel layout & telecomando
- Region-specific power cables (NOI / Unione Europea / Regno Unito / Au / JP)
- Custom floor stand or wall-mount bracket
Optical Layer
Differentiate at the LED level (Moq 50+)
- Combinazioni di lunghezze d'onda personalizzate (630 / 660 / 810 / 830 / 850 / 940 / 1060nm)
- Custom LED count & total irradiance output
- Custom panel size — full ODM tooling supported
- Custom pulse algorithms & preset treatment modes
- Bespoke PCB design for defensible technical IP
Software Layer
Build a connected brand ecosystem
- Branded Bluetooth app (iOS + Androide, your developer account)
- Custom app UI theme, splash screen & brand identity
- Custom preset treatment modes (PER ESEMPIO., “[Il tuo marchio] Recovery Mode”)
- Your brand name embedded in device firmware
- Multi-device pairing (pannelli + maschere + belts under one app)
Built in a Certified Medical-Grade Manufacturing Facility
ESPLUS5400 is produced in our Shenzhen manufacturing complex — a 20,000 m² ISO 13485-certified facility con 12 dedicated production lines e un monthly capacity exceeding 180,000 unità across our LED light therapy product portfolio. Every unit is assembled in cleanroom-controlled conditions by trained technicians, subjected to 100% aging burn-in testing, and traceable to its production batch through our digital quality management system.
Manufacturing Capability Snapshot:
- 🏭 20,000 mq Iso 13485 Certified Facility (2 factories, Shenzhen)
- 📊 12 Linee di produzione · 180,000+ Capacità mensile delle unità
- 🔬 50+ In-House R&D Engineers (optical · firmware · regulatory)
- 🌍 Scelto da Beauty & Marchi del benessere in 100+ Paesi
- 📜 Patent Portfolio of validated optical and mechanical designs
Top Questions from Wholesale & OEM Partners
What is the MOQ for ESPLUS5400?
MOQ starts from 10 unità for standard wholesale orders. Private label customization (logo on device + branded outer box) is available from 10–50 units. Full OEM customization (custom housing, lunghezza d'onda, app, confezione) starts at 50 units and above. We deliberately keep entry MOQs low so partners can validate market demand before scaling to OEM volumes.
What's the FOB price and what payment terms do you accept?
Pricing is disclosed via direct quotation to protect our distribution partners’ downstream margins. We accept T/T (30% deposit + 70% balance before shipment), L/C at sight, E Western Union or PayPal for sample orders. Trade terms supported include EXW, FOB Shenzhen, CIF, and DDP.
What certifications do you hold? Can I sell on Amazon and in regulated markets?
SÌ. ESPLUS5400 holds FDA 510(K) K250830, Ce, FCC, Rohs, Elenco TGA, and Canadian MDL documentazione. Manufacturing is dual-certified to Iso 13485 e MDSAP, meeting US FDA, TGA australiana, and Health Canada quality standards. All certificates are verifiable and provided to wholesale partners upon order confirmation. You can sell on Amazon, in medical spas, and through regulated retail channels in over 100 Paesi.
What's the lead time for samples and bulk orders?
Sample units are typically prepared within 7–14 giorni (standard models often ship from ready stock). Standard wholesale orders (10–50 units) ship within 20–35 giorni. Private label orders typically take 35–45 days. Full OEM orders run 60–90 giorni depending on customization scope and tooling requirements.
Do you support full OEM/ODM and exclusive distribution rights?
SÌ. We offer end-to-end OEM/ODM customization covering hardware, firmware, mobile app, confezione, and regulatory co-filing — supported by 50+ interno R&Ingegneri D.. Exclusive territorial distribution rights are available for partners committing to 1,000+ units annually with a mutually agreed market development plan.
Discover the Right ESPLUS Panel for Your Market
Modello |
ESPLUS360 |
ESPLUS750 |
ESPLUS1500 |
ESPLUS4500 |
ESPLUS5400 |
|---|---|---|---|---|---|
| Quantità a LED | 72 PC | 150 PC | 300 PC | 900 PC | 1080 PC |
| Chip a LED | Dual-core dual-wave, 5W ciascuno | ||||
| Lunghezza d'onda | 630nm(Rosso), 660nm(Rosso), 810nm(Nir), 830nm(Nir), 850nm(Nir), 1060nm(Nir) | ||||
| Angolo trave | 30 Gradi | ||||
| Irraggiamento | 130+ mw/cm² | 145+ mw/cm² | 170+ mw/cm² | 200+ mw/cm² | 220+ mw/cm² |
| Dimensione (MM) | 350*230*66 | 480*300*66 | 920*300*66 | 1550*540*66 | 1850*540*66 |
| Frequency of use | Daily | ||||
| Applicable Scenario | Casa, SPA, Salone, Clinica, Hospital and so on | ||||
