Is the BE405 Suitable for Your Product Line?
The BE405 is a flexible, wrap-around LED therapy belt for B2B buyers seeking a body-area light device rather than a rigid panel format. It can be supplied for wholesale programs, private-label launches, and OEM/ODM projects.
Suitable Buyers
Who this product fits: Brands, Händler, and private-label buyers looking for a flexible, wearable LED format — rather than a rigid panel — for body-area applications. It works as an at-home LED light-care product or a portable alternative to a fixed panel. Typical channels include D2C wellness, clinic retail, Amazonas, and professional beauty supply.
Who it doesn’t fit: Brands requiring a fully waterproof device for wet environments, a built-in rechargeable battery (the BE405 uses an external power source — DC adapter included, user-supplied power bank compatible), or a medical-device classification without additional regulatory work.
The BE405 is not presented as a diagnosis, Behandlung, Heilung, or prevention claim for any disease. Market-facing claims, Etiketten, and intended-use wording must be reviewed for the target market and the final approved configuration.
Core Product Configuration
405 Triple-Chip LED Packages

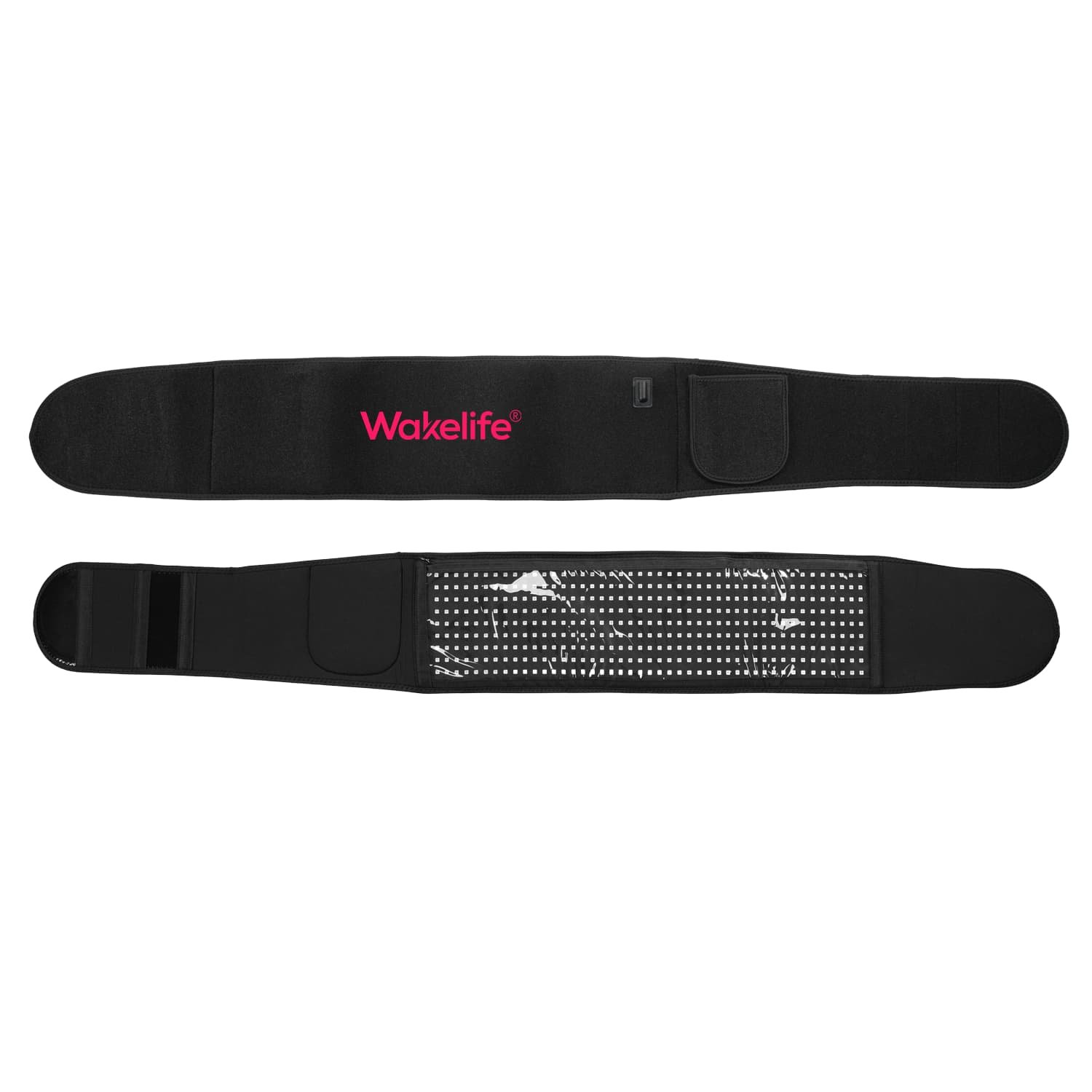

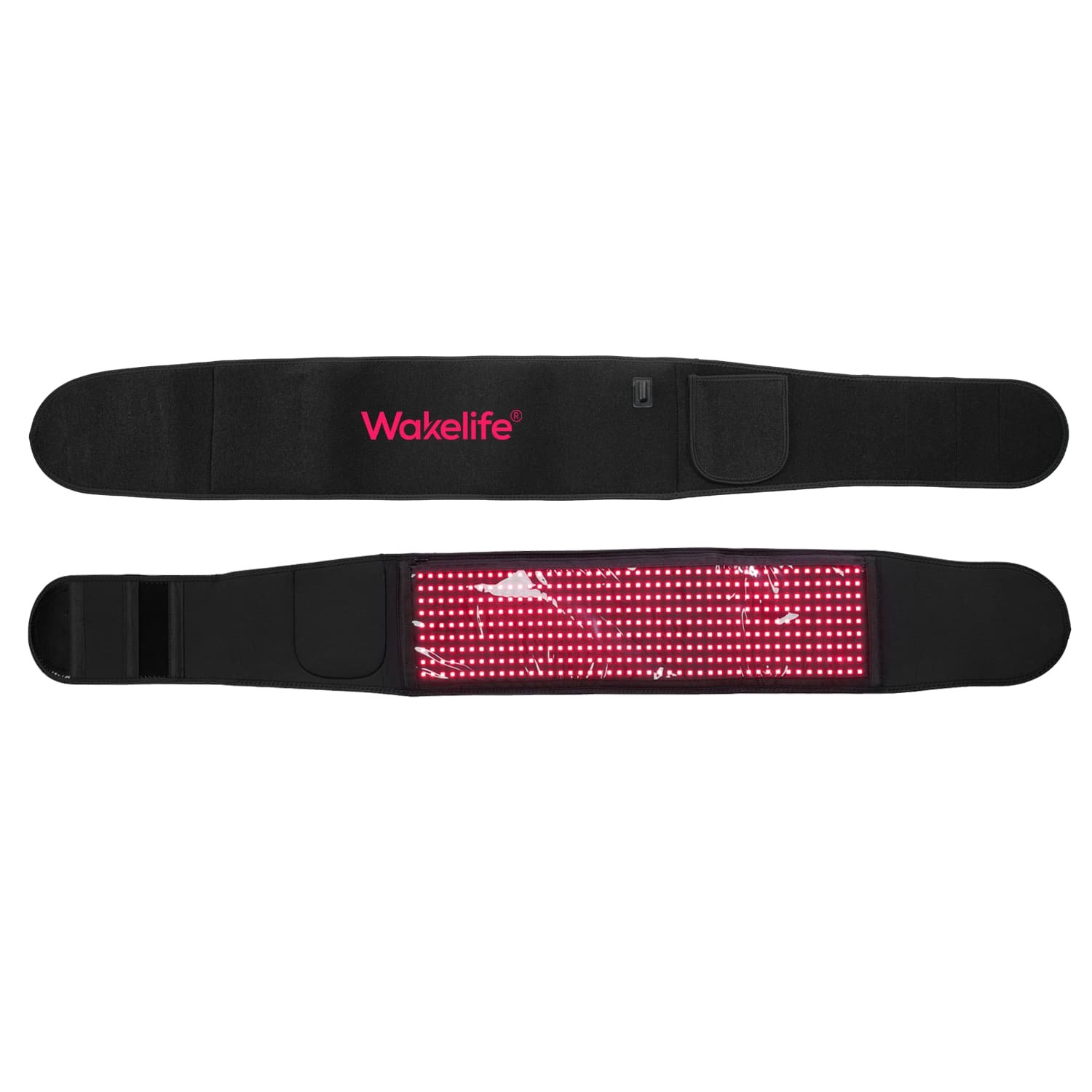

The BE405 uses 405 pieces of 5050 triple-chip SMD LED packages across its elongated light-emitting area. The flexible construction provides a wrap-around format without requiring a rigid panel enclosure.
660 nm Red and 850 nm Nahinfrarotlicht
- 660 nm visible red light
- 850 nm near-infrared light
Drei Lichtmodi
- M1: Rot + Nir
- M2: Rot
- M3: Nir
Because 850 nm is near-infrared, the LEDs can appear dim or nearly invisible in NIR-only mode. This is a visibility characteristic, not an indication of output performance.
Five Brightness Levels and Timer
- Helligkeit: 20% / 40% / 60% / 80% / 100%
- Timer: 1-20 Minuten
- Adjustment interval: 1 Minute
Flexible Body-Area Format
The belt measures 1300 x 180 x 4 mm and uses hook-and-loop fastening. Its physical format can be positioned around areas such as the lower back, Taille, Abdomen, Schulter, upper arm, thigh, Knie, or calf, subject to the supplied user instructions.
Use-area illustrations should describe physical placement only. They should not imply treatment of pain, injuries, Entzündung, Arthritis, or any other medical condition unless the exact product, Markt, and claim are separately supported and approved.

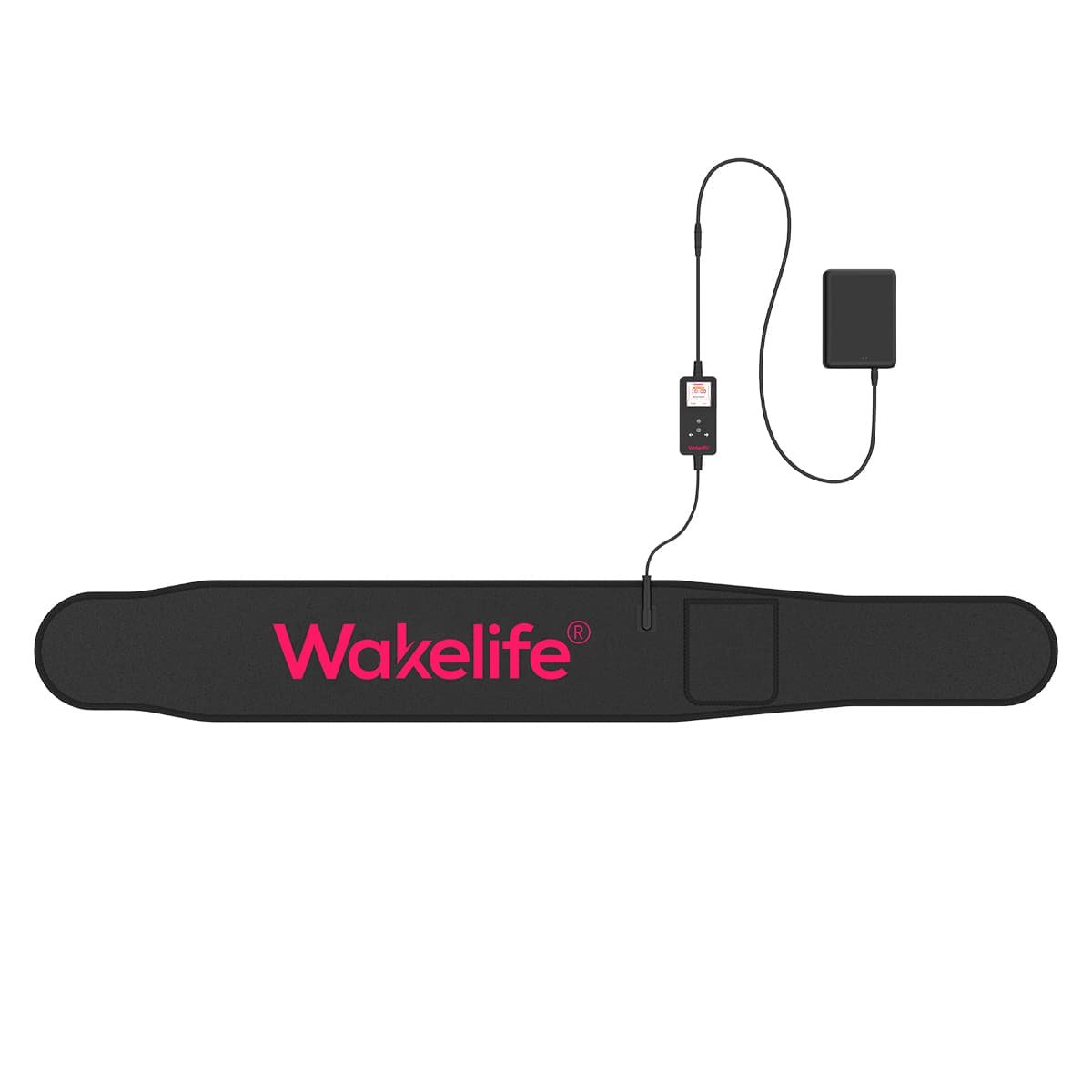

LCD Controller
The LCD controller provides visible access to the main operating settings:
| Funktion | Available setting |
|---|---|
| Lichtmodus | R+NIR (660+850nm) / Rot (660nm) / Nir (850nm) |
| Helligkeit | 20% / 40% / 60% / 80% / 100% |
| Timer | 1-20 Minuten |
| Timer interval | 1 Minute |
| Anzeige | LCD |
The public page should describe available functions rather than unverified button-count or button-layout details.
Sicherheit, EMC, and Quality Documentation
UL/cUL Safety Documentation for BE405
BE405 is included in the LED Therapy Belt model range covered by UL/cUL mark authorization unter UL-Datei-Nr. E545599. The covered product family includes BE105, BE120, BE150, BE315, and BE405.
Certification status applies to the approved model and configuration. Changes to the power adapter, Regler, Powerbank, LED board, wiring, rated voltage or current, structural materials, Anschlüsse, or cables require a certification-scope review before any safety claim or mark is used.
Controlled certification documents are available to qualified B2B buyers upon request. UL/cUL product-safety documentation does not itself establish market authorization, medical intended use, or clinical effectiveness.

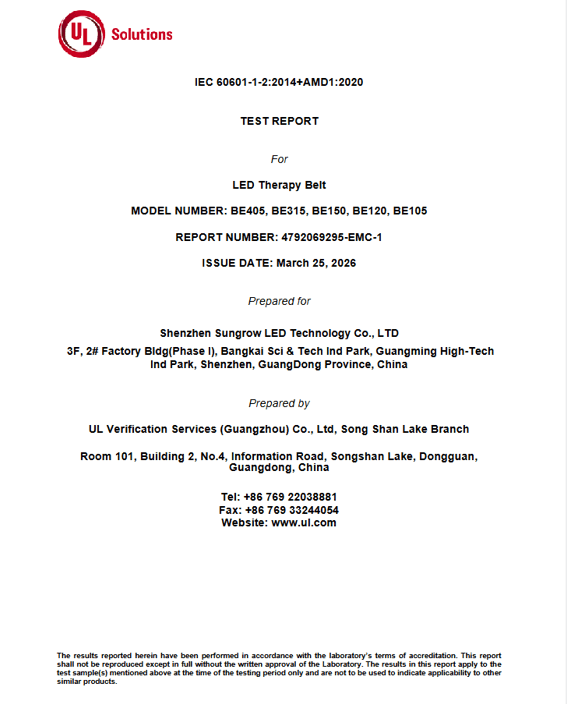

EMC Test Report
A UL Verification Services test report, Report No. 4792069295-EMC-1, lists BE405 with the LED Therapy Belt model family and is issued to Shenzhen Sungrow LED Technology Co., Ltd. The report is dated Marsch 25, 2026 and is evaluated to IEC 60601-1-2:2014 + AMD1:2020.
The report records PASS results for the evaluated applicable emission and immunity items, with some items marked not applicable. It is EMC test evidence for the listed model family; it is not a standalone market authorization or a substitute for the UL/cUL certification scope above.
Abschnitt Schlussexemplar
Ein Handheld-Gerät. Vier Funktionen zur Kopfhautpflege. Mehr Differenzierung für Ihre Produktlinie.
Manufacturer Quality Management System
BE405 is manufactured by Shenzhen Sungrow LED Technology Co., Ltd. The factory’s quality management system is certified by BSI to ISO 13485:2016 and EN ISO 13485 unter Certificate MD 800872. BSI also lists MDSAP Certificate MDSAP 800873 for the same manufacturing site.
These are factory-level quality-management credentials. They support controlled design, Herstellung, and distribution processes; they are not a product certificate or market authorization for BE405.
Public verification: BSI lists both certificates for the Shenzhen manufacturing site, with an expiry date of May 13, 2027. Certificate scope and current status should be verified before use in a buyer’s regulatory file.
BE405 Technical Specifications
| Spezifikation | Details |
|---|---|
| Modell | BE405 |
| Produkttyp | Wearable Red & NIR-LED-Therapiegürtel |
| Material | OK Fabric + SBR + TPU |
| Product size | L1300 x W180 x H4 mm |
| Product weight | Ca. 0.4 kg |
| Nennleistung | 24 W |
| Working voltage | Gleichstrom 12 V |
| Input current | 2.5 A |
| LED -Menge | 405 LED-Pakete |
| LED type | 5050 Triple-Chip SMD LEDs |
| Wellenlängen | 660 nm Rot + 850 nm NIR |
| Listed wavelength ratio | 660 nm : 850 nm = 1 : 2 |
| Lichtmodi | Rot + Nir / Rot / Nir |
| Brightness levels | 20% / 40% / 60% / 80% / 100% |
| Timer | 1-20 Minuten |
| Timer interval | 1-minute increments |
| Anzeige | LCD |
| Beam angle | 120 degrees |
| Bestrahlung | Manufacturer-listed: ca. 80 mW/cm2 at 0 Zoll |
| Pulse mode | Keiner |
| Maximum temperature | Manufacturer-listed: ca. 40 degrees C; test location and conditions to be confirmed for custom projects |
| Independent heating | Keiner |
| Massage / Vibration | Keiner |
| Built-in battery | Keiner |

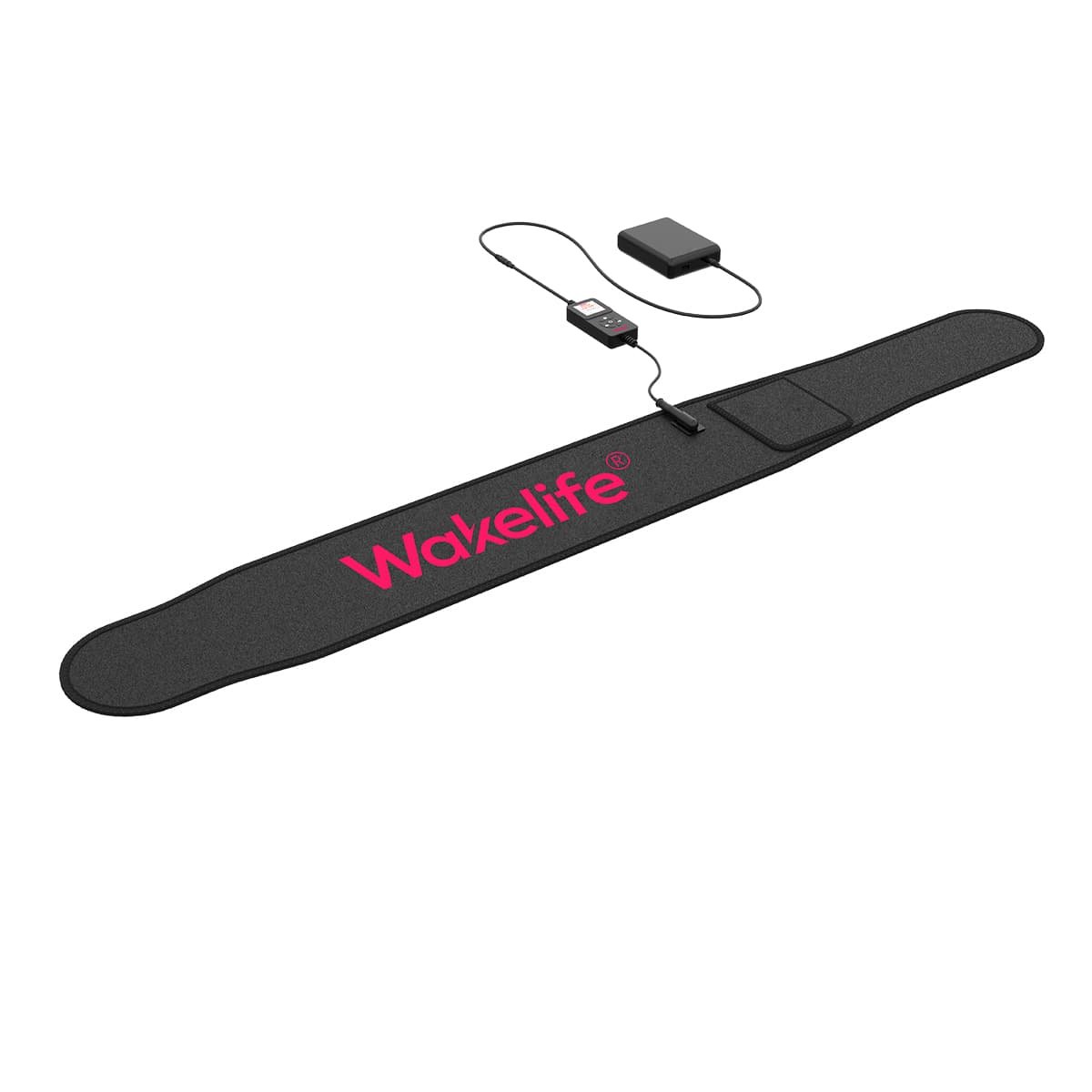

| Stromversorgung | DC adapter (enthalten); external power bank compatible (not included) |
| Fastening | Hook-and-loop |
| Listed ingress protection | IP40 |
| Standard MOQ | 100 PCs |
Handelsmarktlabel, OEM, and ODM Options
Handelsmarktlabel
Available branding items can include:
- Produktlogo
- Controller logo
- Storage-bag logo
- User manual and product label
- Gift-box artwork
- Barcode and market labels
Leichtes OEM
Projects can be assessed for selected changes to:
- Product color and fabric selection
- Accessory combination and packaging structure
- Controller interface
- LED-Konfiguration
ODM-Entwicklung
Projects requiring a new product design can be evaluated for:
- Dimensions and LED layout
- Product structure and industrial design
- Controller functions
- Electrical configuration
Any electrical, safety-related, or structural change must undergo technical evaluation and, ggf, a review of the UL/cUL certification scope.
Wholesale and Project Information
| Artikel | Information |
|---|---|
| Standard MOQ | 100 PCs |
| Probe | Available subject to stock and final configuration |
| Eigenmarke | Supported |
| OEM / ODM | Supported |
| Logo MOQ | Confirmed by branding scope |
| Custom packaging MOQ | Confirmed by packaging structure |
| Vorlaufzeit | Confirmed by quantity and customization |
| Garantie | 1 year from date of delivery |
| Dokumentation | Confirmed against the final approved configuration and target market |
BE405 — Frequently Asked Questions
What wavelengths does the BE405 use?
The standard configuration uses 660 nm red light and 850 nm near-infrared light.
Is BE405 covered by UL/cUL documentation?
Yes — UL File No. E545599 covers the BE405 model range (BE105 through BE405). Before using the UL mark in your own marketing, confirm that your final configuration — adapter, Regler, accessories — matches the approved scope. Changes to electrical components may require re-evaluation.
Ist ISO 13485 a product certificate for BE405?
NEIN. ISO 13485 and MDSAP relate to the manufacturer’s quality-management system. They do not by themselves provide product market authorization or establish a medical intended use for BE405.
What does the EMC report cover?
The UL Verification Services report lists the BE405 family and evaluates EMC requirements to IEC 60601-1-2:2014 + AMD1:2020. It is test evidence, not a standalone market authorization.
Can the logo, Verpackung, or configuration be customized?
Ja. The final scope, MOQ, technical feasibility, Vorlaufzeit, and certification effect are confirmed for each project.
