Professional results demand professional hardware.

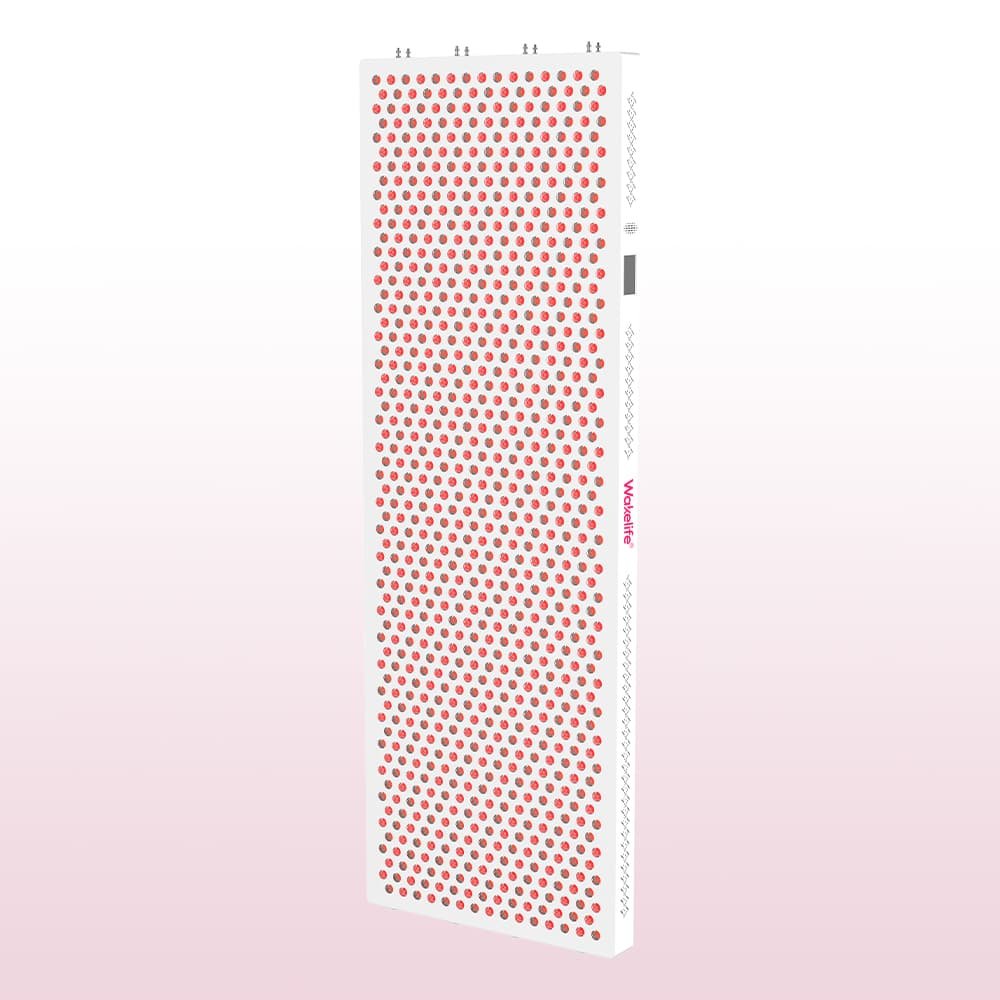

ESPLUS4500 — Core Features That Help Brands Sell Better
Full 6-Wavelength Spectrum with 1060nm Deep NIR
ESPLUS4500 combines red light, near-infrared light, and the premium 1060nm deep NIR wavelength in a single flagship full-body panel. The 6-wavelength configuration gives brands a far stronger technical narrative than basic 660nm / 850nm dual-wavelength panels still dominating the market.
630nm + 660nm + 810nm + 830nm + 850nm + 1060nm
B2B Positioning Advantage: With six clinically-referenced wavelengths, ESPLUS4500 lets your brand claim the “full-spectrum flagship” position — justifying premium retail pricing of $2,500–$4,500 and outperforming 90% of competitor panels in spec-sheet comparisons.

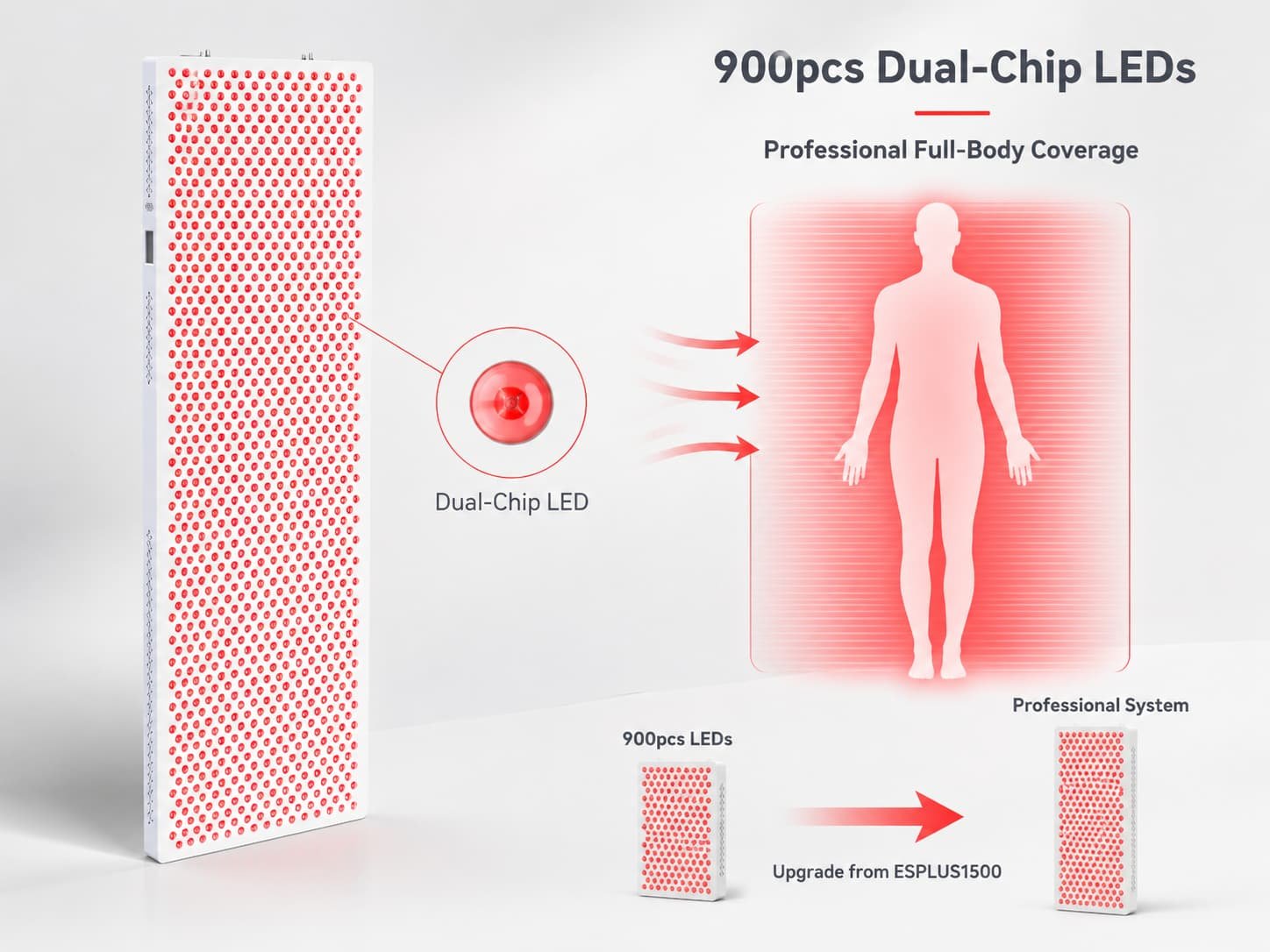

900pcs Dual-Chip LEDs — 3 × More Than ESPLUS1500
ESPLUS4500 is built with 1080 high-output dual-chip LEDs in the largest panel structure in the Wakelife lineup — designed for true full-body coverage in a single session without repositioning.
Compared with ESPLUS1500 (300 LEDs) and ESPLUS750 (150 LEDs), the ESPLUS4500 delivers 3× more LED count and covers a significantly larger treatment area — making it the definitive top-of-line option for brands that need a flagship SKU.
B2B Positioning Advantage: This gives your catalog a clear “Good / Better / Best” pricing ladder. ESPLUS4500 anchors the top tier and increases average order value while giving customers an aspirational upgrade target from smaller models.

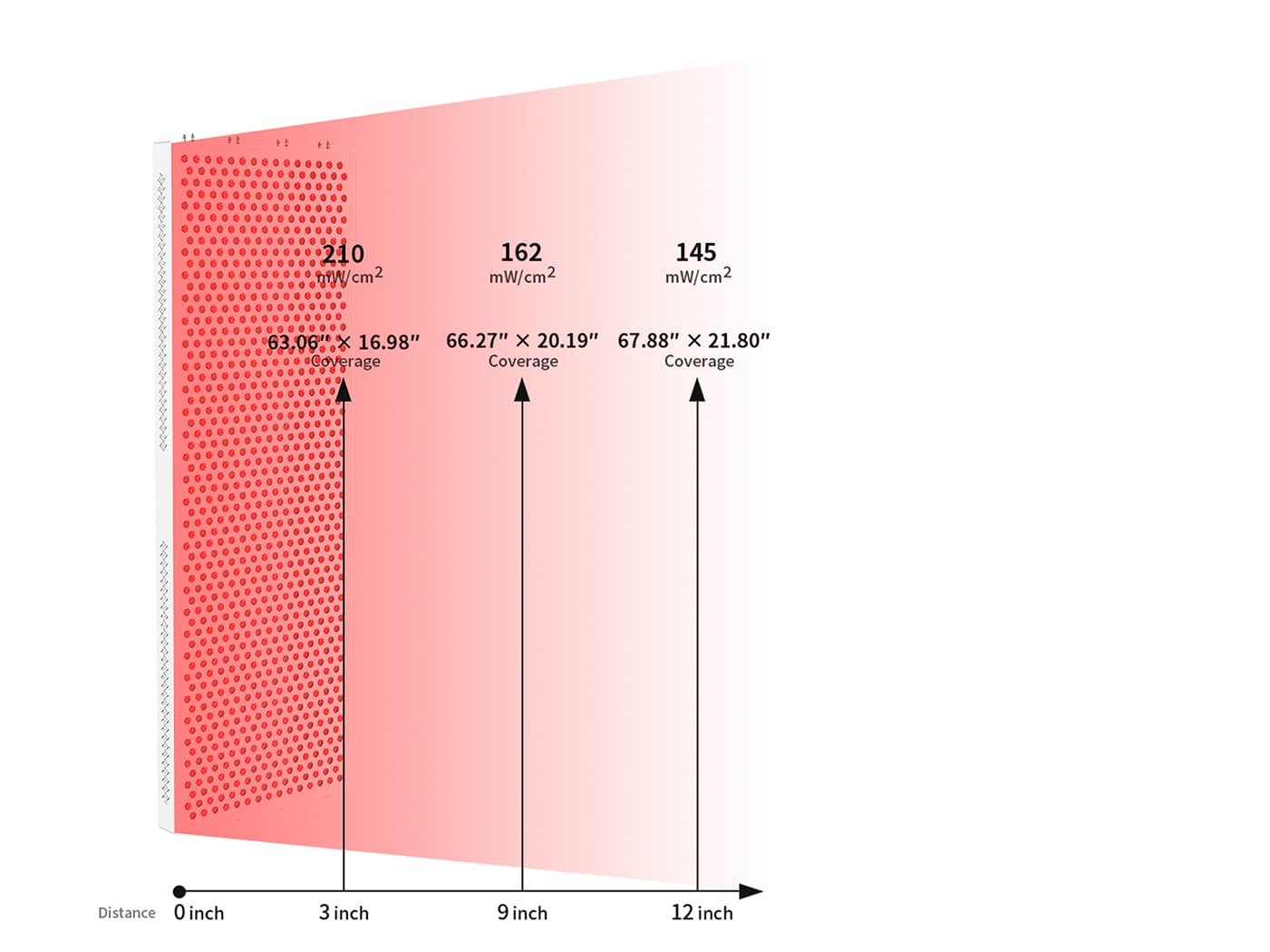

Industry-Leading Irradiance with Full-Body Coverage
ESPLUS4500 delivers exceptional light output across every practical treatment distance, giving end users both high intensity at close range and strong coverage at farther distances for full-body routines.
- 210 mW/cm² at 3 inches — flagship-grade peak intensity
- 162 mW/cm² at 9 inches — outperforms most competitors’ peak output
- 145 mW/cm² at 12 inches — still stronger than many competitors’ close-range specs
B2B Positioning Advantage: These numbers give your marketing team hard data to win spec-sheet comparison battles on Amazon listings, distributor catalogs, and retail pitches. When buyers compare mW/cm², ESPLUS4500 consistently ranks in the top tier — a decisive advantage for premium home wellness, high-end SPA treatment rooms, recovery clinics, and professional procurement RFPs.
Smart Control for Modern Consumers
Today’s premium wellness buyers expect connected, intuitive operation. ESPLUS4500 supports Bluetooth mobile APP control and an integrated touchscreen display, allowing users to effortlessly adjust session timing, brightness levels, preset modes, and individual wavelength channels.
B2B Positioning Advantage: Smart control isn’t a “nice to have” — it’s a table-stakes feature for premium positioning. Competitor panels at this price point without app control lose in direct comparison. Your sales team can also emphasize the branded app opportunity (available as OEM customization) as a differentiator in distributor pitches.
5-Channel Dimming — Full Protocol Flexibility
ESPLUS4500 supports 5-channel independent dimming, allowing users to adjust individual wavelength groups to match specific routines — red-only facial sessions, NIR-only deep recovery, 1060nm-focused body contouring, or full-spectrum full-body protocols.
B2B Positioning Advantage: 5-channel dimming transforms a single SKU into multiple marketing use cases. Your brand can position the same hardware for:
- 💆 Beauty & skincare routines (red-dominant)
- 🏋️ Muscle recovery & pain relief (NIR-dominant)
- 🧘 Wellness & relaxation (balanced protocols)
- 💎 Professional body contouring (1060nm-featured)
One product → four marketing stories → broader channel reach.

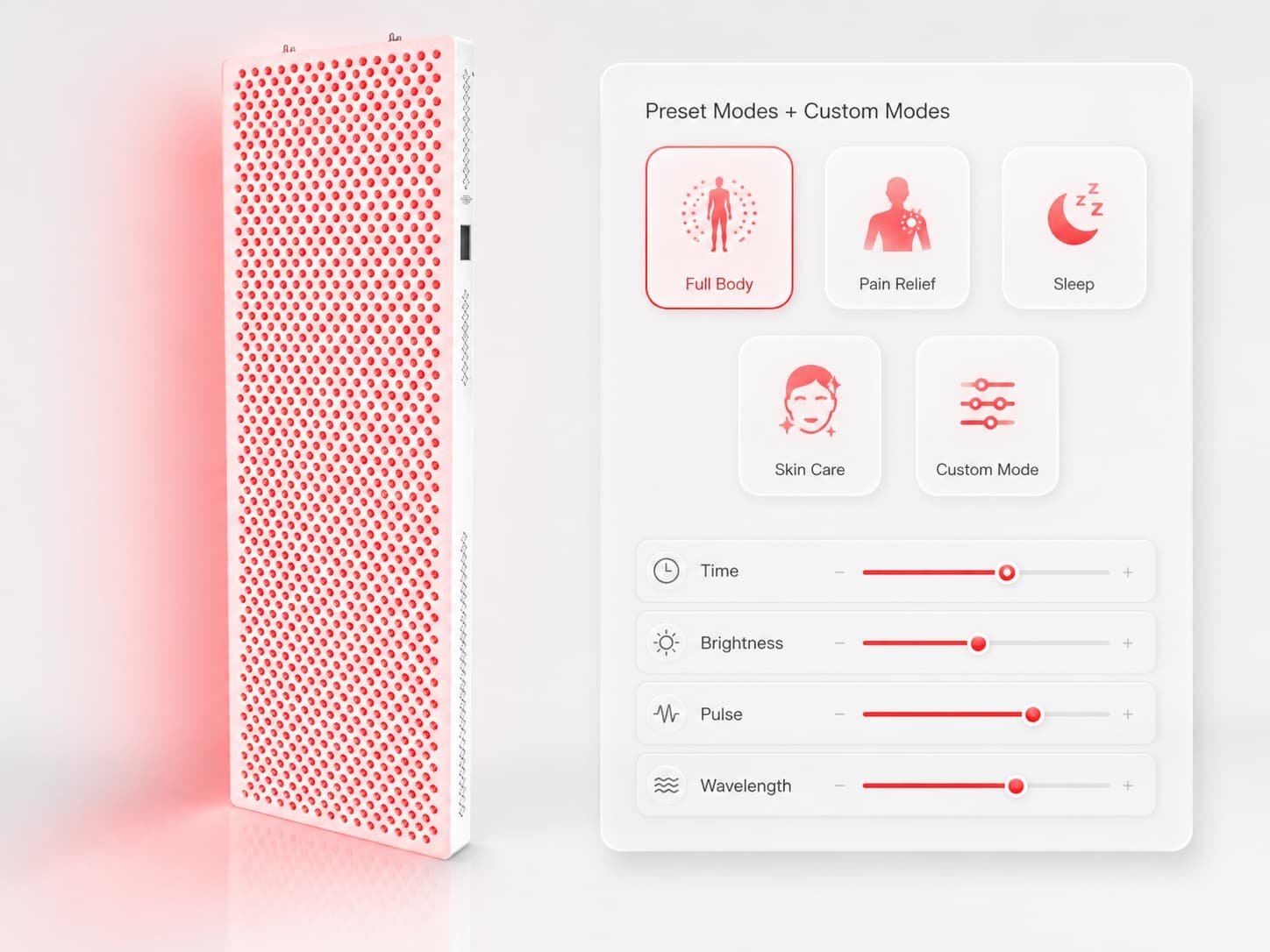

Preset Modes for Simplicity + Custom Modes for Power Users
ESPLUS4500 ships with professionally-designed preset modes for one-touch simplicity and fully customizable modes for advanced users. Users can fine-tune brightness, session timing, pulse frequency, and wavelength combinations to match their personal goals.
For OEM Partners: Mode names, interface language, default protocol libraries, and UI wording are fully customizable to match your target market’s regulatory environment, local compliance language, and brand positioning.
B2B Positioning Advantage: Custom mode libraries let you build market-specific product variants from a single hardware platform — reducing inventory complexity while maximizing regional positioning flexibility.
Technical Specifications for Import & Compliance Review
| Specification | ESPLUS4500 |
|---|---|
| LED Count | 900 × 5W Dual-Chip LEDs |
| Wavelengths | 630nm · 660nm · 810nm · 830nm · 850nm · 1060nm |
| Peak Irradiance (3″) | 210 mW/cm² |
| Irradiance (9″) | 162 mW/cm² |
| Irradiance (12″) | 145 mW/cm² |
| Control | Touchscreen + APP control |
| Voltage | 100–240V AC, 50/60Hz (Global) |
| Beam Angle | 30° |
| Dimming | 5-channel dimming |
| Modes | 4 preset modes + 2 custom modes |
| Dimensions | 1625 × 465 × 65 mm |
| Net Weight | 24 kg |
| Connection | Multi-device daisy-chain supported |
| Application | Spa, Clinic, Gym, Resort, Studio, Home |
| Certifications | FDA, TGA, MDL, CE, FCC, RoHS, ISO 13485 |
ESPLUS4500 Standard Package & Accessories
For wholesale buyers, distributors, and brand owners, shipping cost is an important part of product evaluation. We provide packaging and logistics information to help you estimate air freight, sea freight, warehousing, and fulfillment costs more efficiently.

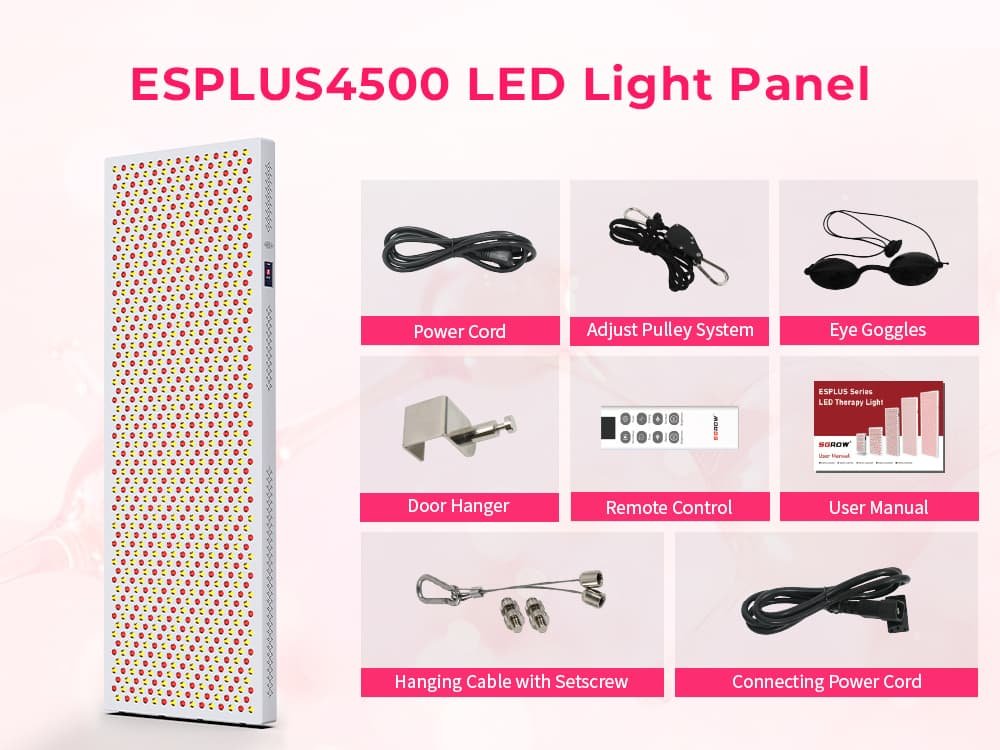

The standard ESPLUS4500 package includes the main device and essential accessories for setup and daily use.
Standard Package Includes
- ESPLUS4500 LED Therapy Light
- Power Cord
- Connecting Power Cord
- Eye Goggles
- Door Hanger
- Adjust Pulley System
- Hanging Cable with Setscrew
- Remote Control
- User Manual
ESPLUS4500 Wall Mounting Bracket Instruction
Please make sure your wall load capacity: over 25KG/44LBS before install it.

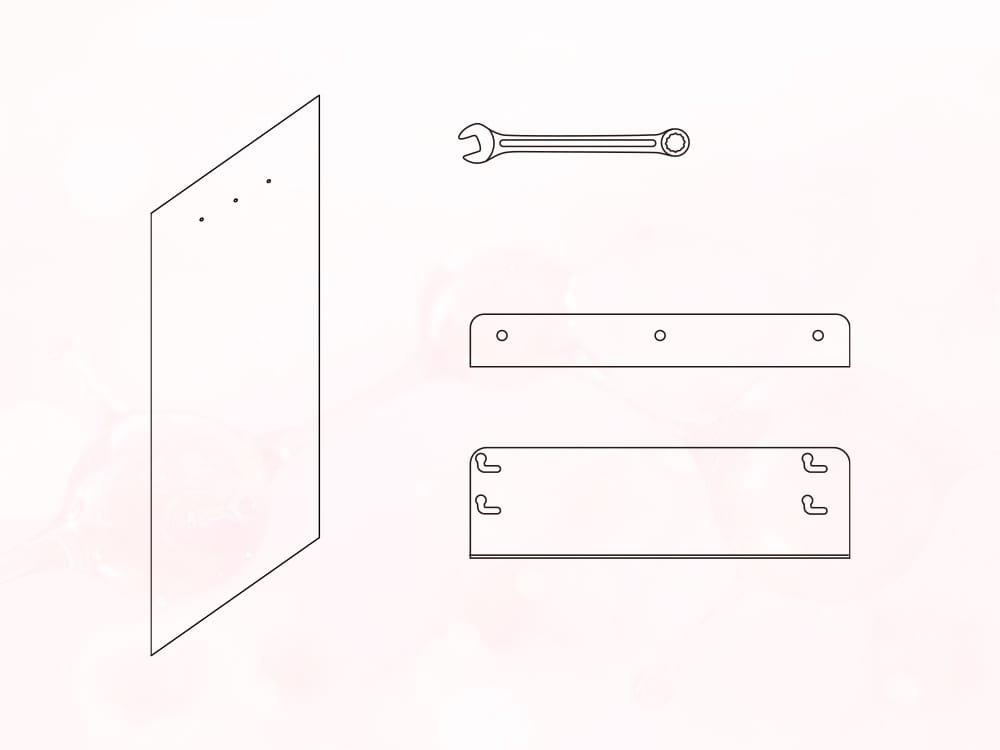

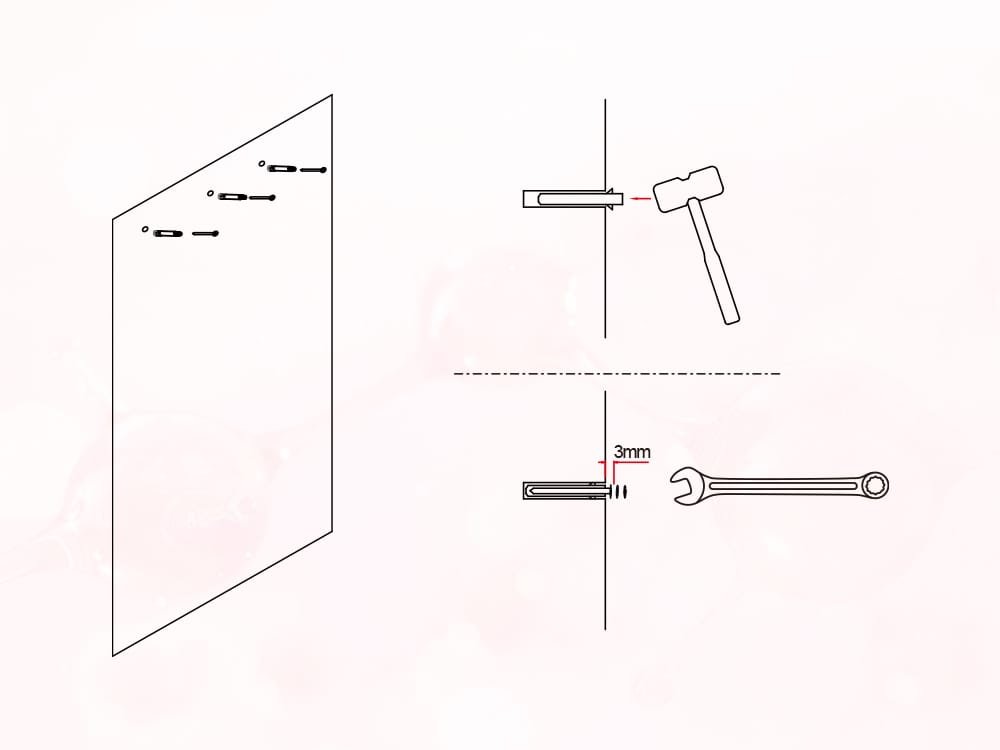

1.Drill holes in the wall as the size

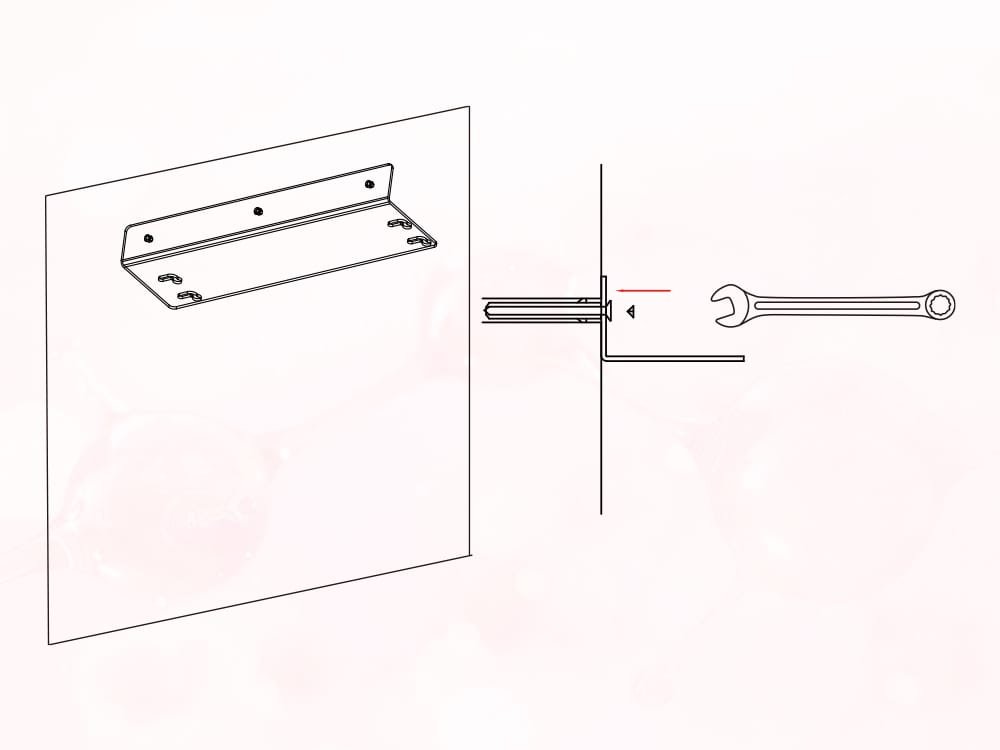

3.Hang up the wall bracketand tighten the screws

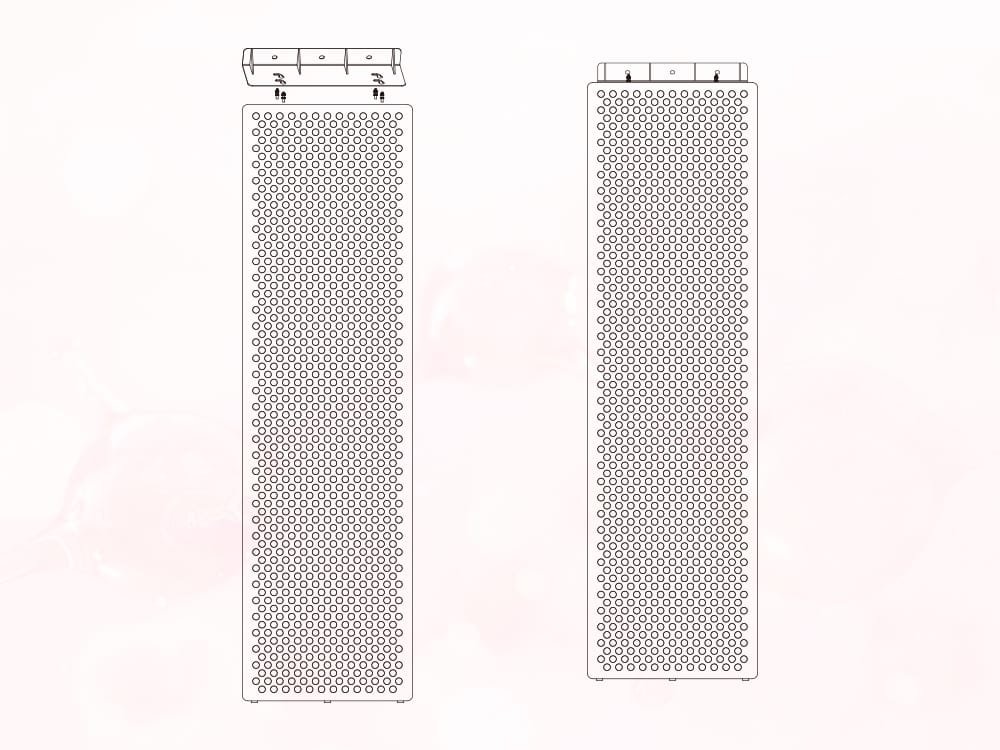

4.Hang the light on the bracket:
Full OEM & Private Label Red Light Therapy Manufacturing Services
1.For Brand Owners & OEM Clients
You already have a brand. You need a reliable OEM factory to manufacture your exclusive product line.
2.For Importers & Distributors
You distribute wellness equipment regionally and need to add red light therapy to your catalog.
3.For E-Commerce Sellers (Amazon / Shopify / TikTok Shop)
You sell online and need a supplier who understands e-commerce operations.
4.For Chain Facilities & Project Procurement
You’re equipping multi-location spas, clinics, gyms, or hotels.
Branding Layer
- Custom logo (laser-engraved, silk-print, or metal badge)
- Custom retail packaging (full-color printed carton)
- Custom user manual & quick-start guide
- Custom warranty card & brand inserts
Hardware Layer
- Custom housing color & surface finish
- Custom vent pattern & bracket design
- Custom control panel layout
- Custom wavelength combinations
- Custom LED count / panel size (full ODM)
Software Layer
- Branded Bluetooth app (iOS + Android)
- Custom app UI theme & brand identity
- Custom preset treatment modes
- Your brand name in device firmware
Inside Shenzhen Wakelife — The Factory Behind Wakelife Red Light Therapy
| Metric | Value |
|---|---|
| Founded | 2015 |
| Factory Area | 20,000㎡ |
| Employees | 260+ (50+ in R&D) |
| Production Lines | 8 dedicated red light therapy lines |
| Annual Capacity | 2,000,000+ units |
| Export Markets | 100+ countries |
| Patents | 120+ utility & design patents |
| QC Standards | ISO 13485 Medical-Grade |
FAQ from Importers, Distributors & OEM Partners
What's the MOQ for stock orders vs. custom OEM?
10 units for stock configuration (factory standard) · 50 units for full custom OEM (logo, packaging, housing, app).
Do you offer samples before bulk order?
Which certifications are included and can they be verified?
How do you protect my OEM design?
