Why Global Brands Choose VCSEL Over Traditional LED
De Wakelife HC03 utilizes Oppervlakte-emitterende laser met verticale holte (VCSEL) arrays.
High-Density Deep Penetration:
Delivering an irradiance of 30MW/cm² , VCSEL technology outputs a highly collated, coherent beam that bypasses the hair barriers to directly stimulate hair follicle root propagation deep within the scalp tissue layer.
Perfected Wavelength Accuracy:
Operating strictly within the clinically validated 655 ± 5nm red light spectrum to effectively accelerate vascular microcirculation across the scalp environment.
Thermal Stability & Longevity
Unlike standard LEDs that decay rapidly under sustained heat, our industrial-grade VCSEL diodes maintain peak power output throughout the 12-month warranty cycle and beyond.
Engineered for Comfort. Designed for Safety.
Honeycomb Side-Ventilation Matrix
Anatomical Comfort: Unlike rigid plastic helmets, the soft silicone architecture adapts flawlessly to diverse global head circumferences.
Anti-Perspiration Design: The structural integration of side and top honeycomb ventilation cutouts avoids heat trapping during clinical cycles, ensuring maximum airflow and consumer satisfaction.

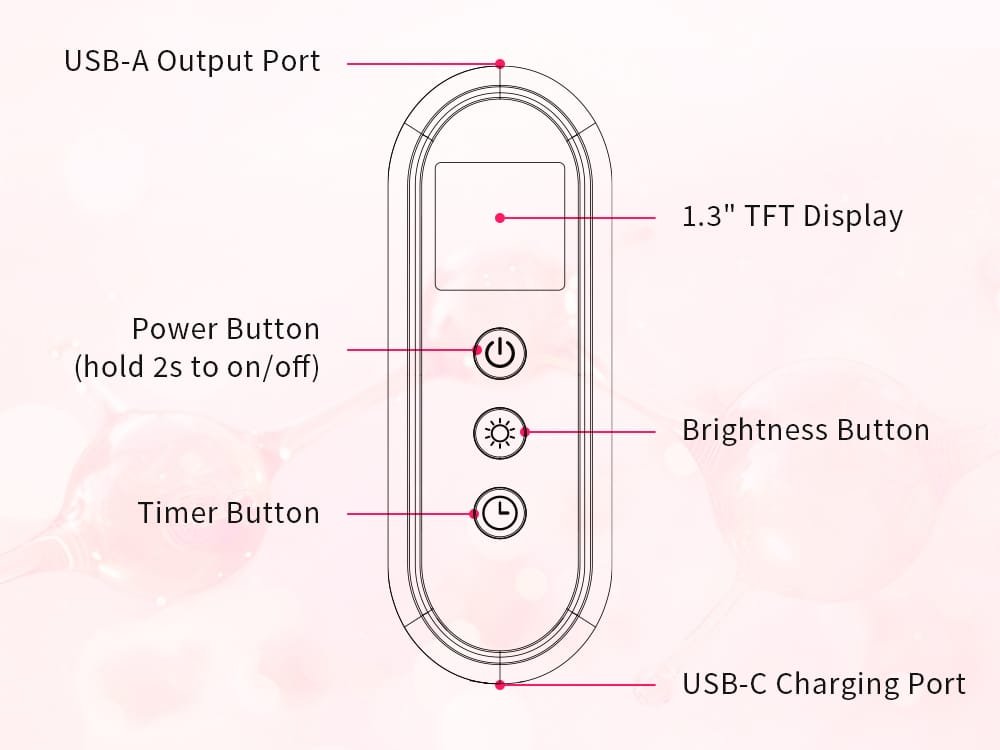

Functie 2: 1.3" TFT Smart Control & Power Management Hub
- Adjustable Protocols: Equipped with 3-tier brightness levels (50% / 75% / 100% uitgangsvermogen) and 3-tier programmable session timers (10 / 15 / 20 notulen), facilitating personalized home-use progression schemes.
Robust Power Reserve: Powered by an integrated 4000 mAh Li-ion battery, supporting approximately 6 comprehensive treatment sessions on a single USB-C charge.

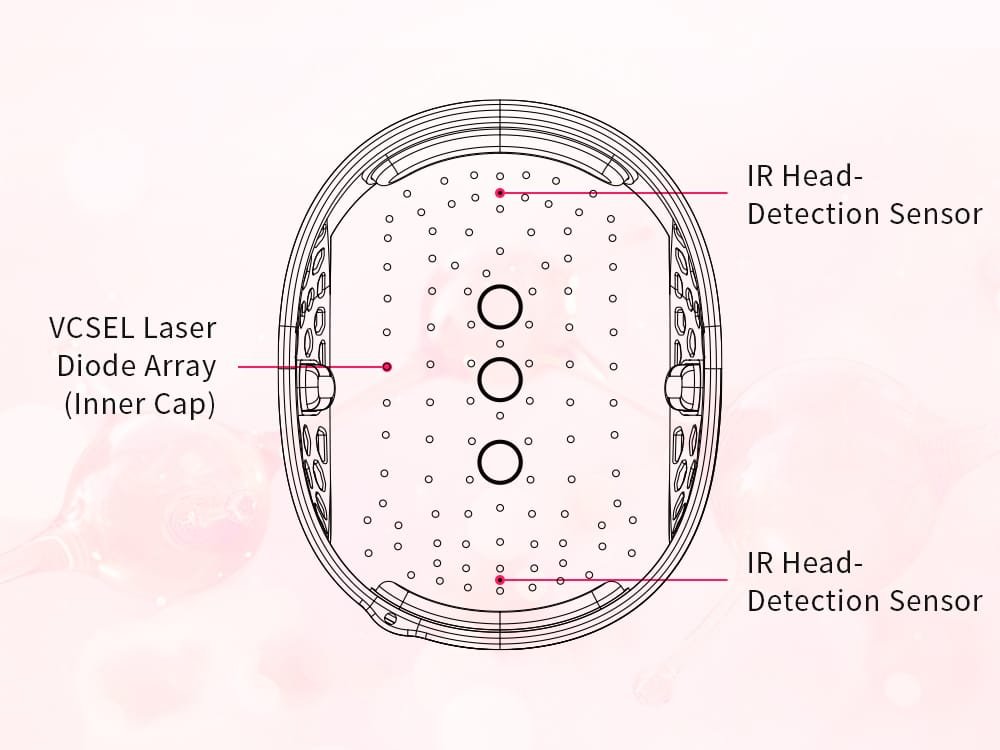

Smart IR Safety Interlock System
- Liability Reduction: Two internal Infrared (IR) head-detection sensors continuously track contact status. The laser system instantly powers down the moment the cap is removed, guaranteeing complete optical safety for consumers.
Technical Specifications for Import & Compliance Review
| Parameter | Specificatie |
|---|---|
| Model | HC-03 |
| Materiaal | Zachte siliconen |
| Lichtbron | 168 × VCSEL Laser Diodes |
| Golflengte | 655 ± 5 nm (Rood licht) |
| Bestraling | 30 MW/cm² |
| Nominale kracht | 8 W |
| Display | 1.3″ TFT LCD |
| Batterij | 4000 mAh Li-ion |
| Oplaadpoort | USB-C (5V / 2A recommended) |
| Charge Time | Ongeveer. 2.5 uren |
| Levensduur van de batterij | Ongeveer. 60 min (~6 × 10-min sessions) |
| Output Port | USB-A × 1 (cap connection) |
| Helderheidsniveaus | 50% / 75% / 100% |
| Timer Options | 10 / 15 / 20 min |
| Safety Sensor | Dual IR Head-Detection (auto on/off) |
| Certificeringen | FDA, CE, FCC, ROHS |
See the HC03 Silicone VCSEL Laser Hair Growth Cap in Action
A closer look at comfort, red light performance, and user-friendly operation.
Explore the HC03 Silicone VCSEL Laser Hair Growth Cap through this product video. Designed for home-use scalp care routines, HC03 combines a soft silicone cap body, 168 VCSEL laser diodes, 655 ± 5nm red light, smart IR head-detection sensors, and an easy-to-use TFT controller. The video demonstrates the product’s ergonomic fit, red light working mode, ventilation design, and simple operation, helping B2B buyers evaluate the product experience before sample testing or OEM/ODM customization.
Simple 5-Step Daily Routine
| Stap | Action |
|---|---|
| 1. Power On | Hold the power button for 2 seconds — the TFT display lights up. |
| 2. Wear the Cap | Place on a clean, dry scalp. IR sensors detect contact and activate the red light automatically. |
| 3. Adjust Brightness | Fiets door 50% / 75% / 100% — start at 50% for first-time use. |
| 4. Set Timer | Kiezen 10 / 15 / 20 notulen. Auto shut-off when complete. |
| 5. Remove the Cap | IR sensor cuts power instantly — no manual shut-off needed. |
A Structured 12-Week Protocol for End Users
| Fase | Duur | Frequentie | Session Length |
|---|---|---|---|
| Introductory | Weeks 1–4 | Daily | 10 min |
| Consolidation | Weeks 5–12 | Daily | 15–20 min |
| Onderhoud | After Week 12 | 3–5× per week | 15–20 min |
Build Your Own Branded Laser Hair Cap | OEM / ODM Customization
| Customization Area | Options |
|---|---|
| 🎨 Branding | Custom logo, kleuren, surface finish |
| 📦 Verpakking | Retail box design, handleidingen, inserts, accessoires |
| 🔧 Hardware | Diode count, wavelength tuning, power profile |
| 📱 Software | Custom UI on TFT display, optional companion app |
| 🌍 Naleving | FDA / CE / TGA / MDL documentation support |
| 📜 Manuals | Multi-language user manuals & marketing assets |
Sampling: Standard models ship from stock; custom samples within a few weeks
Lead Time: 25–45 days for mass production after sample approval

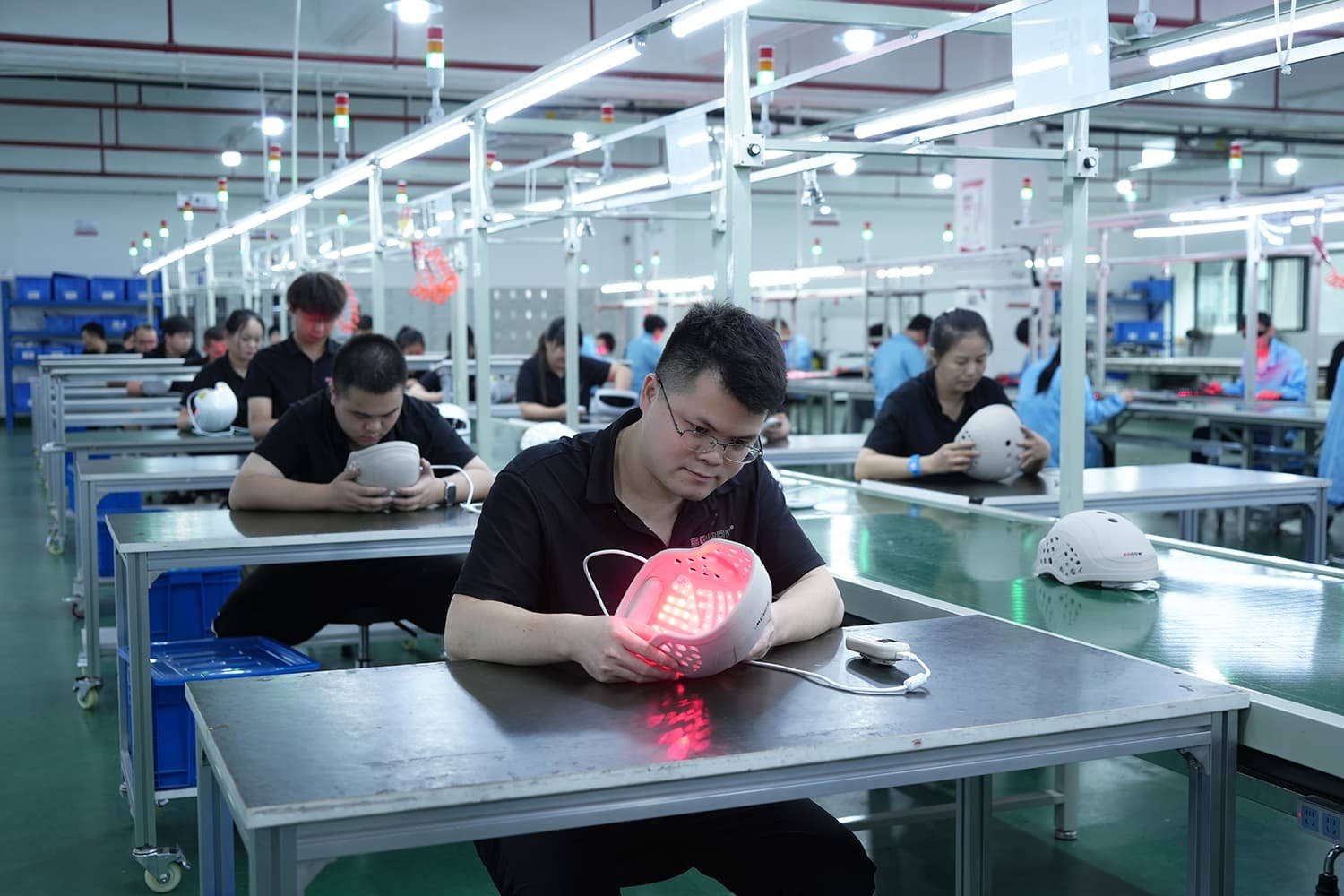

Inside Wakelife’s HC03 Hair Growth Cap Manufacturing Line
HC03 is manufactured through a controlled production workflow covering assembly, first-article inspection, controller testing, VCSEL laser diode activation checks, and batch-level quality inspection. Voor B2B-kopers, this process helps support stable supply, consistent product quality, and scalable OEM/ODM delivery for hair care brands, distributeurs, and private label partners.
Facility Highlights:
- 20,000 m² total production area
- 12 productielijnen, 180,000+ units monthly capacity
- Cleanroom-controlled assembly
- Unit-level traceability for every device
- Full QC validation: optical, electrical, drop, lifecycle
