Description
What Is the HT01 VCSEL Laser Hair & Scalp Care Comb?
The HT01 is a compact, multi-function hair and scalp care device developed for brands that want more than a conventional red-light or laser comb.
It integrates four complementary functions into one handheld platform:
- Multi-wavelength light care
- Adjustable EMS scalp contact
- Vibration massage
- Serum application
Unlike a standard light comb that focuses on only one technology, HT01 provides a broader product concept that can support differentiated positioning across hair wellness, scalp care, beauty technology and at-home care channels.
Recommended Positioning Statement
A 4-in-1 VCSEL hair and scalp care platform designed for beauty, hair wellness, private-label and OEM/ODM brands.
Who Is the HT01 Designed For?
Hair and Scalp Care Brands
Add a multi-function handheld product to an existing shampoo, serum, scalp essence or hair wellness range.
Beauty and Wellness Brands
Expand into hair and scalp care with a compact device that combines light, EMS, vibration and serum application.
Amazon and Shopify Sellers
Create a feature-rich product with clear visual selling points and multiple content angles for online marketplaces.
Distributors and Importers
Introduce a compact hair wellness device that is easier to demonstrate, display and ship than a full-size helmet.
Salons and Scalp Care Chains
Use the product as part of a non-invasive, daily scalp care or take-home retail program.
Private-Label and OEM/ODM Customers
Develop branded packaging, market-specific manuals, customized appearance or deeper technical configurations.
What Makes HT01 Different from a Standard Laser Comb?
1. Multi-Wavelength Light Care
A combination of 655±5 nm VCSEL, 660 nm red LED and 460 nm blue LED supports multiple scalp care modes within one device.
2. Adjustable EMS
Three EMS intensity levels allow users to select their preferred contact experience. EMS can also be switched off independently.
3. Vibration Massage
Fixed-intensity vibration provides a comfortable massage experience during daily scalp care routines.
4. Serum Application
A detachable magnetic applicator supports convenient application of compatible scalp care liquids as part of the routine.
Section Closing Copy
One handheld device. Four scalp care functions. More differentiation for your product line.
How Is the HT01 Light System Configured?
| Light Source | Quantity |
|---|---|
| 655±5 nm VCSEL | 14 |
| 660 nm Red LED | 14 |
| 460 nm Blue LED | 14 |
| Total Light Modules | 14 |
| Total Light-Emitting Chips | 42 |
Chip Ratio
655±5 nm : 660 nm : 460 nm = 1 : 1 : 1

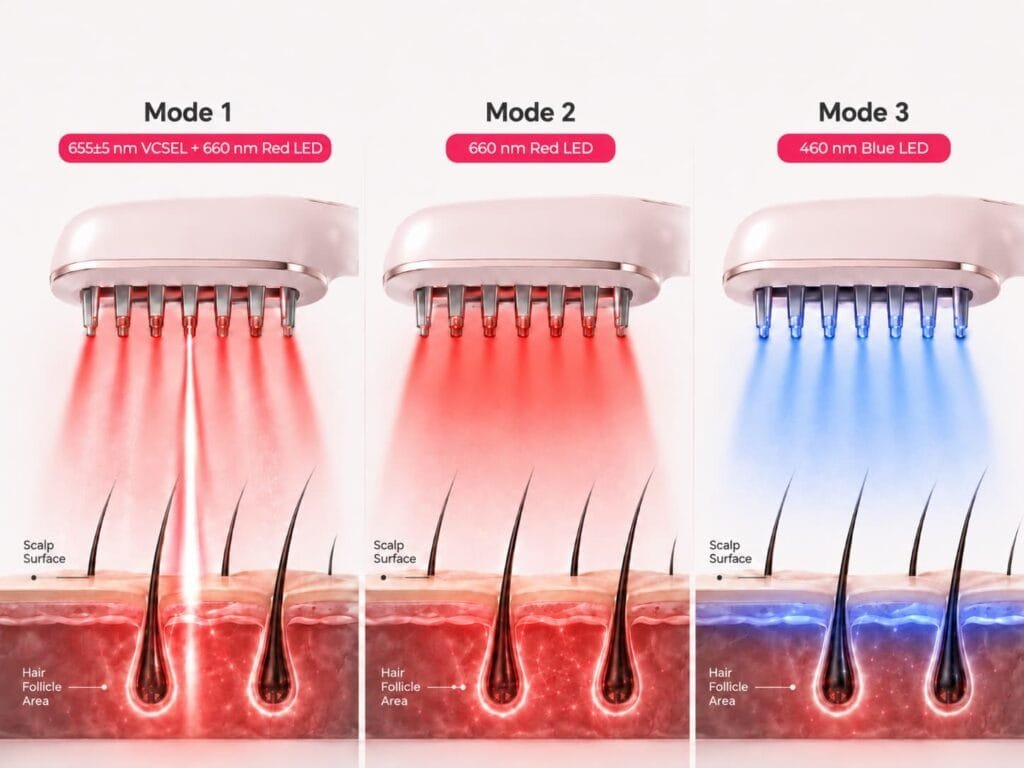

What Light Modes Does HT01 Provide?
HT01 provides three preset light modes for different scalp care routines.
| Mode | Light Configuration | Recommended Positioning |
|---|---|---|
| Mode 1 | 655±5 nm VCSEL + 660 nm Red LED | Combined directional and broader red-light care |
| Mode 2 | 660 nm Red LED | Red LED scalp care mode |
| Mode 3 | 460 nm Blue LED | Blue-light scalp vitality care mode |
Light Intensity
The standard HT01 configuration uses a fixed light intensity.
Timer
Each treatment program runs for 10 minutes and switches off automatically when the program is complete.

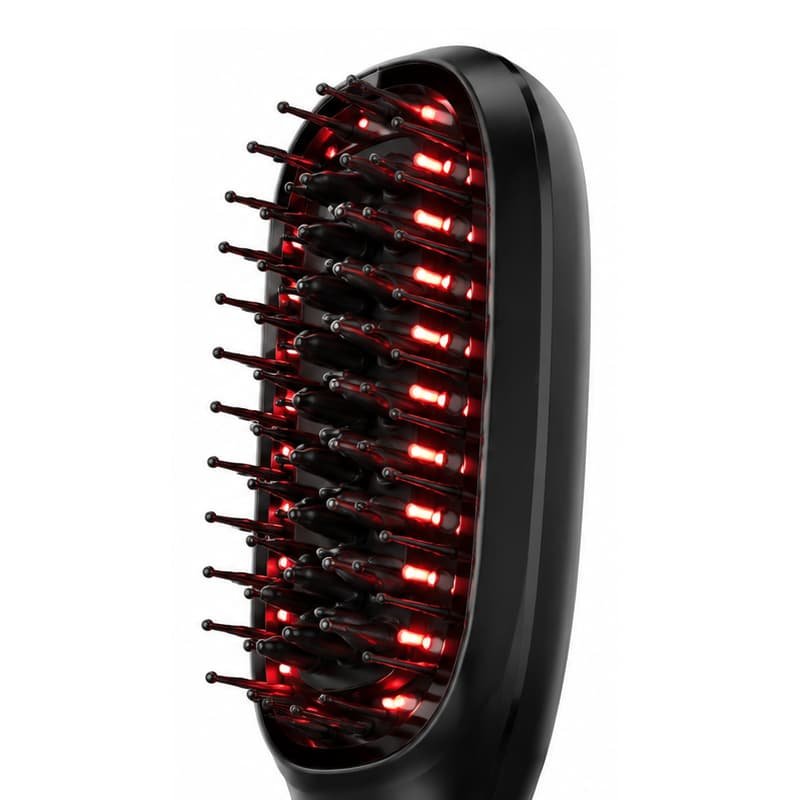

COMFORT-FOCUSED SCALP CONTACT
Flexible Silicone Teeth for Comfortable Scalp Contact
HT01 uses soft, conductive silicone teeth that flex gently as they move through the hair and follow the scalp contour. Compared with rigid plastic teeth, the adaptive structure is designed to reduce the hard contact feel and pulling sensation during combing.
The flexible teeth also help maintain stable EMS contact while positioning the light source closer to the scalp during each pass.
- Softer Scalp Contact
- Less Pulling Through Hair
- Supports EMS and Light Positioning
For brands, this creates a clear user-experience advantage that is easy to demonstrate through product videos, retail listings and in-store trials.
HT01 Technical Specifications
| Specification | HT01 Standard Configuration |
|---|---|
| Model | HT01 |
| Product Type | VCSEL Laser Hair & Scalp Care Comb |
| Main Functions | Multi-wavelength light care, EMS, vibration massage and serum application |
| Light Module Type | 3030 tri-chip light source module |
| Light Module Quantity | 14 modules |
| Total Light-Emitting Chips | 42 chips |
| VCSEL Quantity | 14 chips |
| Red LED Quantity | 14 chips |
| Blue LED Quantity | 14 chips |
| Wavelengths | 655±5 nm VCSEL + 660 nm red LED + 460 nm blue LED |
| Chip Ratio | 1 : 1 : 1 |
| Optical Output Power | 5 mW per VCSEL chip |
| Light Mode 1 | 655±5 nm VCSEL + 660 nm red LED |
| Light Mode 2 | 660 nm red LED |
| Light Mode 3 | 460 nm blue LED |
| Light Intensity | Fixed |
| EMS | 3 adjustable levels with independent off control |
| EMS States | Off + Level 1 + Level 2 + Level 3 |
| EMS Frequency | 5–10 kHz |
| Vibration | Fixed intensity |
| Serum Applicator | Detachable magnetic design |
| Display | LED indicator lights; no display screen |
| Timer | 10 minutes |
| Automatic Shutoff | Yes |
| Battery Capacity | 1300 mAh |
| Operating Time | ≥60 minutes |
| Charging Time | ≤2.5 hours |
| Product Dimensions | L249.8 × W63.44 × T27.45 mm |
| Dimensional Tolerance | ±0.5 mm |
| OEM/ODM | Available |
| Sample | Available, subject to sales confirmation |
Private Label and OEM/ODM Customization
HT01 is designed as a flexible platform for brands at different development stages.
Private Label
Suitable for brands that want faster market entry using the existing product structure.
Available options may include:
- Product logo
- Product label
- Branded packaging
- User manual
- Market-specific language
- Barcode and shipping label
- Gift box artwork
Light OEM
Suitable for brands that want visible differentiation without rebuilding the entire device.
Options may include:
- Product color
- Surface finish
- Accessory combination
- Serum applicator presentation
- Packaging structure
- Device-and-serum bundle
- Retail or professional channel kit
ODM Development
Suitable for brands that require deeper technical or structural differentiation.
Engineering evaluation may include:
- Wavelength configuration
- Light source arrangement
- Number and type of light modules
- EMS parameters
- Control logic
- Structural modifications
- User interface adjustments
- Serum application structure
- Product appearance
- Market-specific safety requirements
Customization Notice
Customization feasibility, MOQ, development cost, tooling requirements, validation plan and certification impact must be reviewed before the final project is approved.
Quality, Testing and Compliance
HT01 should be evaluated at both factory level and product-model level.
Factory-Level Quality System
HT01 is manufactured within Wakelife’s quality-managed production environment.
Recommended wording:
Manufactured under Wakelife’s ISO 13485 quality management system.
Wakelife’s company-level manufacturing capabilities include:
- 20,000 m² manufacturing facility
- 12 production lines
- 50+ R&D engineers
- 120+ patents
- 260+ employees
- Production and assembly inspection systems

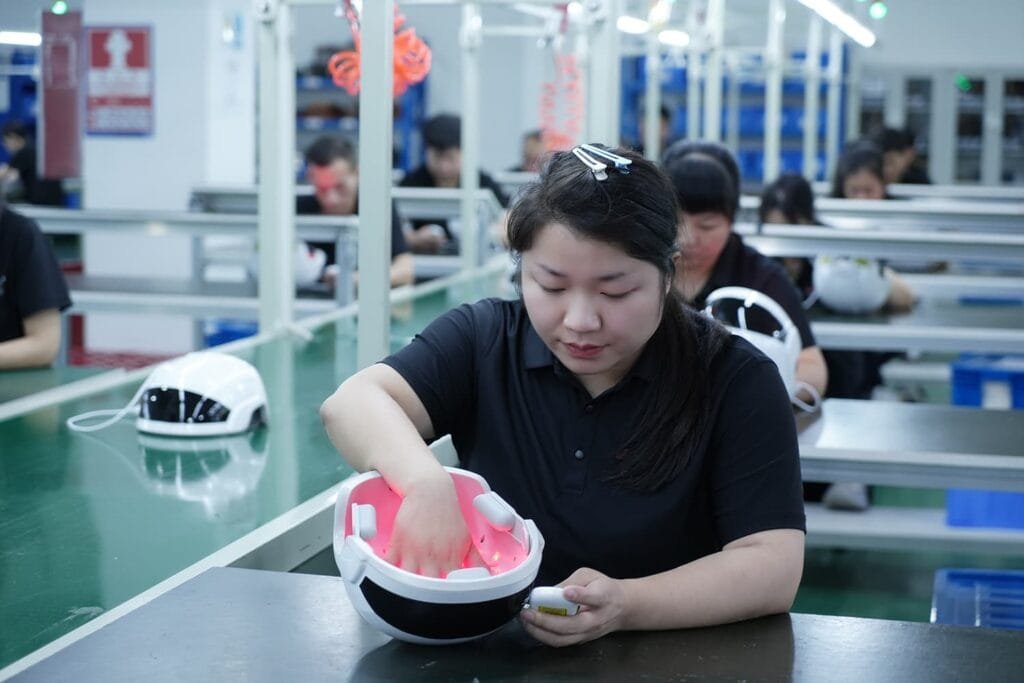

- Optical output and irradiance verification capability
- FPC and electronic component quality control
- OEM/ODM development support
These are company-level capabilities and should not be interpreted as automatic product-model certification.
Section Closing Copy
One handheld device. Four scalp care functions. More differentiation for your product line.
Product-Level Documentation
The actual availability and scope of the following documents must be confirmed for the final HT01 configuration:
- CE
- FCC
- RoHS
- IEC 60825-1 laser safety testing
- Battery-related testing
- EMC testing
- Electrical safety testing
- Target-market labeling documentation
FDA and Regulatory Statement
HT01 is not presented on this page as FDA cleared.
Wakelife’s factory or other Wakelife product models may hold regulatory approvals, but these approvals should not be extended to HT01 unless the official record specifically covers the HT01 model and intended use.
HT01 at a Glance
| Feature | Brand and Buyer Value |
|---|---|
| 4-in-1 System | Creates a more differentiated product story |
| VCSEL + Red LED + Blue LED | Supports multiple light-care positioning angles |
| 42 Light-Emitting Chips | Provides clear, measurable hardware differentiation |
| Comb Form Factor | Helps position light closer to the scalp |
| Flexible Conductive Teeth | Combines comfort and EMS contact |
| 3-Level EMS | Gives users adjustable experience control |
| Magnetic Serum Applicator | Supports device-and-serum product bundles |
| Vibration Massage | Adds sensory and wellness value |
| Rechargeable Design | Supports portable home-use positioning |
| OEM/ODM Platform | Suitable for branded and customized projects |
HT01 — Frequently Asked Questions
What makes HT01 different from a conventional laser hair comb?
HT01 combines three light sources, adjustable EMS, vibration massage and serum application in one handheld platform. It uses 14 tri-chip modules containing 42 light-emitting chips in total, providing more product differentiation than a basic single-function laser or LED comb.
Does 5 mW refer to irradiance?
No. The 5 mW specification refers to the optical output power of each individual 655±5 nm VCSEL chip. It is not an irradiance value and should not be written as 5 mW/cm². Finished-device irradiance should be confirmed through a validated test report.
Can the wavelength or EMS configuration be customized?
Wavelength configuration, light source arrangement, EMS parameters and control logic may be evaluated for OEM/ODM projects. Feasibility depends on engineering review, MOQ, validation requirements and the certification impact of the requested changes.
What are the sample and MOQ requirements?
Samples are available subject to stock and project requirements. MOQ depends on whether the order is neutral, private label, light OEM or full ODM. Final sample price, MOQ and lead time are confirmed after the customer’s branding and technical requirements are reviewed.
Is HT01 FDA cleared?
HT01 is not presented as FDA cleared on this page. Factory-level quality systems and regulatory approvals held by other Wakelife models do not automatically apply to HT01. Model-specific certification scope should be verified before the product is marketed in a regulated market.
