Description
- ISO 13485-certified factory
- OEM / ODM & private label
- Samples available
- Sold as a pair
Quick Facts for Buyers
| Wavelengths | Combined 660nm red + 850nm near-infrared; chip layout 1:2 |
| Coverage | Lower leg area; wrap dimensions 500 × 333 × 6mm |
| Modes | M1 continuous; M2 + 10Hz pulse; M3 + 40Hz pulse; no brightness adjustment |
| Power | Built-in 3.7V 5000mAh battery; USB-C charging from a standard 5V adapter |
| Sold as | Set of two wraps; catalog specifications are given per single wrap |
| MOQ | 50 sets for orders with custom logo; sample orders are charged |
| Sample and bulk lead time | Samples typically 3–7 days; bulk production around 30 days, confirmed per order |
| Factory certification | ISO 13485-certified quality system (company level); product documents for your market are confirmed before ordering |
| Private label | Branding, packaging and manual options scoped per project |

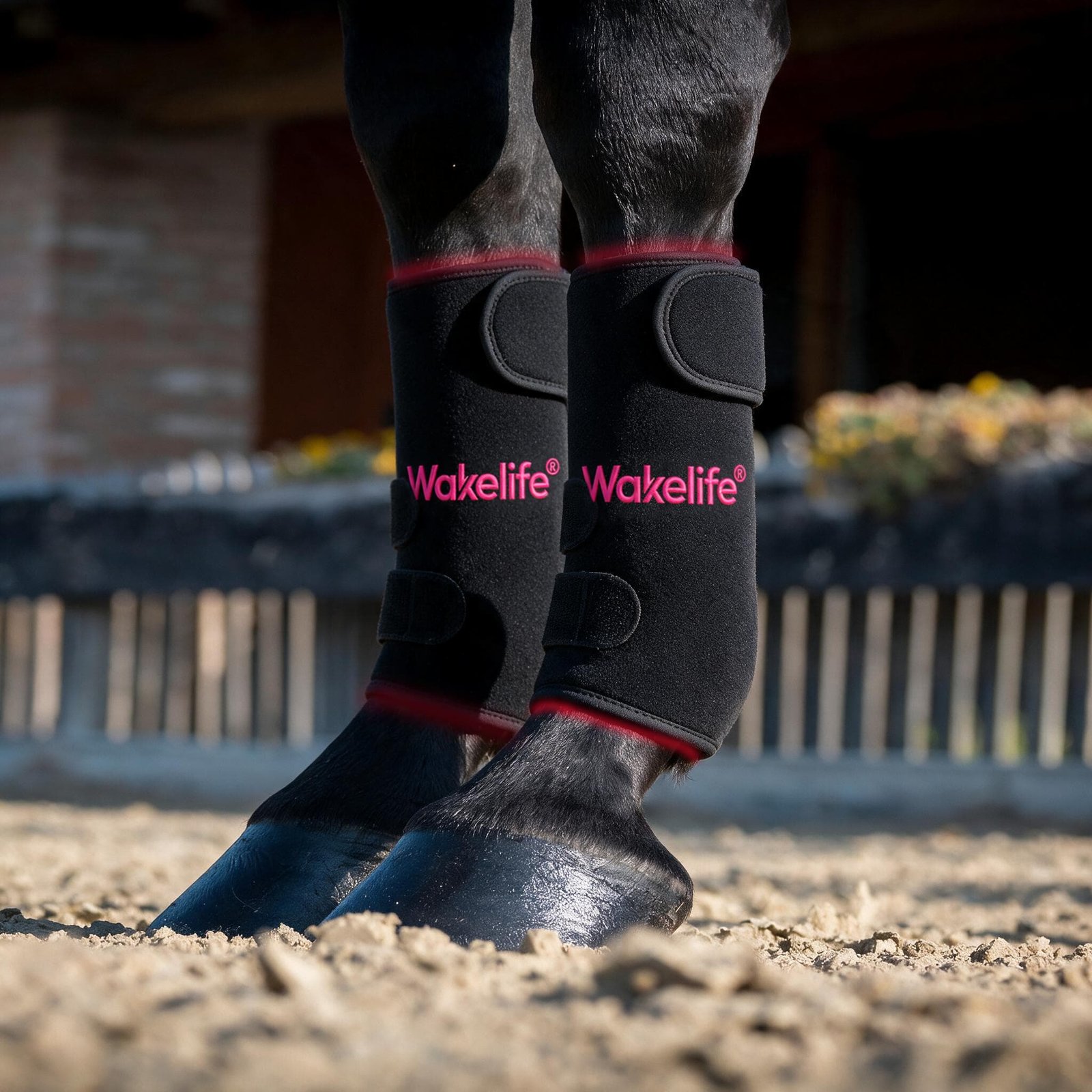

A Lower-Leg Wrap for Equine Ranges
Wrap Construction

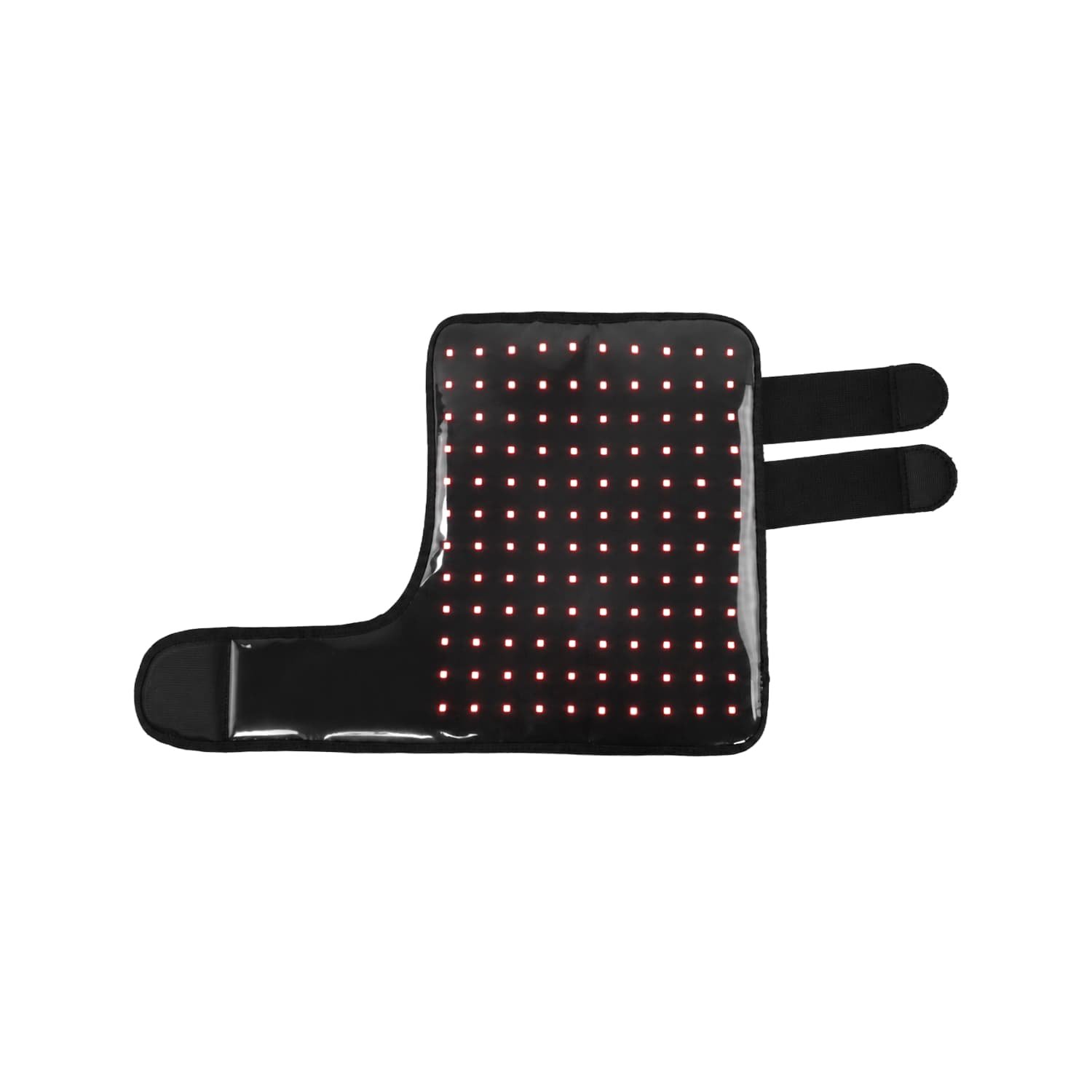

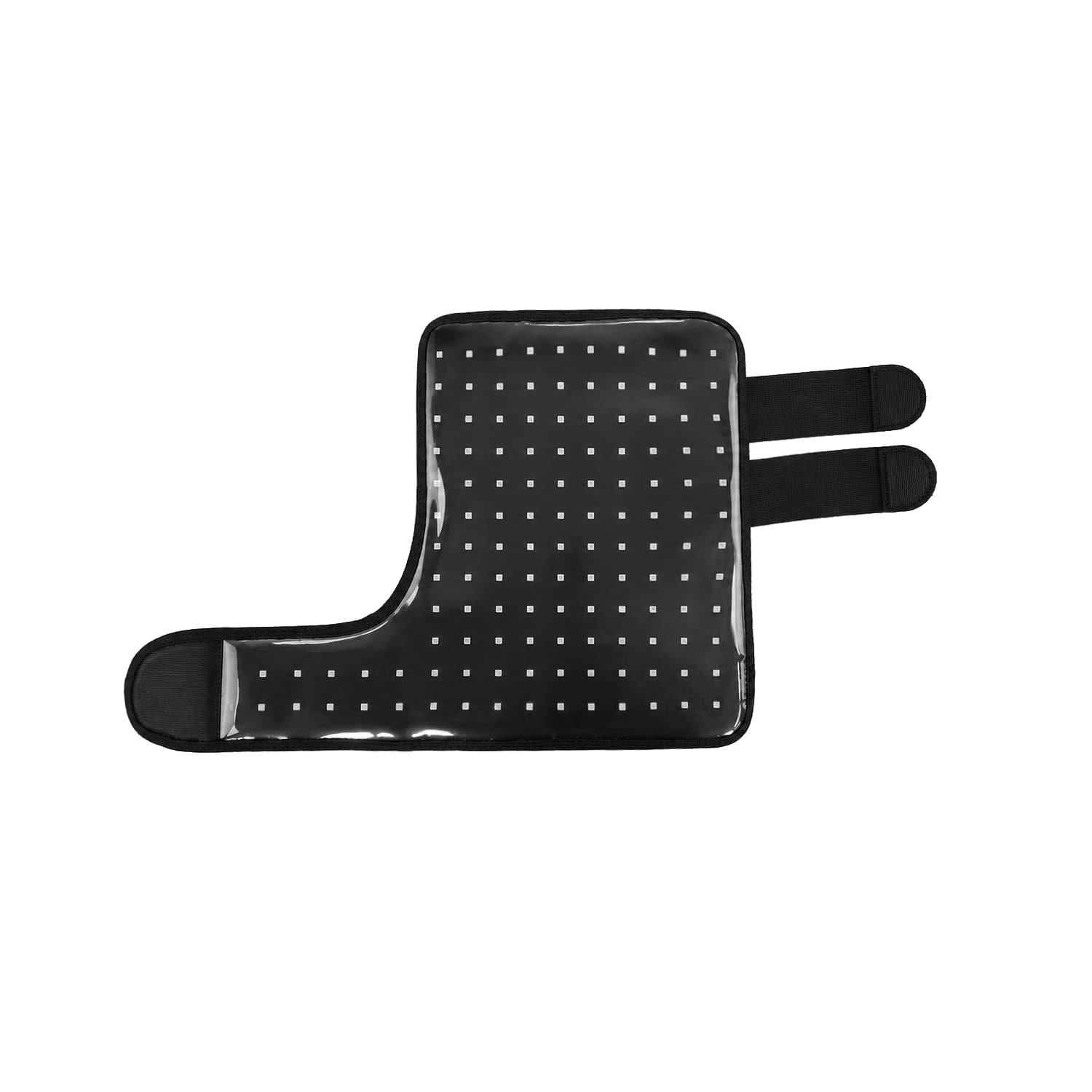

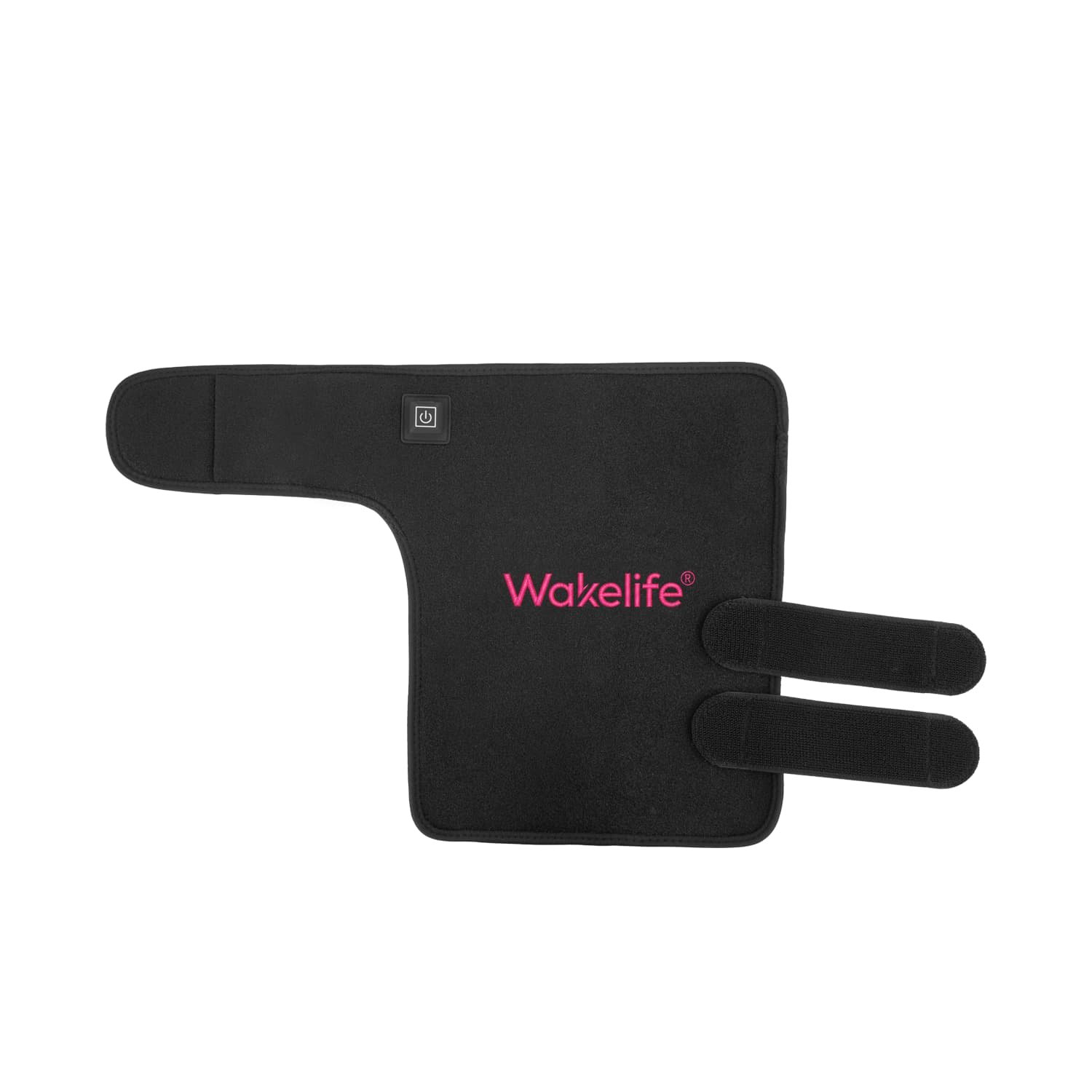

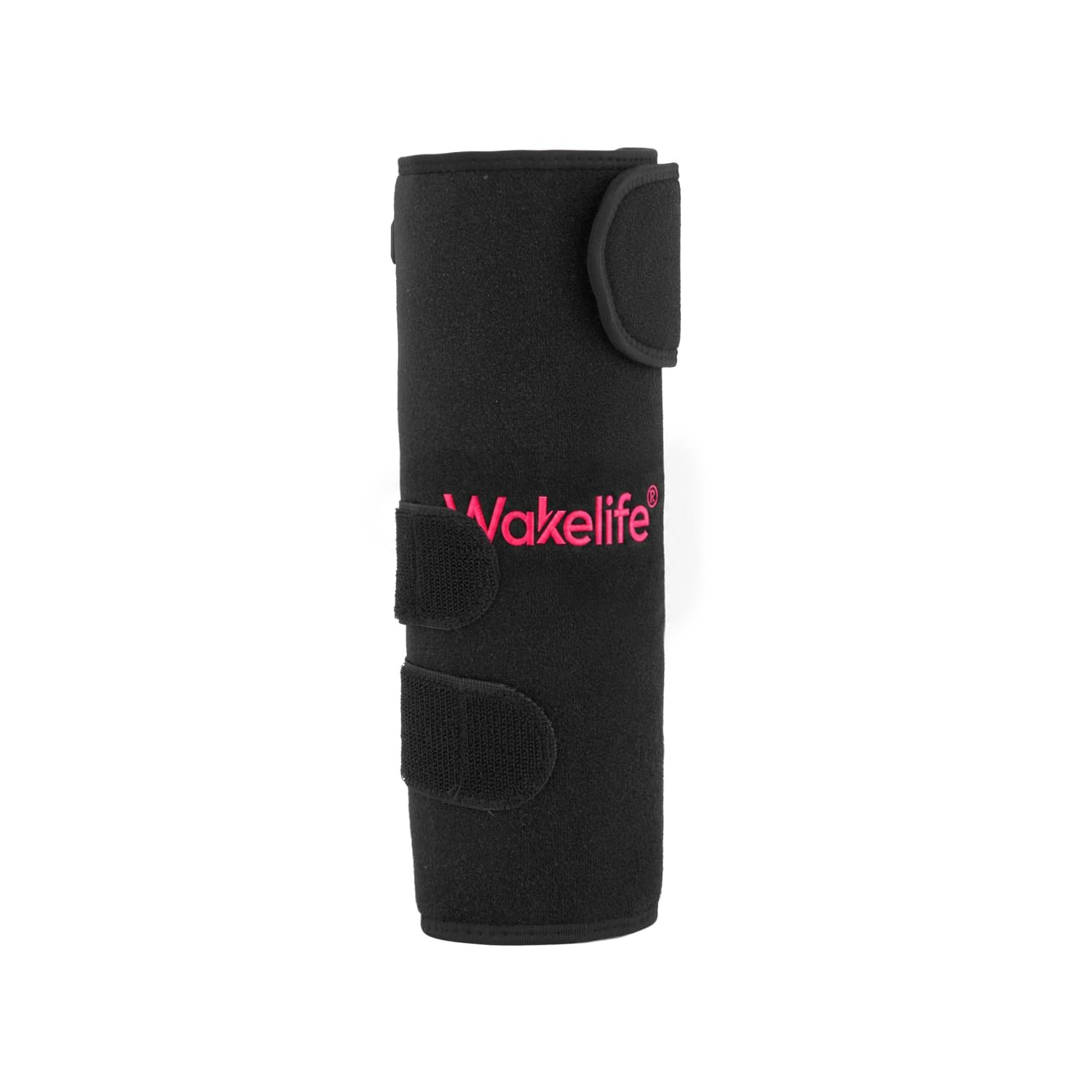

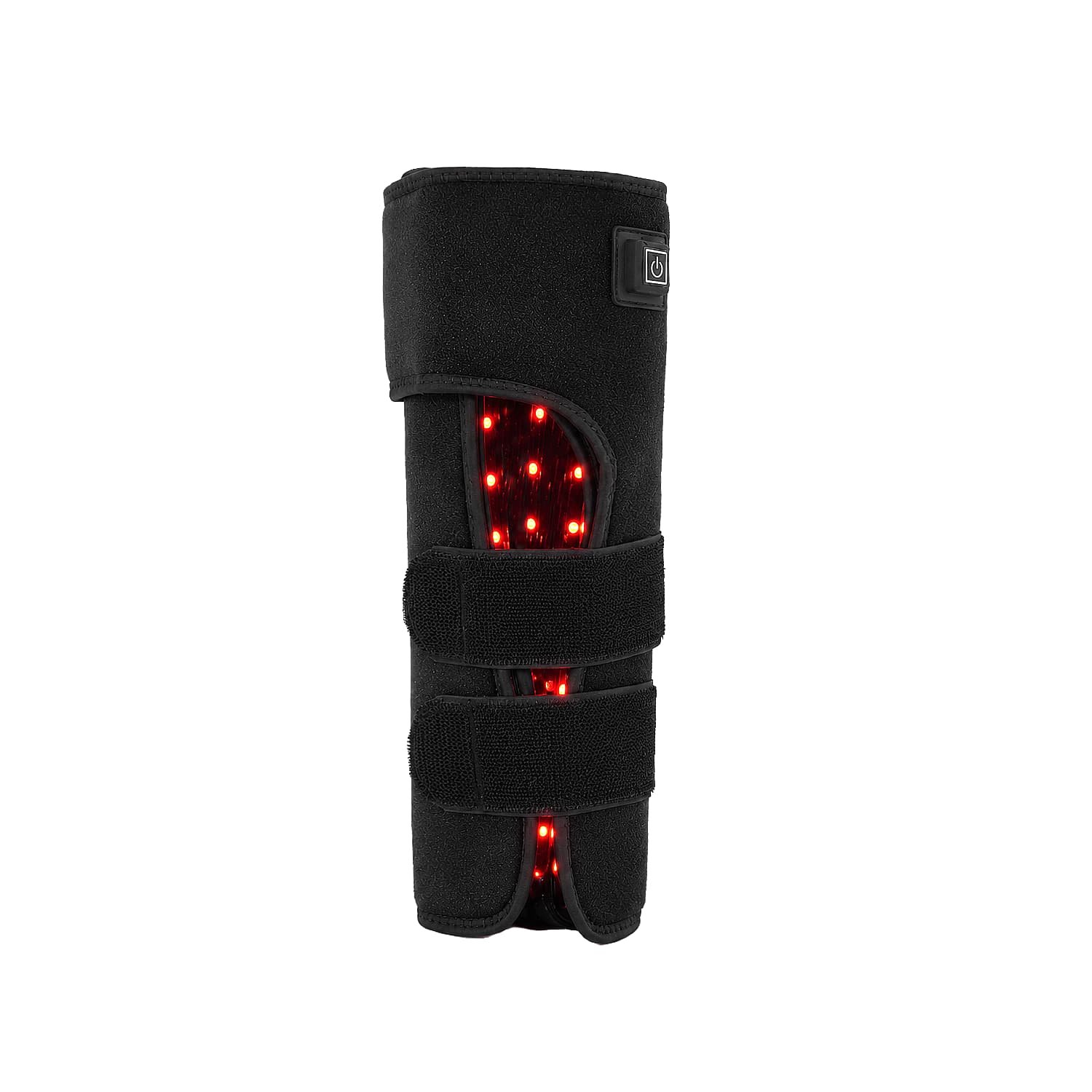

The D03 is a large wrap that follows the lower leg, with the LEDs on the inner face and a single control button on the outer face. It fastens with multiple hook-and-loop straps, and charging is through a USB-C port. During use the wrap runs on its built-in battery, with no connecting cable.
For a sample review, check the wrap shape, the strap arrangement and the light coverage together on the intended animal.
Coverage Options Across the Equine Range
D01, D03 and D05 cover different areas of the horse. Choose by the area your range needs to cover:
| D01 Hoof Wrap | D03 Leg Wrap | D05 Back Blanket | |
|---|---|---|---|
| Format | Curved wrap | Larger wrap with multiple straps | Blanket over the back |
| Coverage area | Hoof region | Lower leg area | Full back |
| During use | Cable-free; battery inside the wrap | Cable-free; battery inside the wrap | Powered by an external power bank |
| Sold as | Pair of two wraps | Pair of two wraps | Single blanket |
| Best for | Hoof-focused product lines | Wider lower-leg coverage | Full-back coverage products |
D03 Leg Wrap Larger wrap with multiple straps
D05 Back Blanket Blanket over the back
D03 Leg Wrap Lower leg area
D05 Back Blanket Full back
D03 Leg Wrap Cable-free; battery inside the wrap
D05 Back Blanket Powered by an external power bank
D03 Leg Wrap Pair of two wraps
D05 Back Blanket Single blanket
D03 Leg Wrap Wider lower-leg coverage
D05 Back Blanket Full-back coverage products

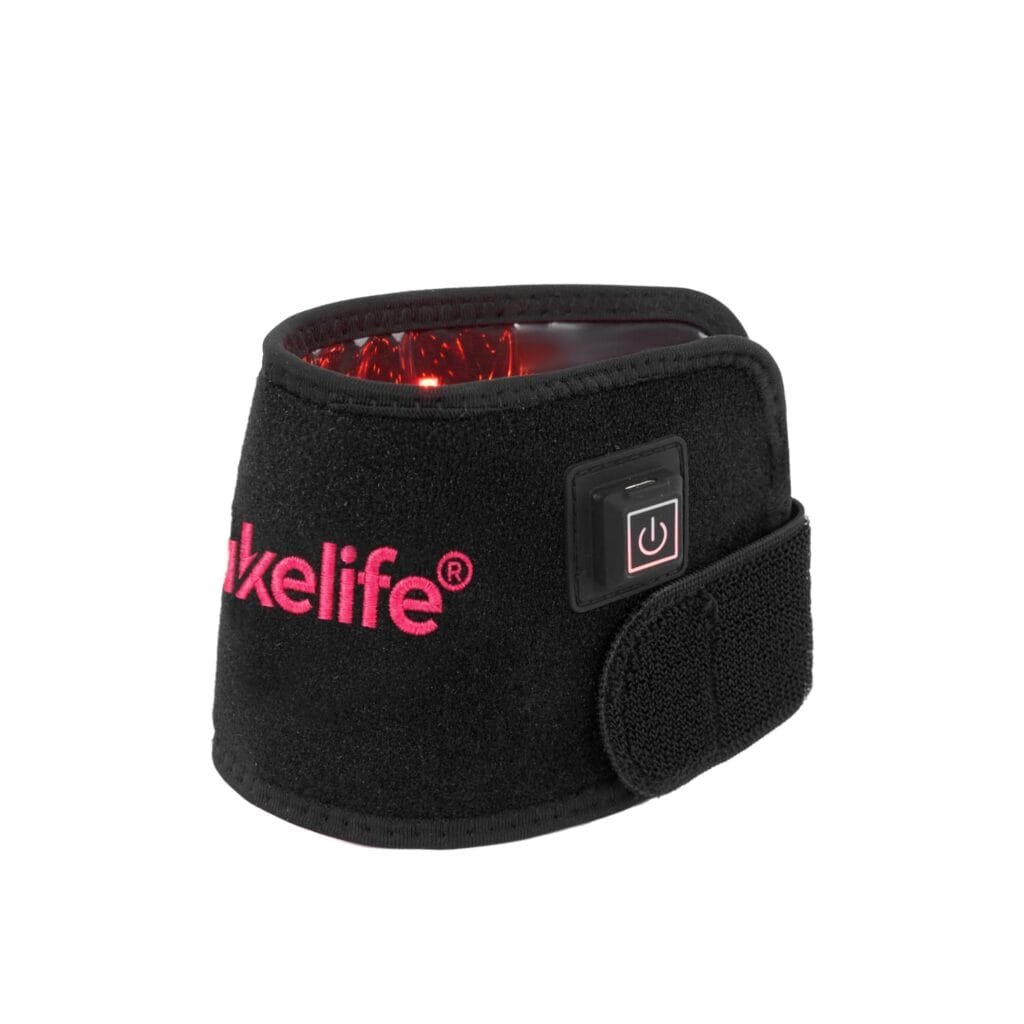

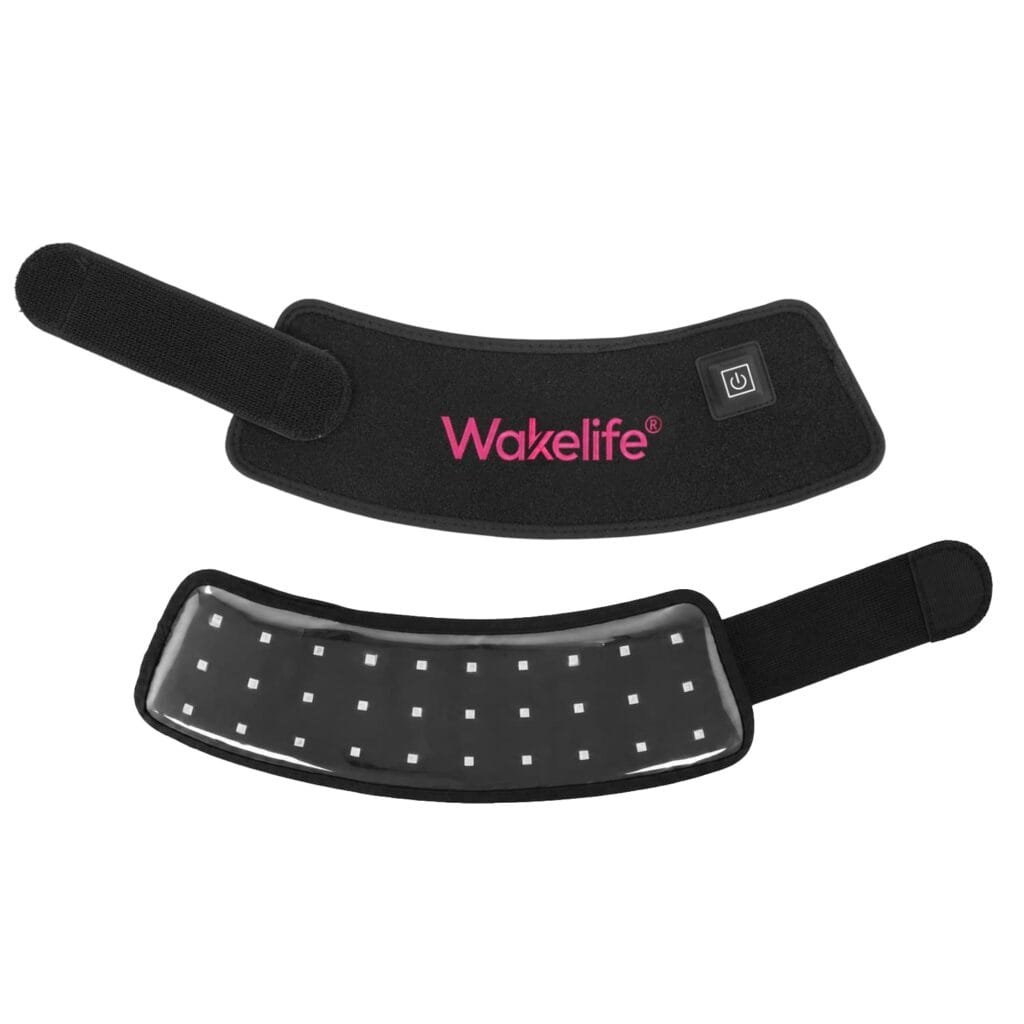

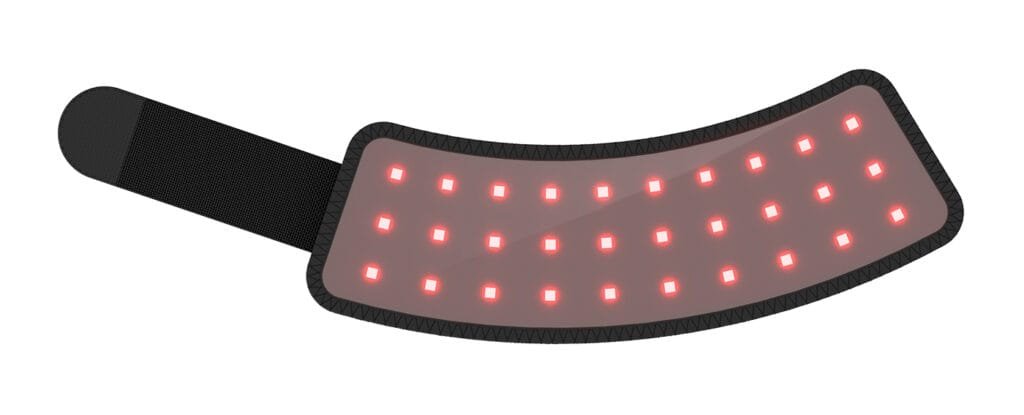

For the hoof-area format, see the D01 equine hoof wrap; for full-back coverage, see the D05 equine back blanket.
D03 Specifications and Controls
The following values come from the D03 product catalog. Confirm the configuration against the sample and order specification before bulk production.
| Specification | D03 |
|---|---|
| Product dimensions, L × W × H | 500 × 333 × 6mm (per single wrap) |

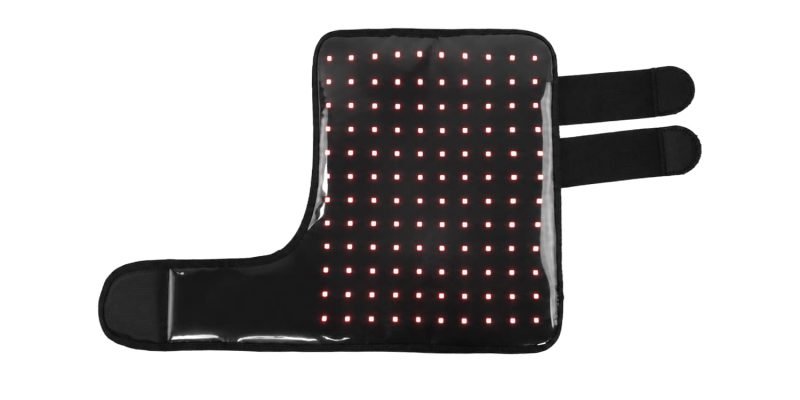

| LED count | 120 |
| LED package | 5050 three-chip SMD |
| Wavelengths | 660nm + 850nm combined; chip layout 1:2 |
| Power | Approx. 15W |
| Net weight | Approx. 0.32kg per single wrap |
| Irradiance (pending test) | Approx. 45mW/cm² — see note below |
| Material | Flame-retardant Oxford fabric (documentation available on request) |
Technical Notes: Irradiance is currently listed as approx. 45 mW/cm² and is pending final verification under defined test conditions. Product dimensions refer to the wrap itself and do not represent a fit range. Actual fit and final optical data should be confirmed during sample evaluation.
One Button. Three Light Modes.
Choose between continuous light and two pulse settings with one-button control.

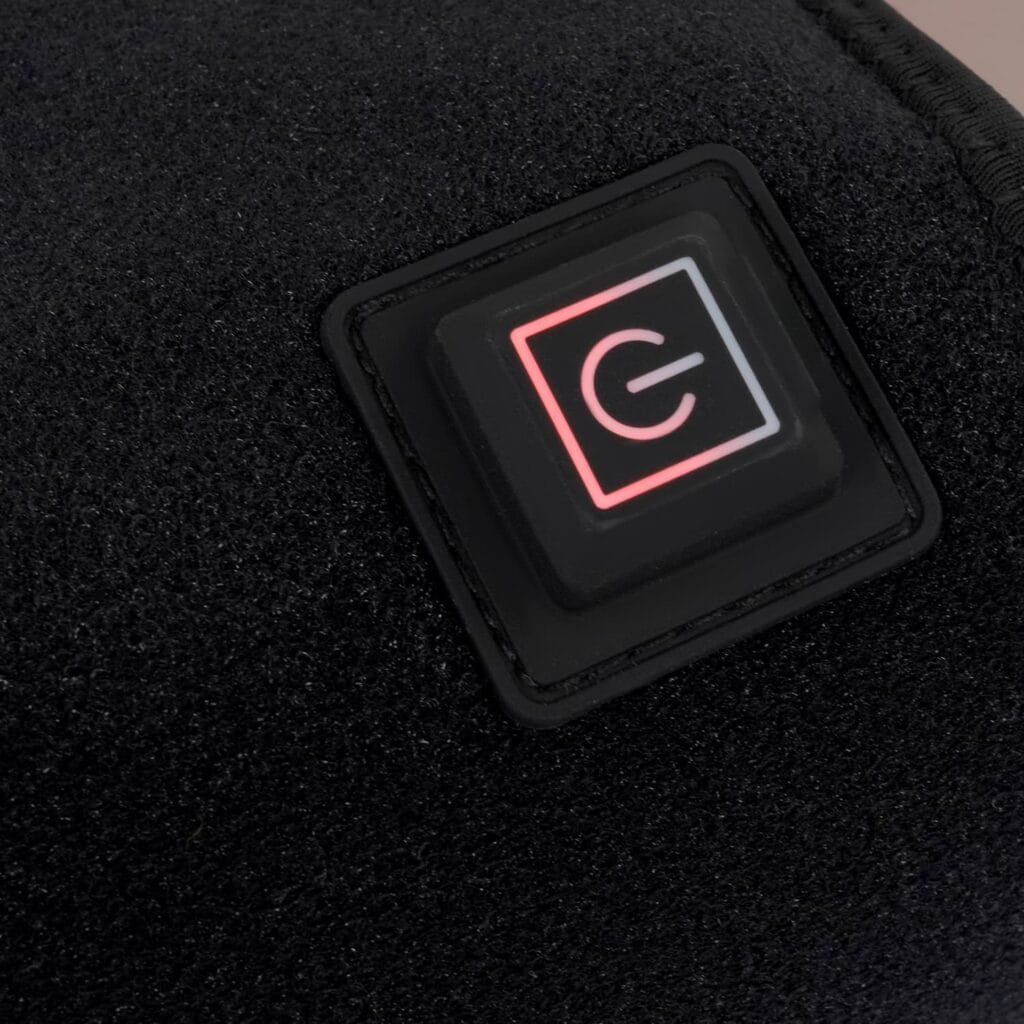

M1 — Continuous Light
660nm Red + 850nm NIR
Continuous dual-wavelength light output for straightforward everyday operation.
Indicator: Red

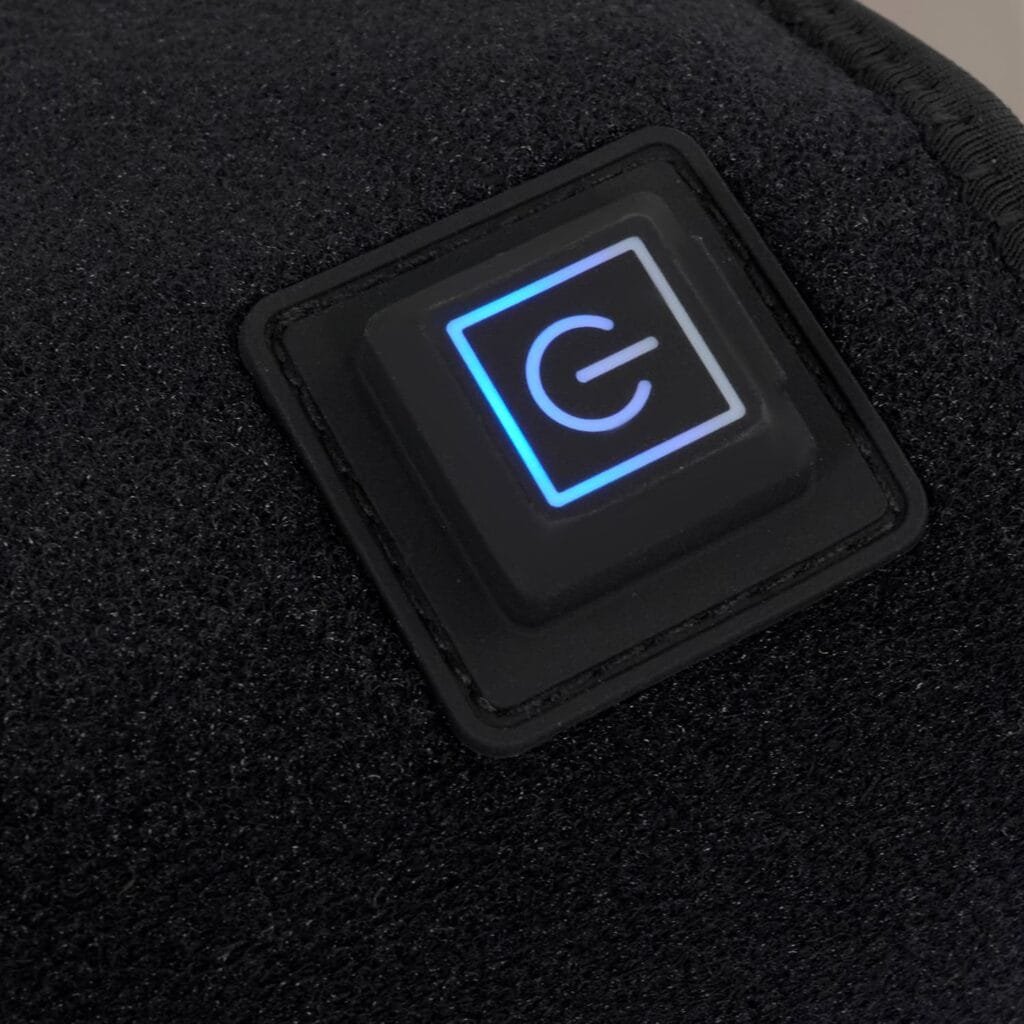

M2 — 10Hz Pulse
660nm Red + 850nm NIR · 10Hz
Dual-wavelength light with a 10Hz pulse setting for an alternative operating mode.
Indicator: Blue

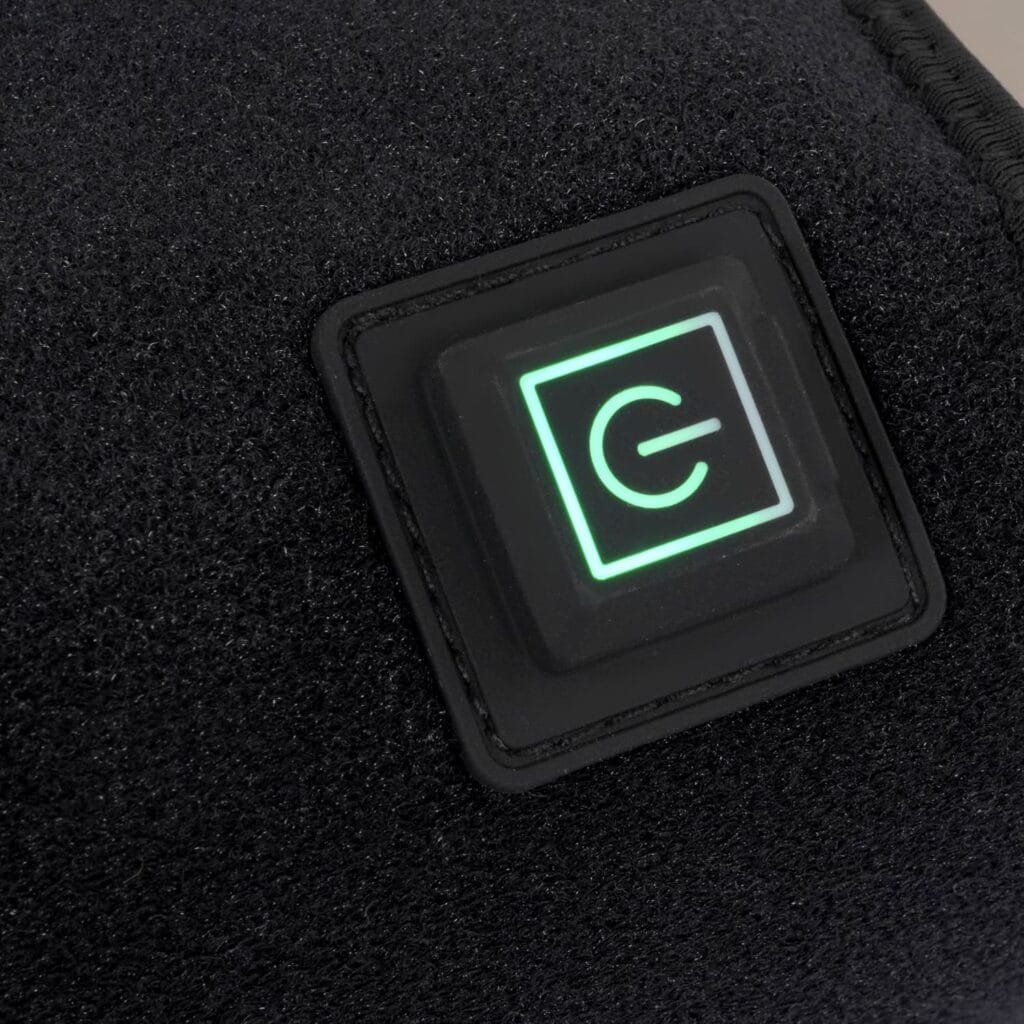

M3 — 40Hz Pulse
660nm Red + 850nm NIR · 40Hz
Dual-wavelength light with a higher-frequency 40Hz pulse setting.
Indicator: Green
Configuration and Controls
| Feature | D03 |
|---|---|
| Modes | M1: 660nm + 850nm; M2: adds 10Hz pulse; M3: adds 40Hz pulse |
| Mode control | One button; a short press cycles the modes; indicator light shows the active mode (red M1 / blue M2 / green M3) |
| Startup | Hold the button for two seconds to switch on; hold to switch off. On first startup the default mode is M1 |
| Shutoff | All modes default to a 15-minute countdown shutoff |
| Brightness | None; the only selectable difference between modes is the pulse setting |
| Battery | Built-in 3.7V 5000mAh polymer battery |
| Charging | USB-C port, compatible with standard 5V adapters; catalog charging time approx. 3.5 hours |
| Working voltage | 5V / 2A |
| Display and Bluetooth | Indicator light only; no display, no Bluetooth |
Technical Notes
The 1:2 ratio refers to the LED chip configuration only and does not represent a measured optical power ratio.
The stated charging time refers only to battery charging. Battery runtime has not yet been specified.
The 15-minute auto shutoff is a built-in device function and does not indicate a recommended usage duration.
Pulse settings are device operating modes only and are not intended as treatment, dosing, or veterinary recommendations
Prepare Your Sample or Private-Label Inquiry
Choose the starting point that matches your project:
| Your project | What to include in the inquiry |
|---|---|
| Evaluate the listed D03 configuration | Preferred configuration; destination country and sample quantity if known |
| Explore a branded version | Logo placement ideas, packaging and manual languages, sales channel and expected quantity range |
| Explore technical changes | Separate required changes to the LED layout, power or controls from optional preferences for feasibility review |
For a useful quote comparison, request the unit price and included components, with any branding, development and freight charges identified separately. Confirm MOQ for the selected configuration and any mixed configurations. Branding and technical changes require an agreed scope; the listed configuration is the reference for comparison.
Include your launch market early. Before approving an order, obtain written confirmation of the charging and power arrangement, labeling and available model documents, along with warranty coverage, exclusions and the process for reporting a faulty unit. These items belong in the purchasing agreement, alongside the approved sample and specification.
OEM & Private Label Options
Wakelife manufactures LED light therapy products under an ISO 13485-certified quality system. The D03 is available in the listed configuration under your brand, with branding options and any changes defined per project.
Branding areas to discuss
| Area | What is discussed at quotation |
|---|---|
| Branding | Logo placement on the wrap, strap, storage bag and retail box; printing or label options |
| Colour | Fabric colour options; custom colours or customer-supplied colour codes |
| Packaging | Retail box, printed sleeve or plain box; carton marking |
| Manual | Your brand, languages and artwork |
| Accessories | Strap length and storage bag style |
Changes that need a development review
- Changes to LED count, layout or wavelength mix
- Adding brightness levels, a display or an app
- Changes to the battery or charging system
- Changes to firmware defaults, such as start-up mode or shutoff time
- New wrap sizes beyond D03
- Additional certifications for specific markets
Branding areas and development changes are assessed per project and are not part of the listed configuration. Tell us required changes and optional preferences separately so feasibility, cost and lead time can be quoted clearly.
Frequently Asked Questions
What is the MOQ, and can I mix configurations?
Our MOQ is 50 sets for orders with custom logo. Mixed configurations are confirmed at quotation. Tell us your planned split and we will include it in the quote.
How long do samples and bulk production take?
Samples are typically ready in 3–7 days, and bulk production takes around 30 days. Exact timelines are confirmed with your order.
How long does the battery run?
Battery runtime is not specified in the catalog; the approx. 3.5-hour figure is charging time, not runtime. Evaluate runtime on sample units at your target settings before publishing runtime figures to your customers.
Can I change the wavelengths, LED layout or battery?
These are development changes rather than branding options. Describe the change and the expected quantity, and we will review feasibility, cost and lead time.
What certifications are involved?
Wakelife operates under an ISO 13485-certified quality system. Product-level documents for your destination market are confirmed before ordering.
