Description
Designed for Brands, Sellers, Distributors, and OEM Customers
C02 is built for business customers who want to enter or grow in the scalp care and hair wellness market with a differentiated LED wearable product.
Beauty & Wellness Brands
C02 can be added as a new product line extension alongside LED face masks, skincare devices, hair care products, or wellness devices. It gives brands a ready-to-market LED scalp care solution without building a new device from scratch.
Amazon & Shopify Sellers
C02 offers a more lifestyle-friendly alternative to traditional helmet-style hair care devices. The cap format, multi-mode functions, and retail-ready packaging potential make it easier to position for e-commerce and direct-to-consumer sales.
Distributors & Wholesalers
C02 is available factory-direct for B2B sales, regional distribution, and product portfolio expansion. It provides a scalp care category entry point for distributors who want to add LED devices to their existing product range.
OEM/ODM Customers
The modular structure of C02 allows more flexibility in hat style, branding, packaging, wavelength configuration, and product positioning. Customers with specific development requirements can use C02 as the foundation for a fully customized product.
Why Brands Choose C02
Modular LED Design

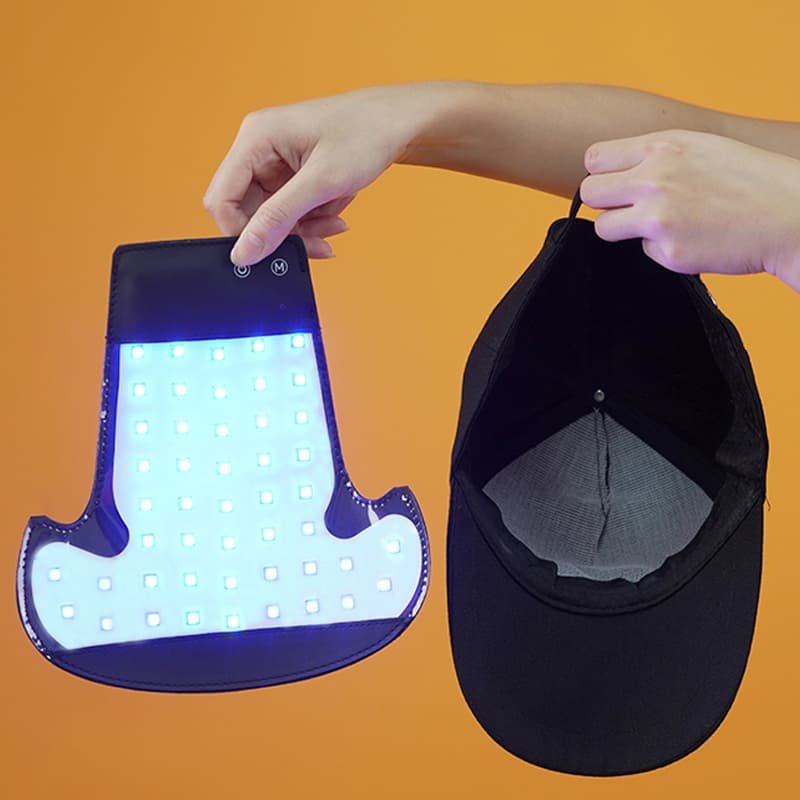

C02 uses a removable LED light panel that can be integrated into different hat styles. This modular structure gives brands more flexibility to create different product concepts without developing a full device from the ground up. One core LED platform. Multiple product appearances.

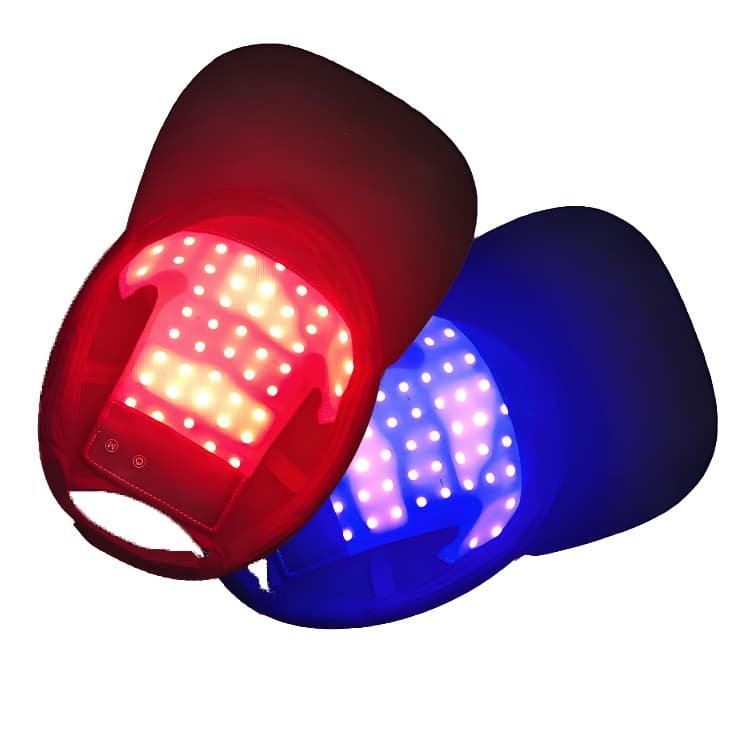

Three-Wavelength System
C02 supports 460nm blue light, 630nm red light, and 850nm near-infrared light. The multi-wavelength configuration allows brands to position the product across scalp care, hair wellness, and daily at-home hair care routines — with four selectable light modes to support different product experiences.
Wearable and Portable
C02 is available factory-direct for B2B sales, regional distribution, and product portfolio expansion. It provides a scalp care category entry point for distributors who want to add LED devices to their existing product range.
Full Technical Specifications
| Item | Specification |
|---|---|
| Product Model | C02 |
| Product Type | Modular LED Hair Growth Cap |
| Composition | Baseball Cap + LED Hair Growth Device |
| LED Panel Size | 228 × 205 × 3mm (battery area 9mm), ±0.5mm |
| Weight | LED Device: 83.7g / Cap + Device: 162.1g |
| LED Beads | 5050 LED, 48pcs |
| Wavelength | 460nm : 630nm : 850nm = 1:1:1, ±5nm |
| Light Modes | Mode 1–4 (see above) |
| Timer | 10 minutes |
| Default Mode | Mode 1, 10-min timer |
| Battery | 650mAh, 603035, 3.7V Polymer |
| Battery Life | ≥60 min (max power) |
| Charging Time | ≤1.5 hours |
| Input Voltage | 5V / 1A |
| Irradiance | ≥25 mW/cm² |
| Charge Cut-off | 4.1–4.2V |
| Discharge Cut-off | 3.0V |
| Single Package | 495 × 120 × 60mm, ±0.5mm |
| Carton Size | 530 × 150 × 630mm |
| Carton Qty | 20 pcs/carton |
| Standards | IEC 60601-1 / -1-6 / -1-11 / -2-83 / -1-2 / IEC 62471 / IEC 60825 |
Four Working Modes for Flexible Scalp Care Routines
C02 is designed with four selectable light modes. Each mode combines different wavelengths to support various product experiences and allow brands to create a more complete LED scalp care story.

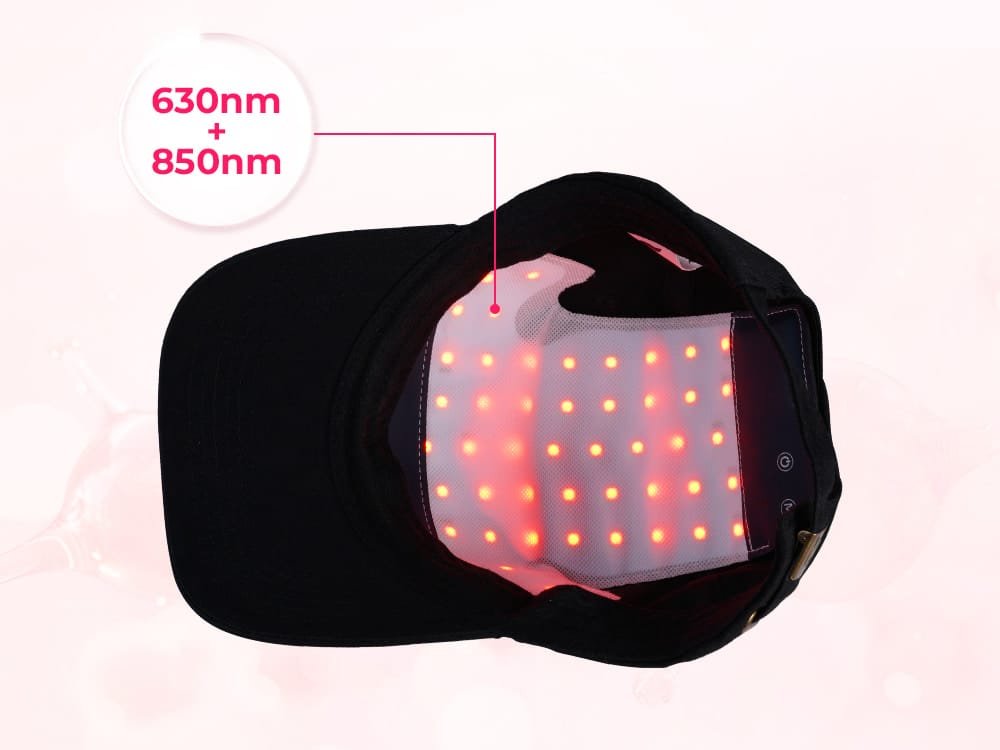

Mode 1 — 630nm + 850nm
Red light and near-infrared light combination. Designed as the everyday scalp care and hair wellness mode for daily at-home routines. This is the default mode when the device is powered on.

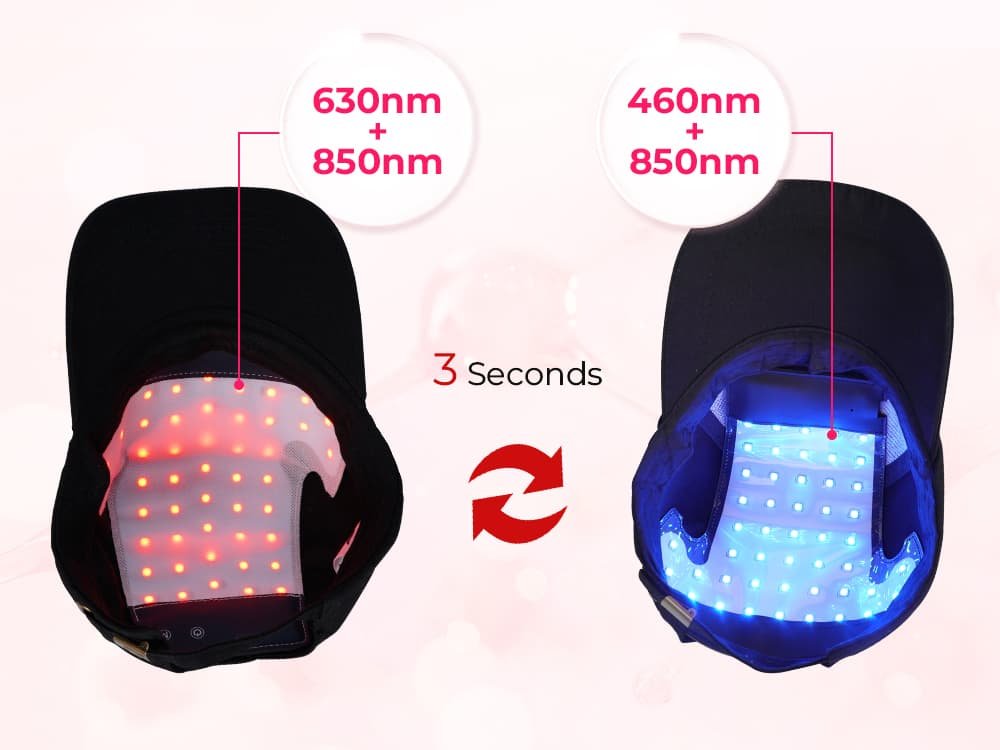

Mode 2 — 630nm + 850nm / 460nm + 850nm Alternating
This mode alternates between the 630nm + 850nm and 460nm + 850nm combinations every 3 seconds. It creates a more dynamic multi-wavelength product experience for brands that want to highlight advanced LED technology in their marketing.

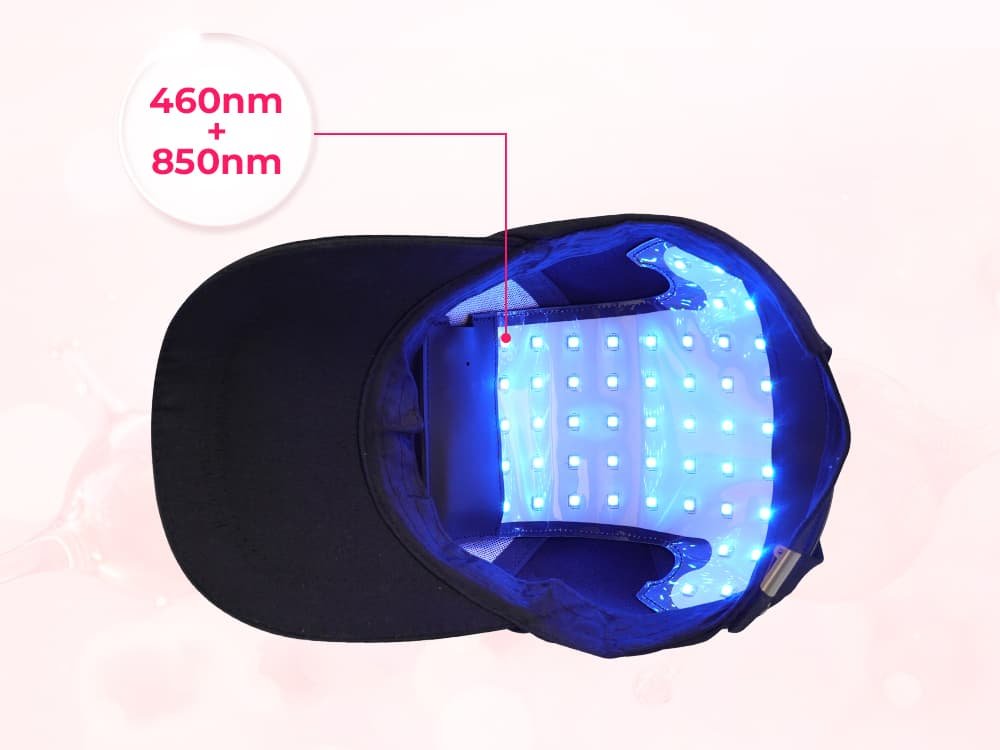

Mode 3 — 460nm + 850nm
Blue light and near-infrared light combination. Offers a more differentiated LED mode that allows brands to position C02 across a broader scalp care and light therapy narrative.

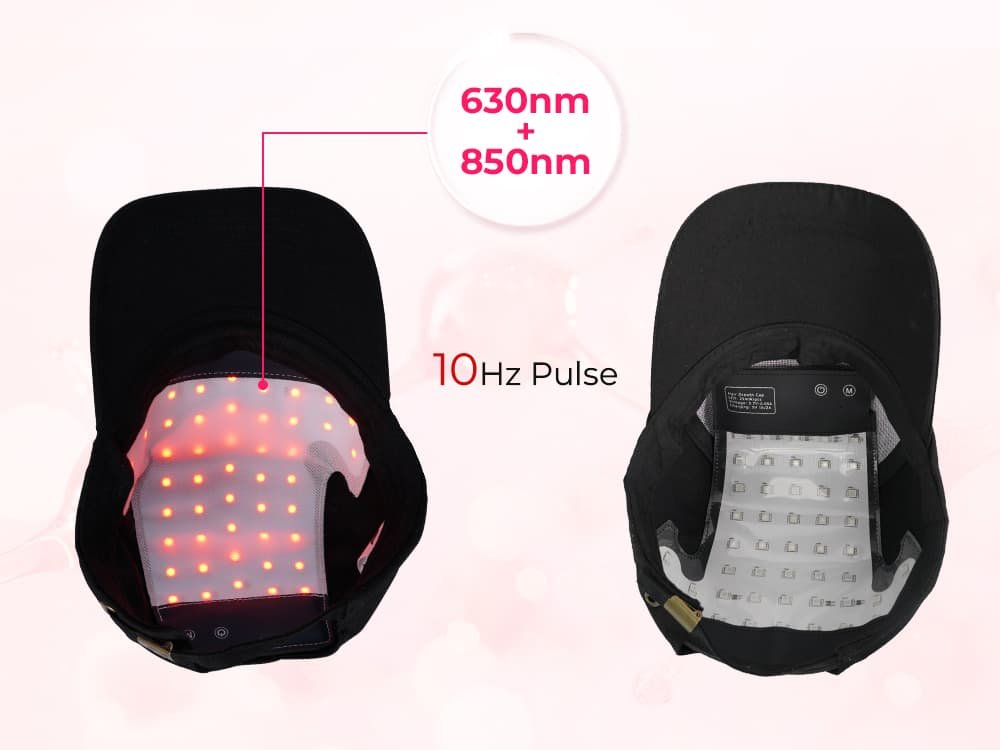

Mode 4 — 630nm + 850nm 10Hz Pulse
A pulsed light mode using red and near-infrared wavelengths at 10Hz. Designed for brands that want a stronger technology-driven product feature and a more advanced light mode option in their product lineup.
Each session runs for 10 minutes. The device shuts off automatically when the countdown ends. A reminder tone confirms each button press during operation.

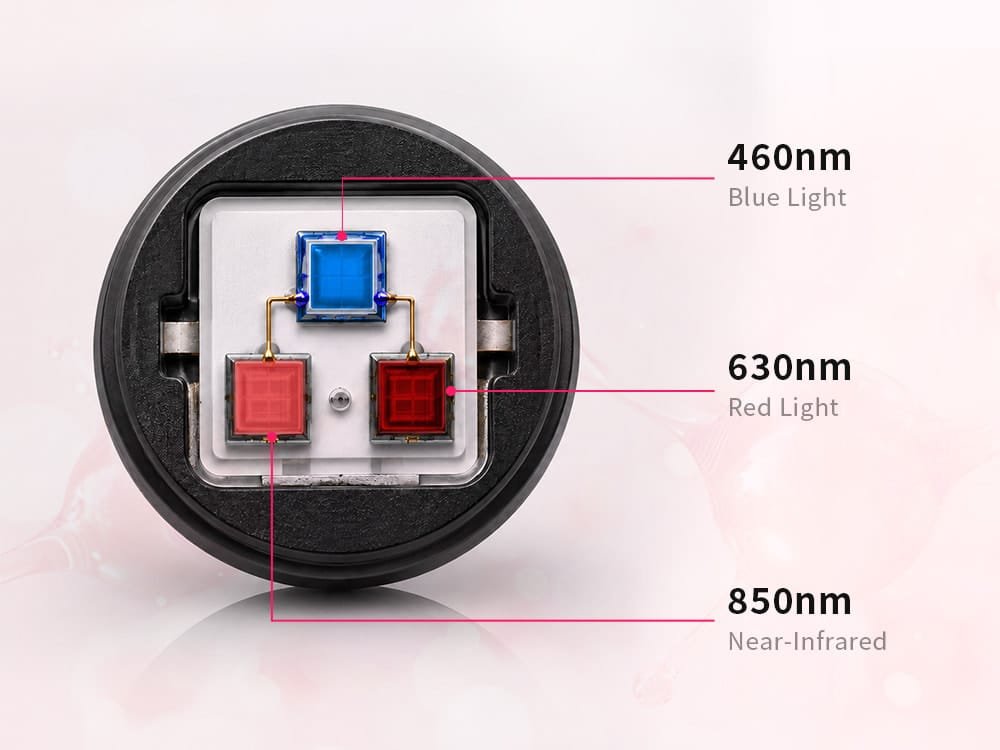

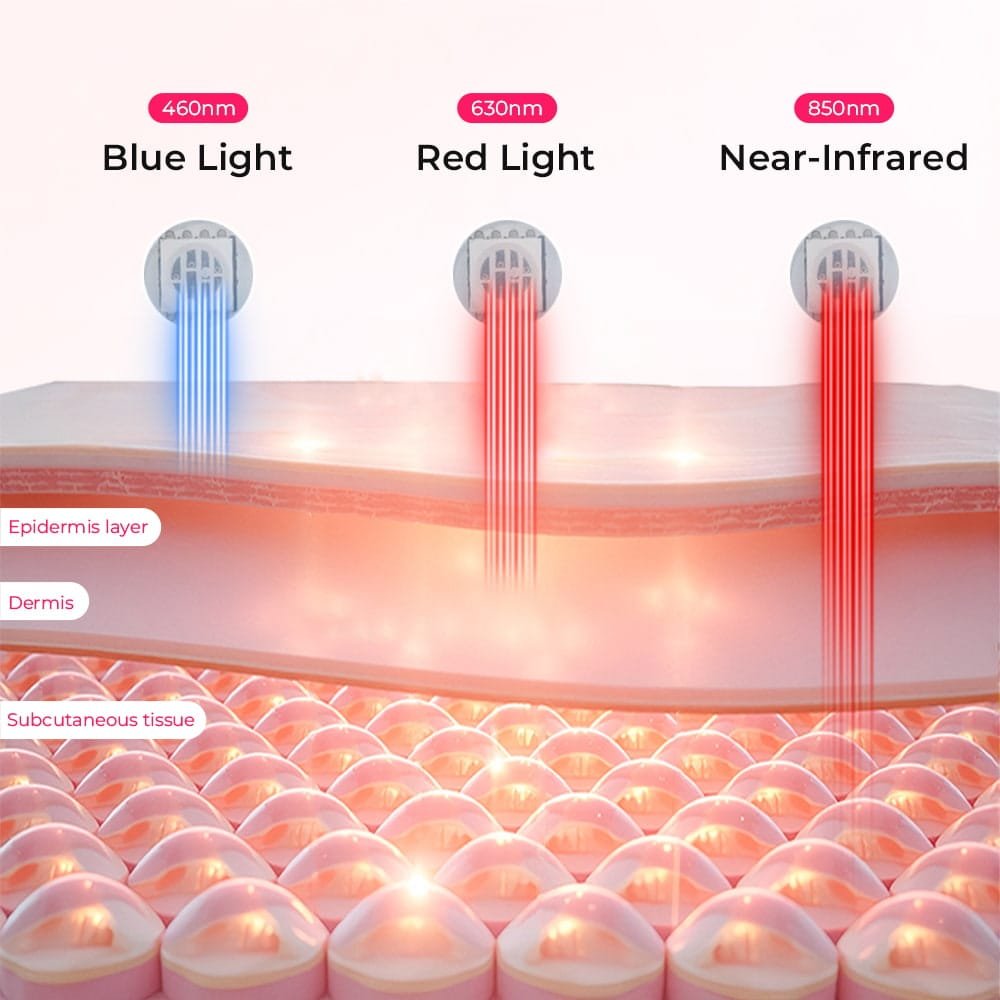

Understanding the Three Wavelengths
460nm Blue Light
460nm blue light gives C02 a differentiated multi-wavelength feature that supports a broader scalp care product positioning. It is suited for brands that want to offer a more complete LED light mode system rather than a single-wavelength device.
630nm Red Light
630nm red light is commonly used in LED beauty and wellness devices. In C02, it is positioned for scalp care routines, hair wellness support, and everyday at-home hair care use. It forms the base of the most widely used mode combinations.
850nm Near-Infrared Light
850nm near-infrared light is widely incorporated into LED wellness products. In C02, it is paired with both red and blue light across all four modes to create multi-wavelength combinations that support a stronger product story.

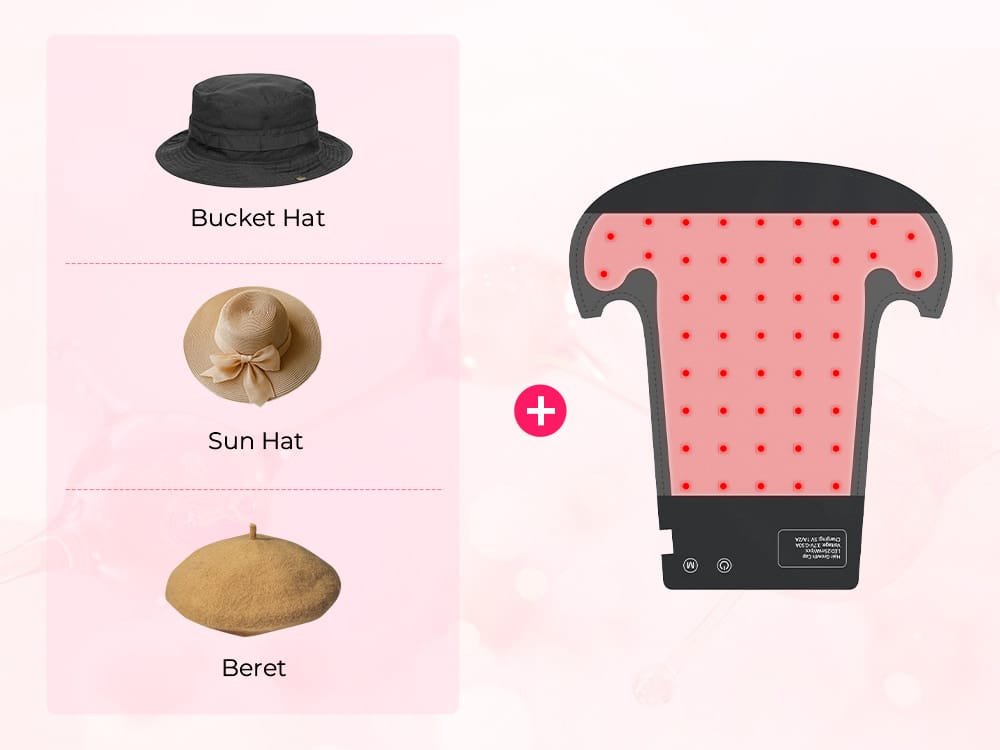

One LED Module. Multiple Hat Concepts.

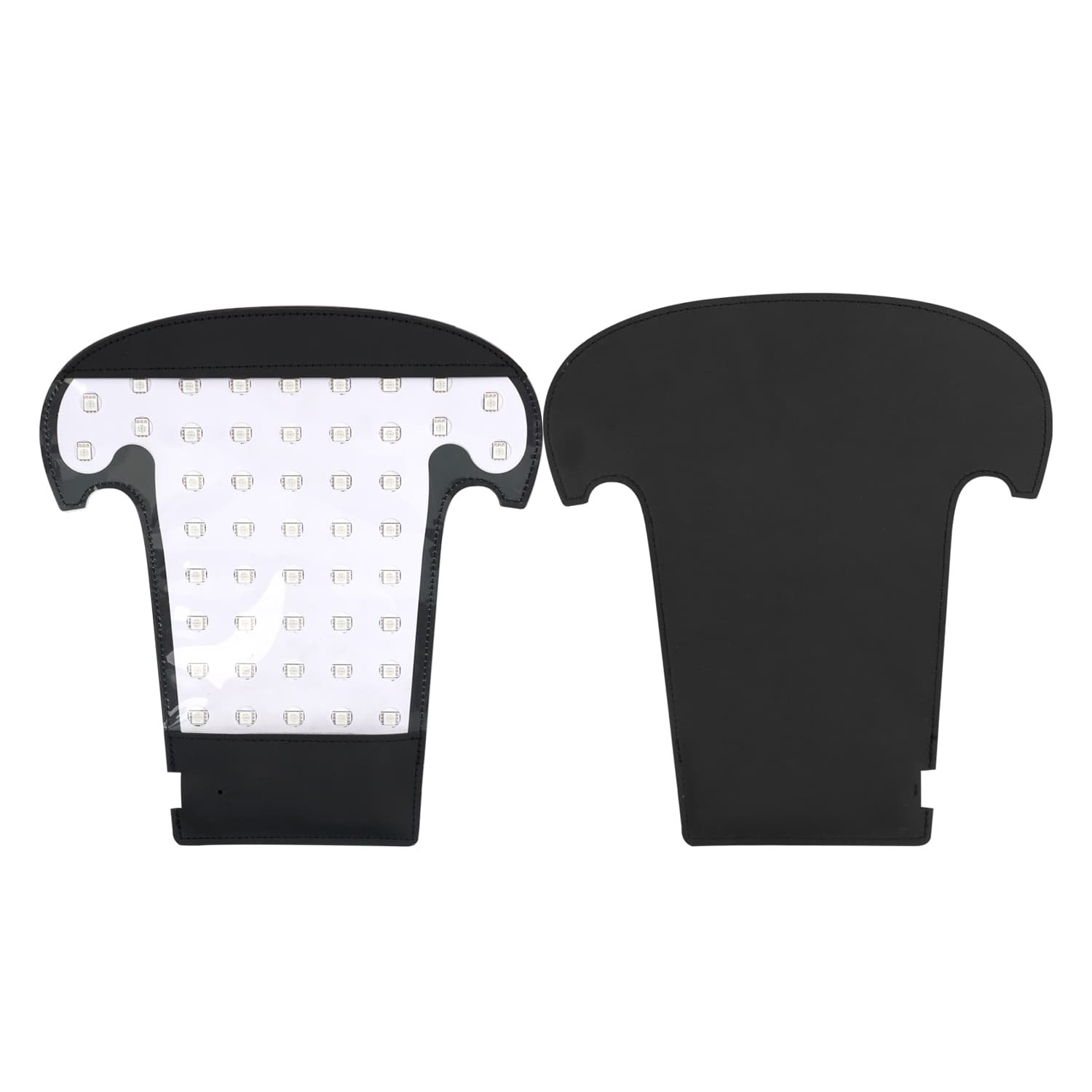

C02 is not limited to a single cap format. The removable LED light panel can be adapted to different hat styles, giving brands the flexibility to create more than one product concept from the same core LED technology.

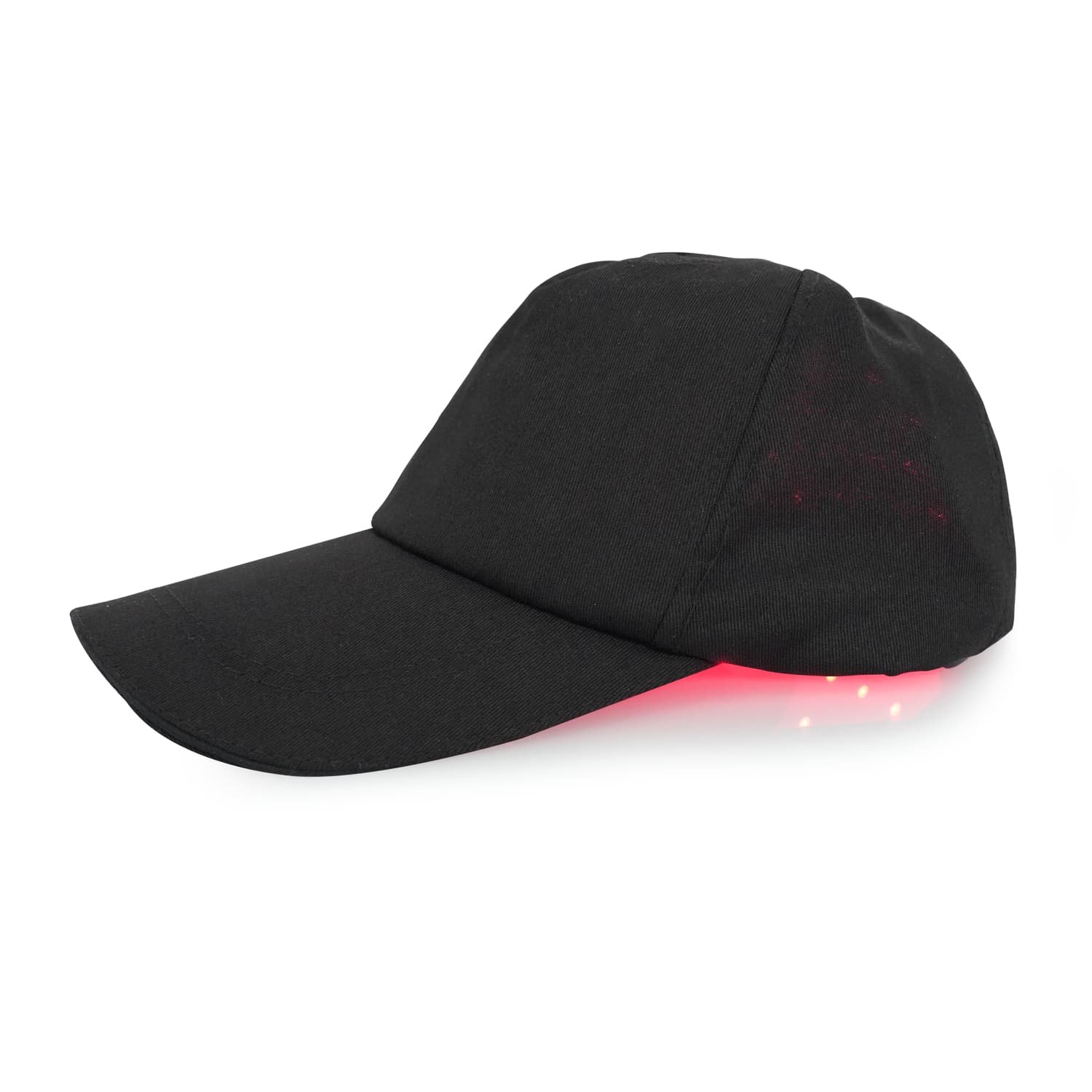

The standard baseball cap style is simple, familiar, and suited for everyday use. Bucket hat, sun hat, and beret-style formats can support more lifestyle-oriented, fashion-forward, outdoor, or female beauty market positioning.
This modular approach is especially valuable for private label and OEM/ODM customers. One LED platform. Multiple product appearances. Multiple brand stories.
Hat style options and compatibility are subject to confirmation during the project scope discussion. Contact our team to review available formats for your target market.
Clean Controls. Simple Operation.
C02 is designed with a straightforward control layout that requires no learning curve. The product includes two buttons, an LED indicator, and a Type-C charging port.
Power Button — Long press for 3 seconds to turn the device on. Long press again for 3 seconds to turn off.
Mode Button — Short press to cycle through the four available light modes in sequence.
LED Indicator — Red flashing during charging. Solid red when fully charged. Red flashing when battery is low.
Type-C Charging Port — Standard Type-C connection for easy daily charging.
Default mode on startup: Mode 1 (630nm + 850nm), 10-minute timer.
A reminder tone sounds with each button press.
The device shuts off automatically when the 10-minute session ends.
The device does not operate while charging.
Complete Package for Retail and Wholesale Projects
C02 can be supplied as a complete product package suitable for private label, wholesale, and OEM/ODM programs. The standard package includes the LED hair growth cap, removable LED light panel, USB charging cable, product guide or user manual, and packaging box.
For brand customers, the package contents, packaging structure, design language, market language, and presentation format can be adjusted based on your sales channel, retail positioning, and product launch requirements.
Exact package contents and packaging specifications should be confirmed during the project scope discussion.
OEM/ODM Development
For customers who need a more differentiated product, C02 supports full OEM/ODM development. Customization scope can cover hat style, LED panel configuration, wavelength combination, LED bead selection, product structure, packaging format, and user experience details.
① Private Label
Logo application, retail packaging design, product guide customization, market-specific positioning support
② OEM/ODM Development
Hat style, LED configuration, wavelength combination, LED bead selection, product structure, packaging format
③ Flexible Market Positioning
Hair wellness / Scalp care / Beauty device retail / Salon distribution / Amazon FBA / Shopify DTC / Regional wholesale
Why Partner with Wakelife?
Wakelife Beauty is a China-based LED light therapy device manufacturer founded in 2015. We serve global beauty, wellness, and healthcare brands through private label, OEM, and ODM manufacturing programs. Our production capability supports both low-volume market entry and larger-scale product development — making us a suitable partner for new sellers, growing brands, and established companies.
| Est. 2015 | Over 10 years in LED light therapy manufacturing |
| Certification | FDA, CE, FCC, ROHS, ISO 13485 |
| 12+ | Production lines |
| 260+ | Employees |
| 50+ | R&D engineers |
| 120+ | Patents |
| 180,000 | Monthly production capacity (units) |
C02 — Frequently Asked Questions
Can C02 be customized for our own brand?
Yes. C02 is designed for private label and OEM/ODM projects. Wakelife can support brand logo application, packaging design, user manual customization, and product presentation based on your target market and sales channel.
Is C02 suitable for Amazon, Shopify, or distributor sales?
Yes. C02 is suitable for Amazon sellers, Shopify brands, beauty device companies, hair care brands, wellness brands, and regional distributors. Its wearable cap design, modular LED panel, multi-mode light settings, and retail-ready packaging potential make it suitable for both online and offline product launches.
What are the light modes and wavelengths of C02?
C02 supports 460nm blue light, 630nm red light, and 850nm near-infrared light. The available modes include 630nm + 850nm, 460nm + 850nm, alternating mode, and 630nm + 850nm 10Hz pulse mode. Final configuration can be confirmed based on your product positioning and market requirements.
What certifications and compliance support does Wakelife provide?
Wakelife supports quality and compliance requirements for global B2B customers. Our manufacturing and product compliance system includes ISO 13485, FDA, CE, FCC, RoHS, and IEC 60601. Certification scope may vary by product model, market, and order requirements, so we recommend confirming the applicable documents before your product launch.
